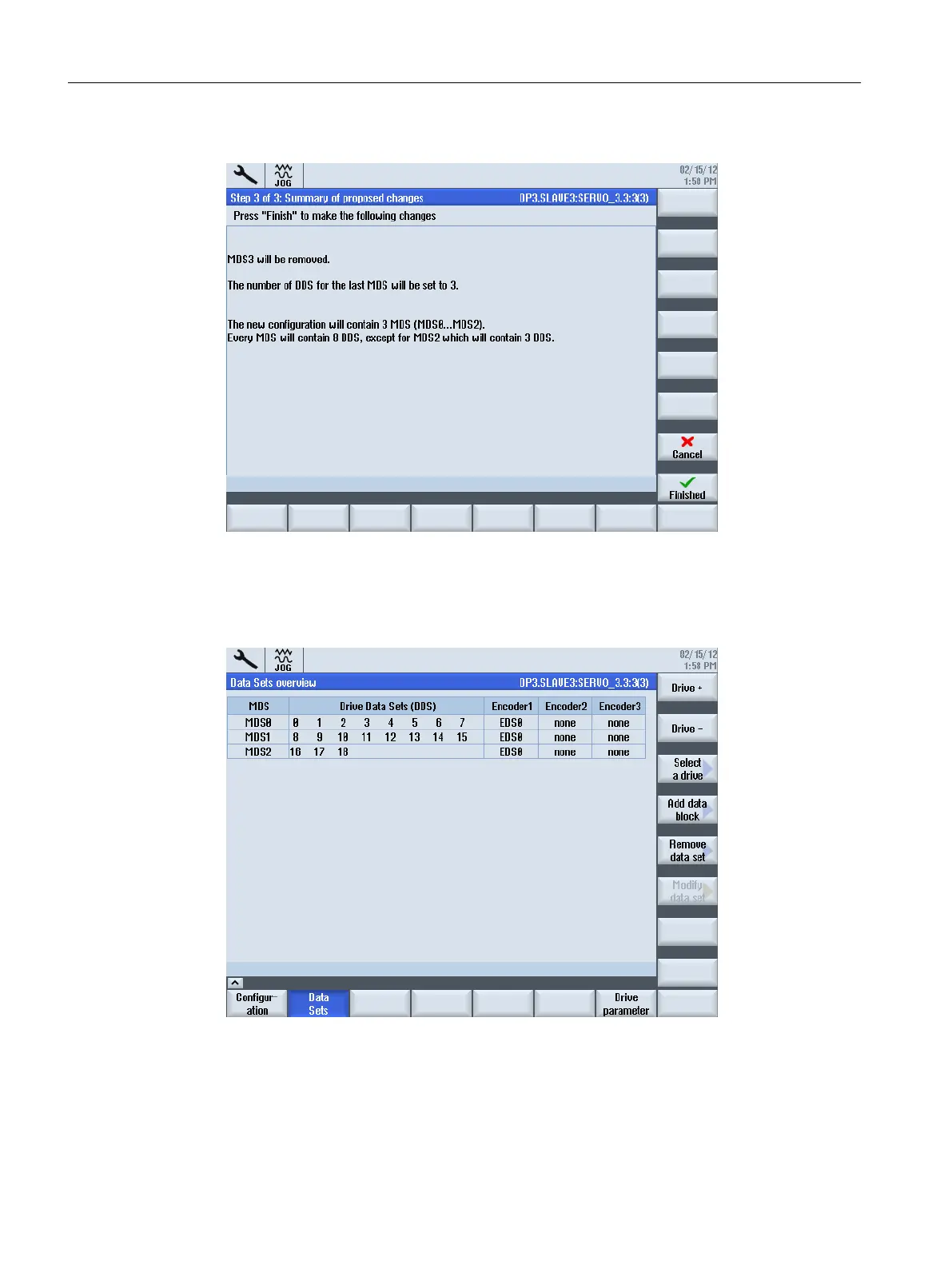

3. Press "Next step >".
"Cancel" terminates this process and the data set overview with MDS0 ... MDS3 is
displayed.
4. Press "Finish >" to accept the changes.
The data is written to the parameters. The results are then displayed:
When you exit this dialog, press "Yes" to confirm the prompt to save the data to the non-volatile
memory.
Commissioning the drive
5.6 Configuring data sets
CNC commissioning
164 Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
