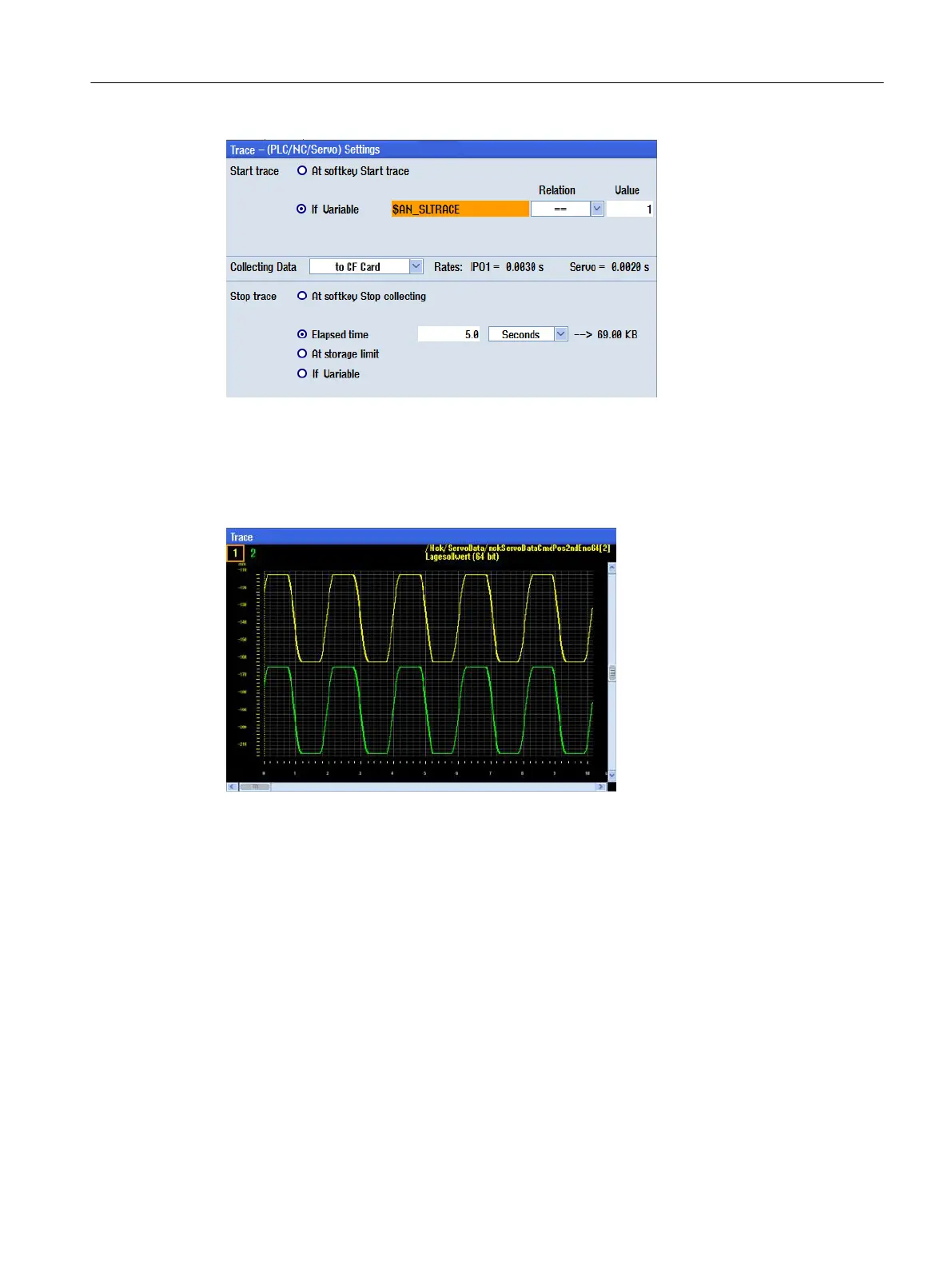

Trace result
The axis moves and the selected signals are monitored for five seconds. The result is then
displayed:
Setting the trace scale
It is necessary to
view that part of the trace in which the axis reaches the position setpoint. To
view this in detail, set the trace scale: "Display trace" softkey → "Scale" softkey
The following example shows the setting of the scale to view the axis positioning at -110 mm.
The entered values produce a 100-micrometer window around the target position of -110 mm.
Depending on the used machine/axis, a different scale may be necessary.
If necessary, the X minimum/maximum values can also be adapted:
Tuning
6.3 Optimizing the axis jerk
CNC commissioning
Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3 187

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
