"Start trace" softkey → <RESET> → <CYCLE START>:

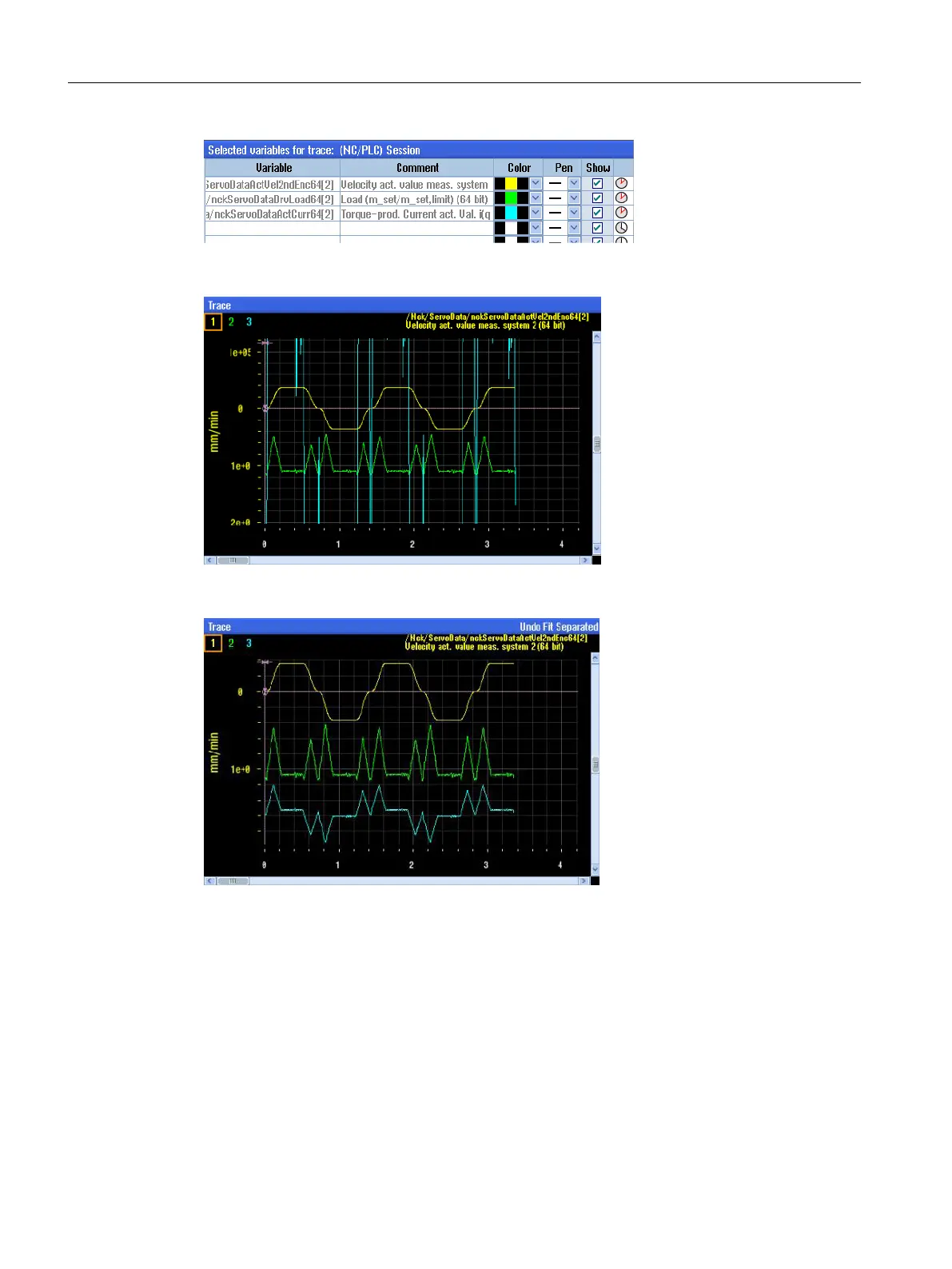

The three traces are displayed together; press the "Adapt all" softkey:
To recognize the maximum values of the three traces, press the "Cursors" softkey and position
it on the associated
trace to mark the maximum values: "Cursors" softkey → "Cursor A" softkey.
Tuning
6.4 Torque load
CNC commissioning
192 Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3
