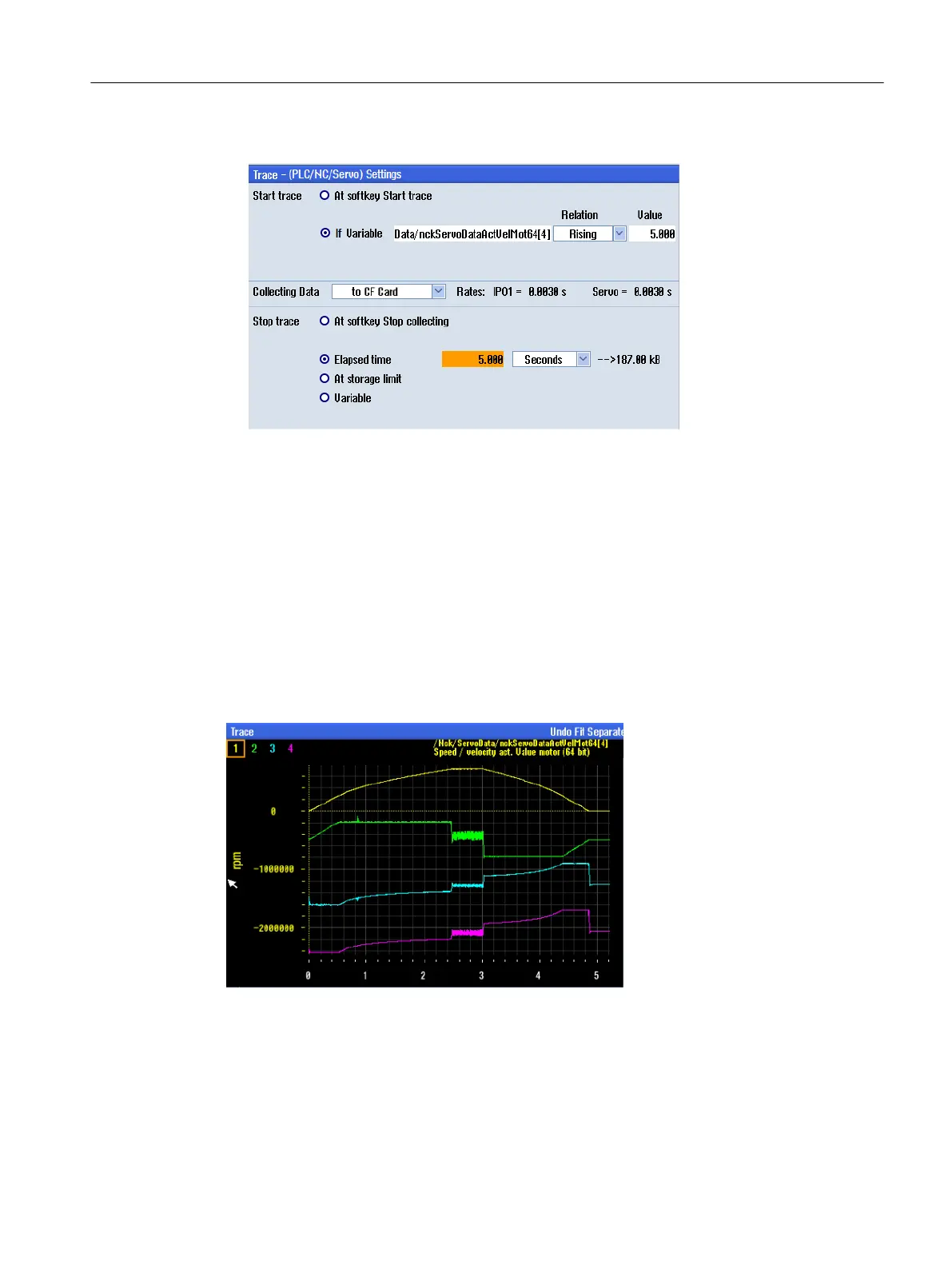

6. Press the "Settings" softkey.
7. Confirm with "OK".
8. Enter the following program in the MDI:
S8000 M03
G04 F5
M30
9. Initialize the trace and execute the program:
"Trace" softkey
→ "Display trace" softkey → "Start trace" softkey → <RESET> key → <CYCLE
START> key
Evaluation
When the trace function completes, press the "Adapt all" softkey:
Tuning
6.5 Optimize the spindle
CNC commissioning
Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3 199
