Siemens SINUMERIK 828D Commissioning Manual

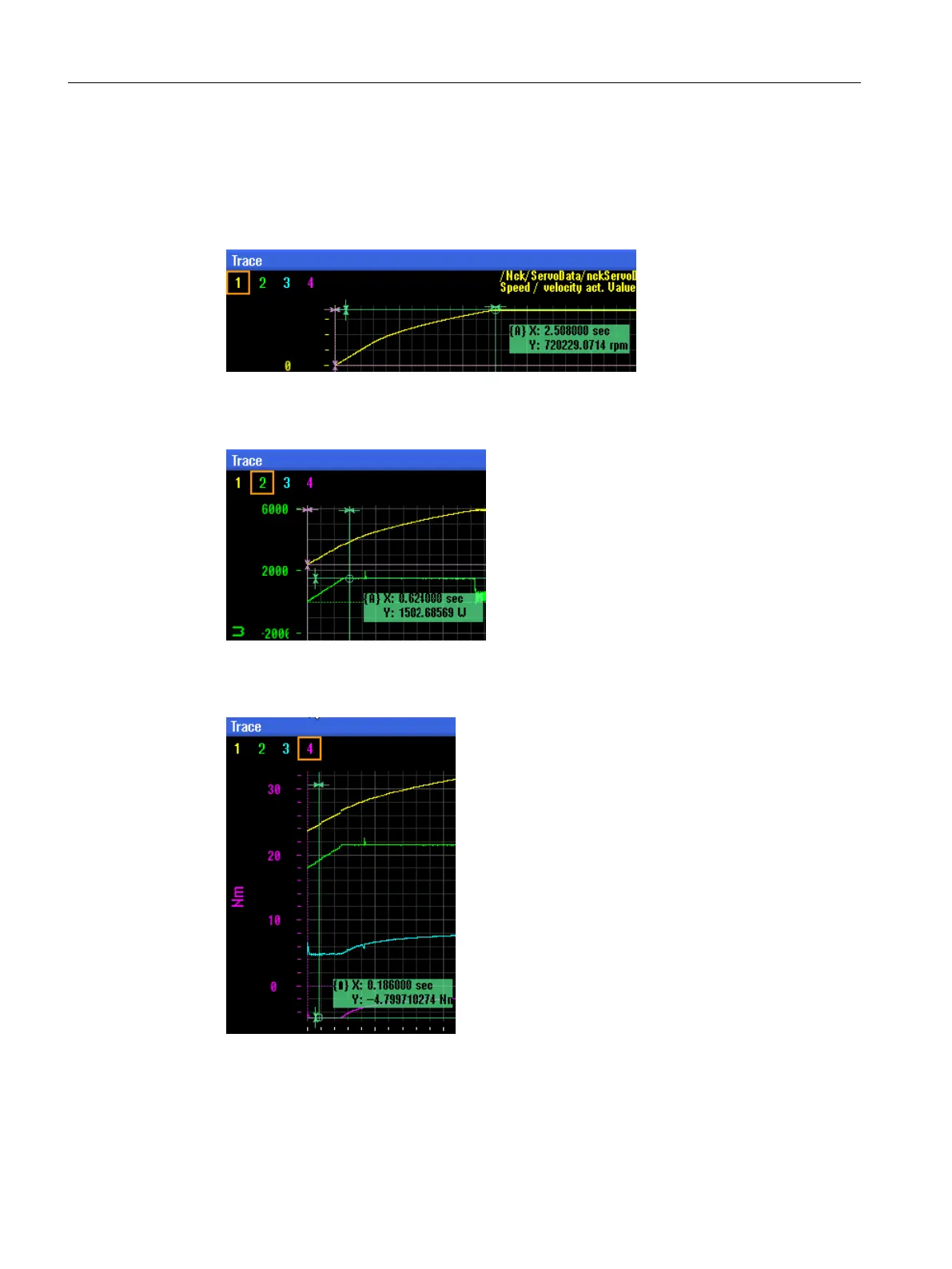

Use the cursor keys to set the acceleration time.
● Trace selection: Actual speed (Trace 1)
The cursor is positioned at the trace start and at the point where the speed setpoint is
attained.
Time needed for acceleration to the speed setpoint = 2.5 seconds
● Trace selection: Actual speed (Trace 2)
The power used to accelerate the motor can be seen on Trace 2:
Maximum available power = 1.5 kW = S1 curve
● Trace selection: Torque setpoint (Trace 4)
The torque setpoint can be seen on Trace 4:
Torque setpoint = 4.8 Nm = S1 curve
Tuning
6.5 Optimize the spindle
CNC commissioning
200 Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
