Network connection
To create a network connection:
1. In the menu, select
"Settings" → "Connection" → "Direct connection" or click the "Connect"
button.

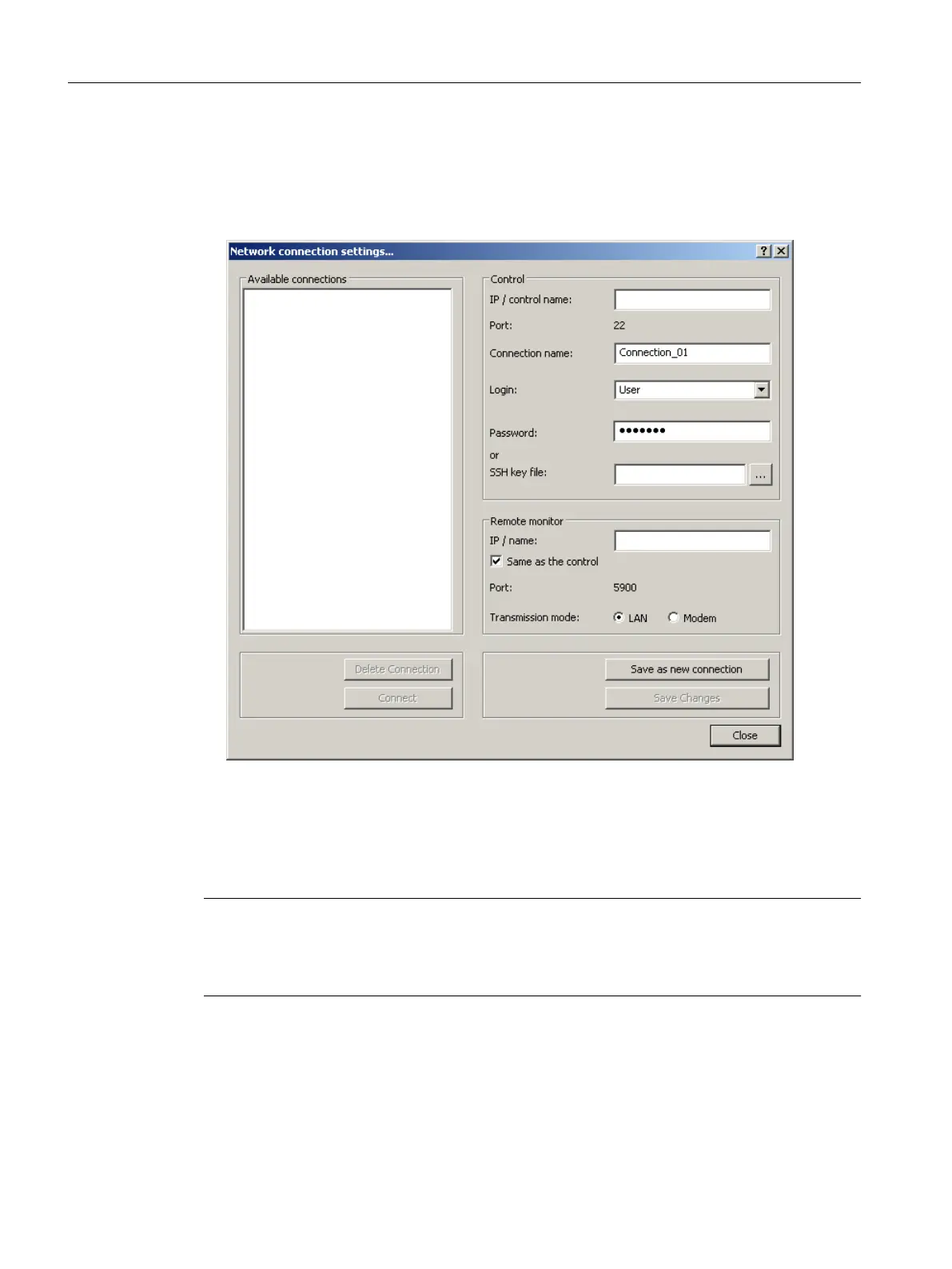

Figure 1-8 Dialog: Network connection
2. In the menu, select "Connection" → "Connect" → "Network connection" or select – if available
– one of the previously selected connections.
3. Connection is made to the parameterized control.
Note
SSh key file
As an alternative to
entering a password, the user may also use an SSh key for authentication.
Please refer to the Online Help for more information on this topic.
Scope of delivery and requirements
1.6 Communication with the control
CNC commissioning
28 Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
