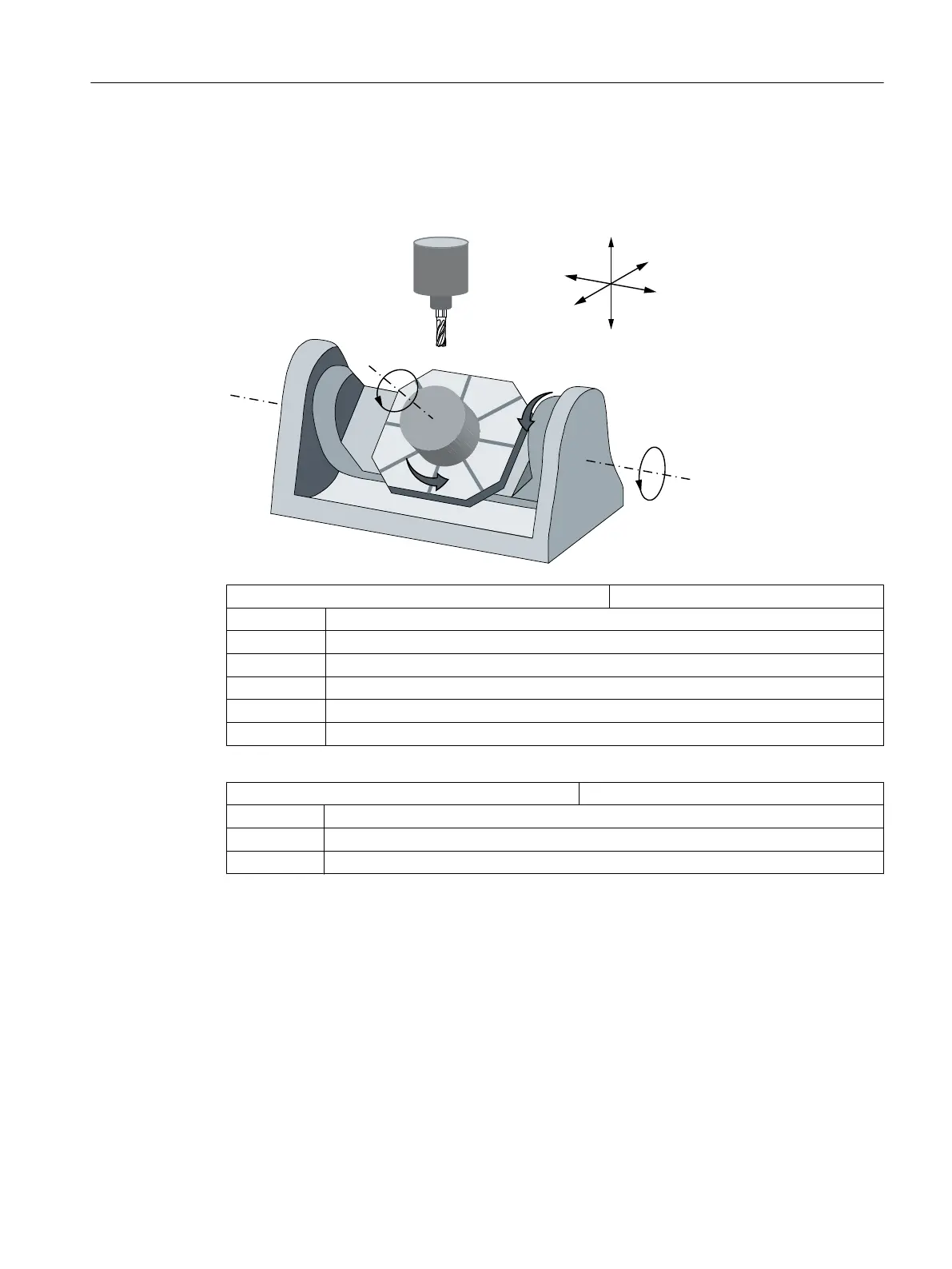

Example for the machine configuration

Example for a machine configuration when the A axis should rotate at the X axis:

;

MD20080 $MC_AXCONF_CHANAX_NAME_TAB[n] Channel axis name in channel [n]

[0] X

[1] Y

[2] Z

[3] Spindle

[4] A

[5] C

MD52207 $MCS_USAGE_ATTRIB[4] Attribute of rotary axis A in channel 4

= 181H

Bit 0 = 1 Rotation around the 1st geometry axis (for rotary axes)

Bit 8 = 1 Offer rotary axis for blank clamping (on milling machines)

References

Operating Manual, Milling

● Chapter "Create ShopMill program" > "Program header"

● Chapter "Create ShopMill program" > "Change program settings"

Simulation and simultaneous recording

6.4 Clamping a blank

SINUMERIK Operate

Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3 73

Siemens SINUMERIK 828D Commissioning Manual

Other manuals for Siemens SINUMERIK 828D
