Program test run
To support the program test run, the following dialog is available under "Program control" →
"Approach":

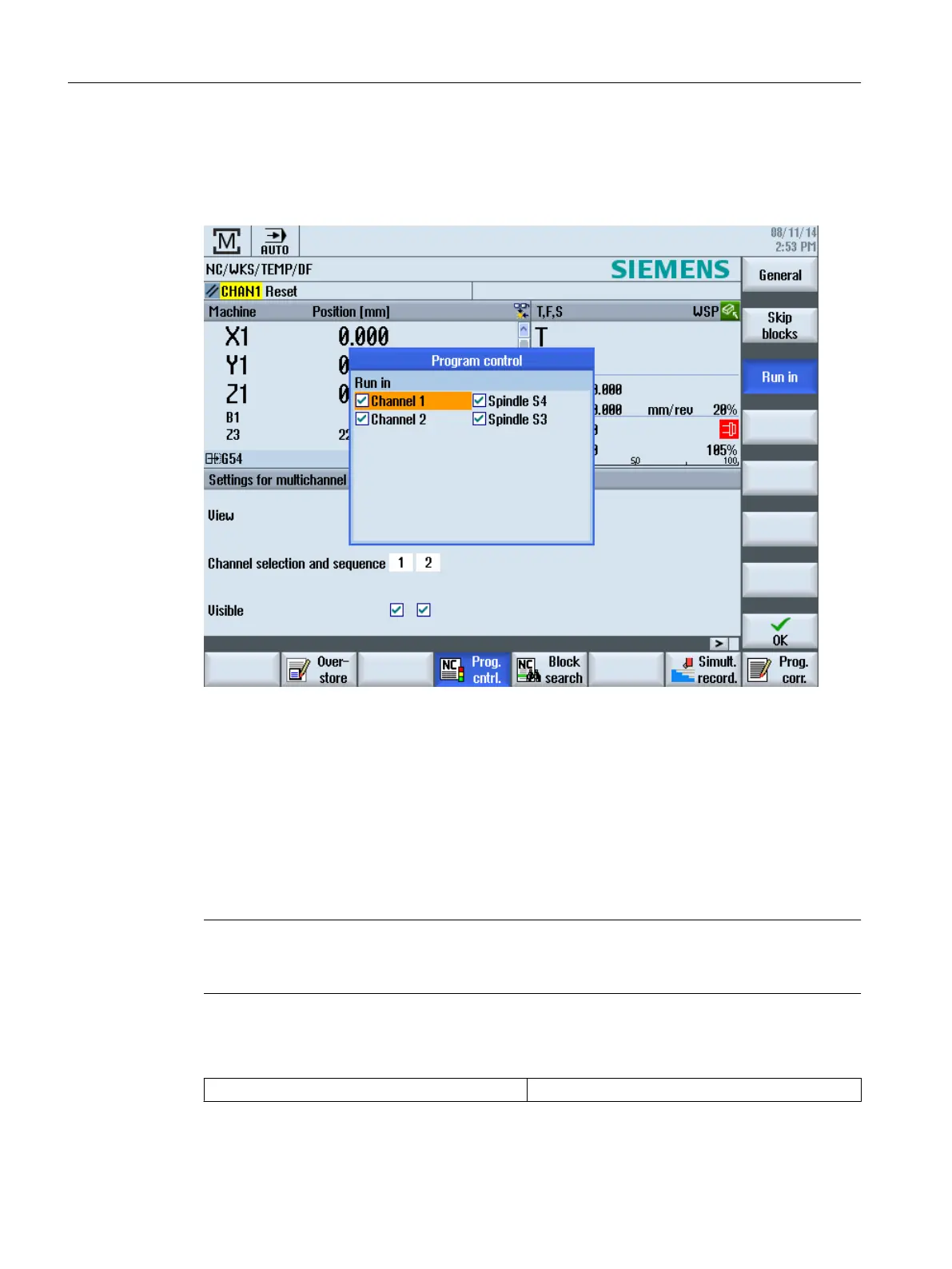

Figure 7-2 Program test run
In the dialog, specify which channel and which spindle should be used for the program test
run.
The check marks for the program test run (dry run) are displayed as follows in the PLC:
(check mark = processing = no dry run = 0)
●
Channel 1...n: DB330x.DBX1.7
●
Spindle n: DB380x.DBX1.3
Note
An example for commissioning the positioning function is also supplied in the
SINUMERIK 828D Toolbox.
All required M-commands must be grouped. Some groups are predefined for the standard M-
commands (e.g. M3, M4, M5, ...), see following machine data item:
MD22040 $MC_AUXFU_PREDEF_GROUP Group assignment of predefined auxiliary functions.
Configuring cycles
7.3 Manufacturer cycles
SINUMERIK Operate
90 Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
