The fine offsets act in addition to the corresponding base vectors when the Swivel function
CYCLE800 or the NC function TCARR=n is called.
$TC_CARR41[n] to $TC_CARR60[n]
Assignment of the basic vectors to the vectors of the fine offset:
I1 $TC_CARR1...3[n] to $TC_CARR41...43[n]
I2 $TC_CARR4...6[n] to $TC_CARR44...46[n]
I3 $TC_CARR15...17[n] to $TC_CARR55...57[n]
I4 $TC_CARR18...20[n] to $TC_CARR58...60[n]
The fine offsets are activated by the following setting data:
SD42974 $SC_TOCARR_FINE_CORRECTION = 1 Fine offset TCARR on/off
= 0 When activating a tool carrier that can be oriented, the fine offset values are not taken into
account.
= 1 When activating a tool carrier that can be orientated, the fine offset values are taken into account.
Name of rotary axes

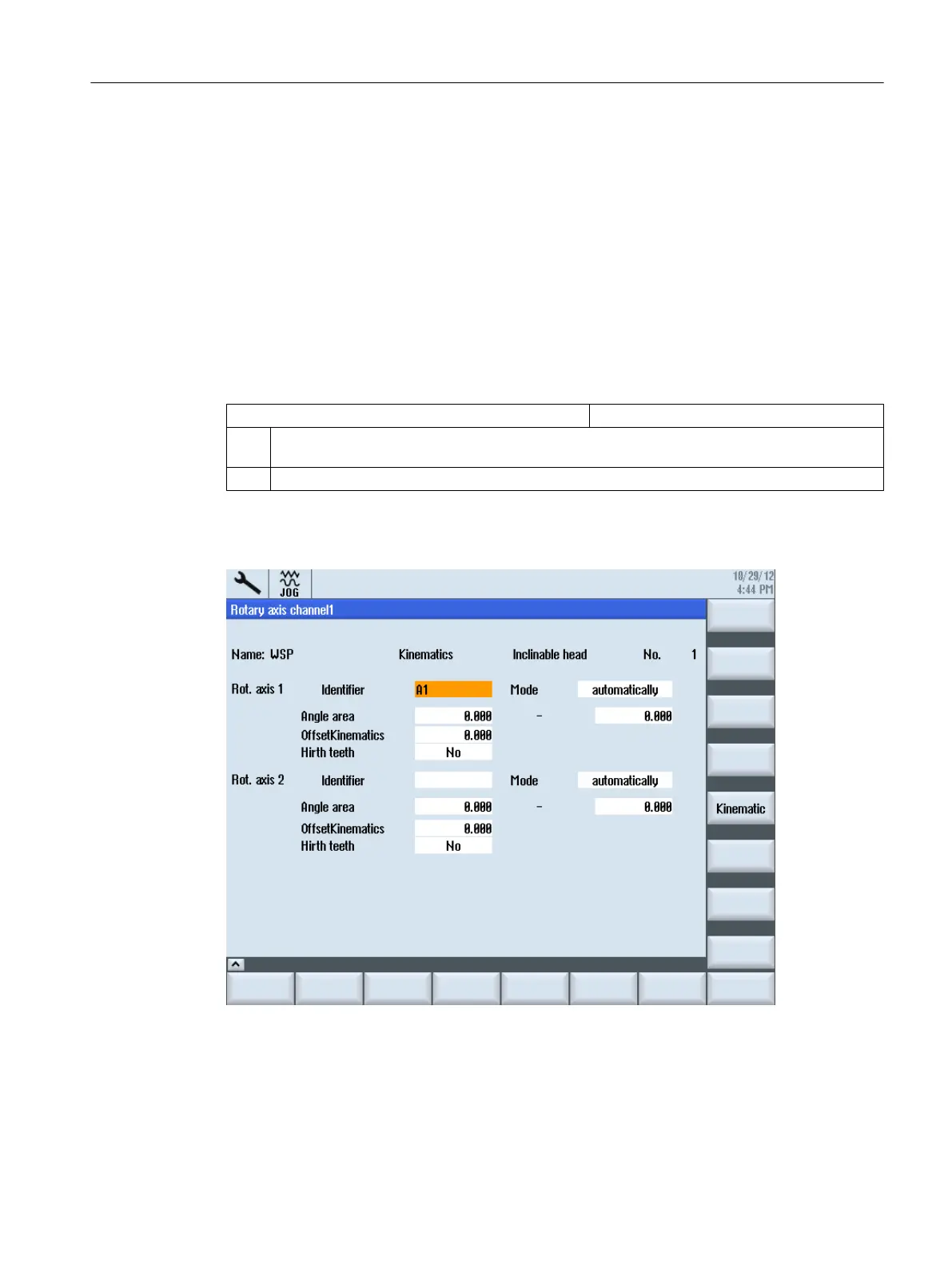

Figure 7-7 Dialog to input parameters for the rotary axis
Configuring cycles
7.7 Swiveling
SINUMERIK Operate
Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3 145
