SD54693 $SNS_MEA_T_MAX_STEPS Maximum number of probe contacts for
single cutting edge measurement
of the
radius.
= 10
*)
Default value
*)
If the value =
0, then the "highest point on the longest cutting edge" is not sought, but the measured
value of the contact with the rotating spindle taken.
U
E

E

E
Q
E


r Effective radius of the tool
b Arc distance = SD54692
n Maximum number of probe contacts = SD54693
① 1. Measuring point

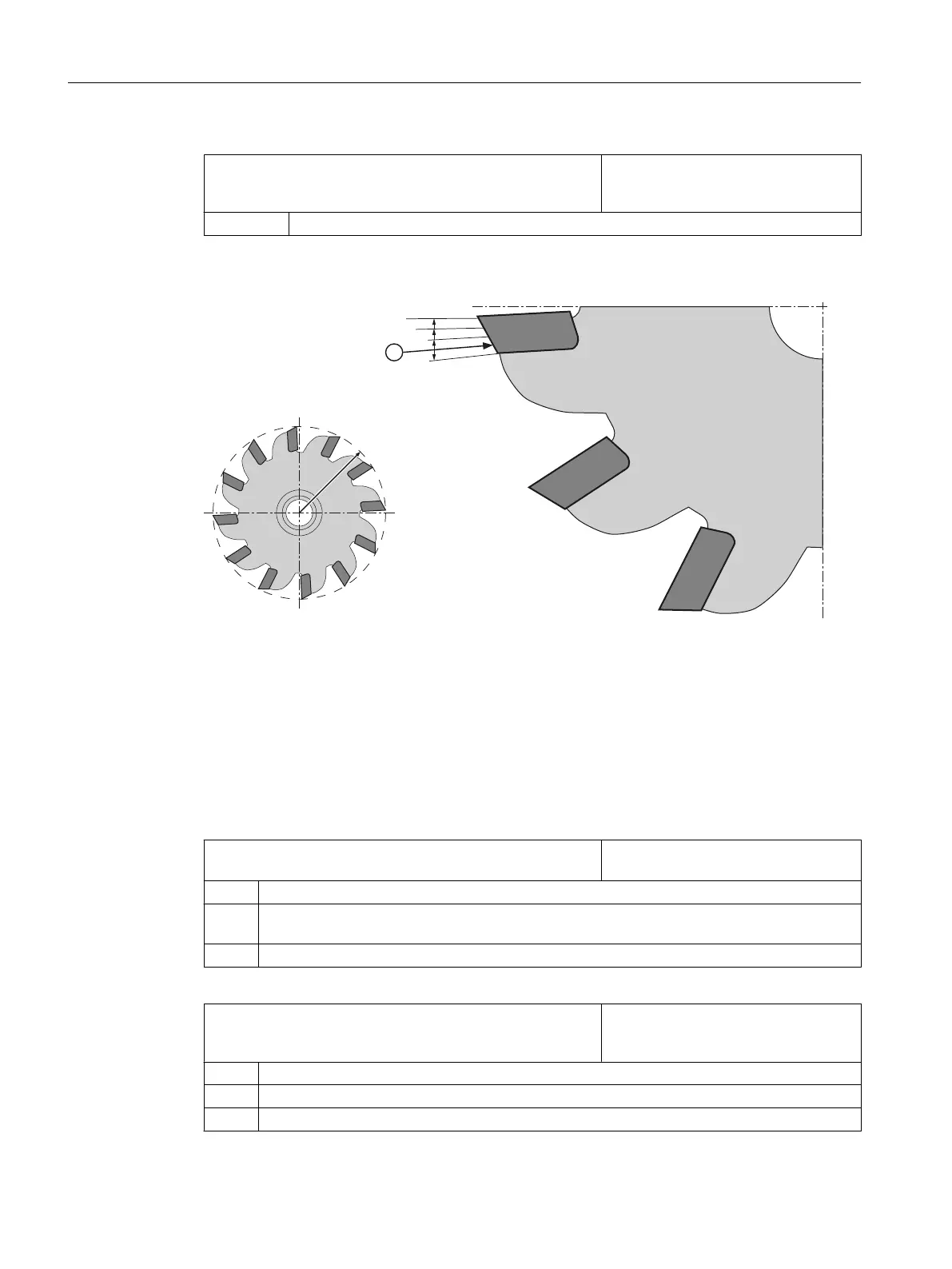

Figure 7-20 Single cutting edge measurement
General cycle setting data
for correction using the correction tables when forming measurements with
rotating spindle.
SD54691 $SNS_MEA_T_PROBE_OFFSET Activate the measuring result compen‐
sation
= 0 No data, default value
= 1 Correction in the cycle. This is only effective if SD54689 $SNS_MEA_T_PROBE_MANUFAC‐
TURER>0.
= 2 Correction using user-defined correction table
SD54689 $SNS_MEA_T_PROBE_MANUFACTURER Activates pre-configured compensa‐
tion tables for several tool probe mod‐
els (customer-specific)
= 0 No data, default value
= 1 TT130 (Heidenhain)
= 2 TS27R (Renishaw)
Configuring cycles
7.9 Measuring cycles and measurement functions
