Entries Meaning
Also enter only the changed data here. All other data is taken from the existing
cutting edge parameter.

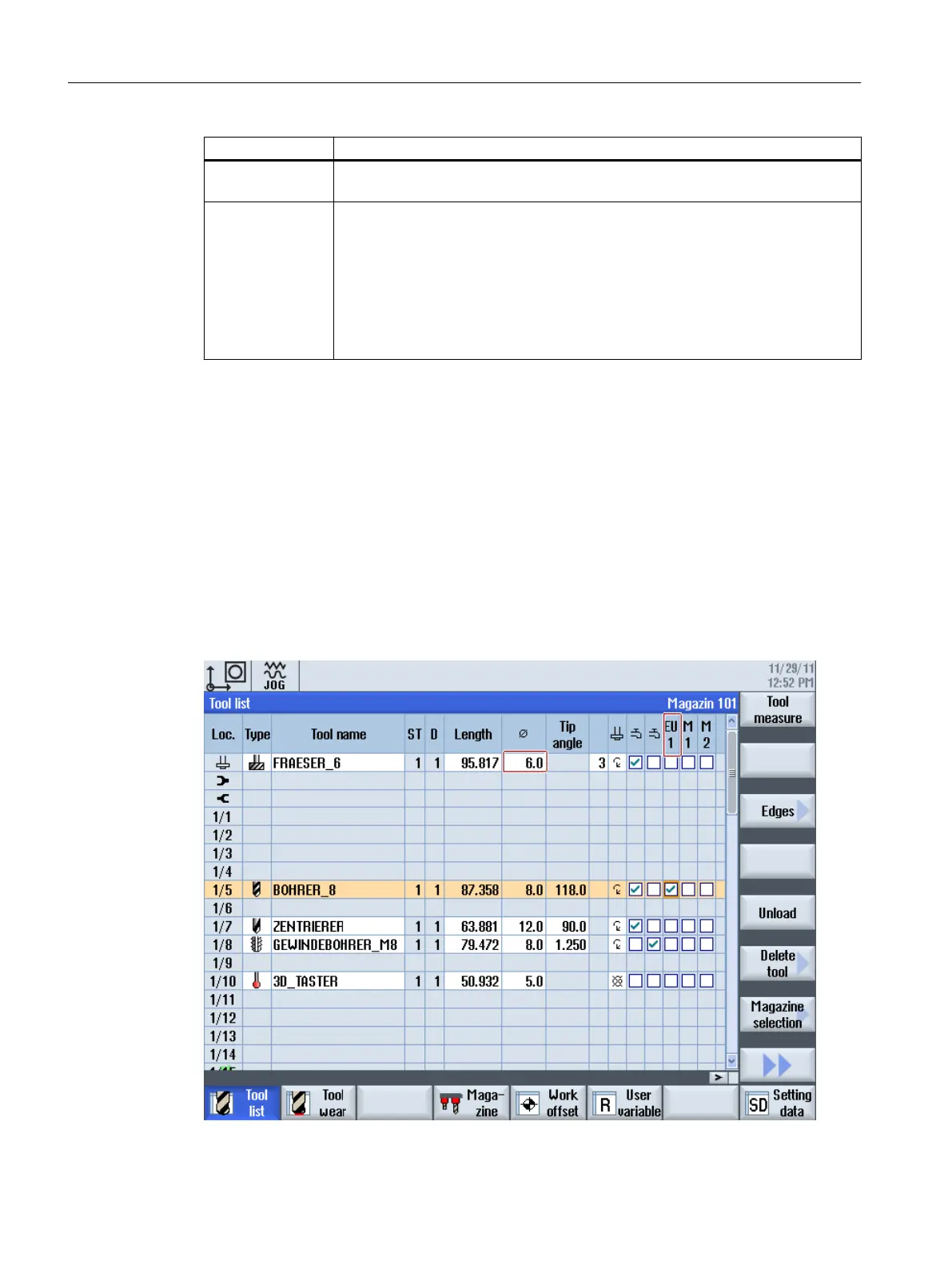

The following entries are changed:
Field type: Input/output field for states
Value output: All characters
Bit mask: Bit 0
Column width changed to 17 pixels.
Header changed to "TM_HL_EDGE_USER_1_Bit0"
Text in the tooltip changed to "TM_TT_EDGE_USER_1_Bit0"
<PARAMETERCONFIGURATION>
<EdgeUser_1_Bit0>
<Base value="EdgeUser_1" type="QString" />
<ItemType value="CheckBox" type="QString" />
<DisplayMode value="AnyMode" type="QString" />
<BitMask value="1" type="int" />
<Width value="17" type="int" />
<HeadLine value="TM_HL_EDGE_USER_1_Bit0" type="QString" />
<ToolTip value="TM_TT_EDGE_USER_1_Bit0" type="QString" />
</EdgeUser_1_Bit0>
</PARAMETERCONFIGURATION>
Tool management
9.2 Configuring the user interface
