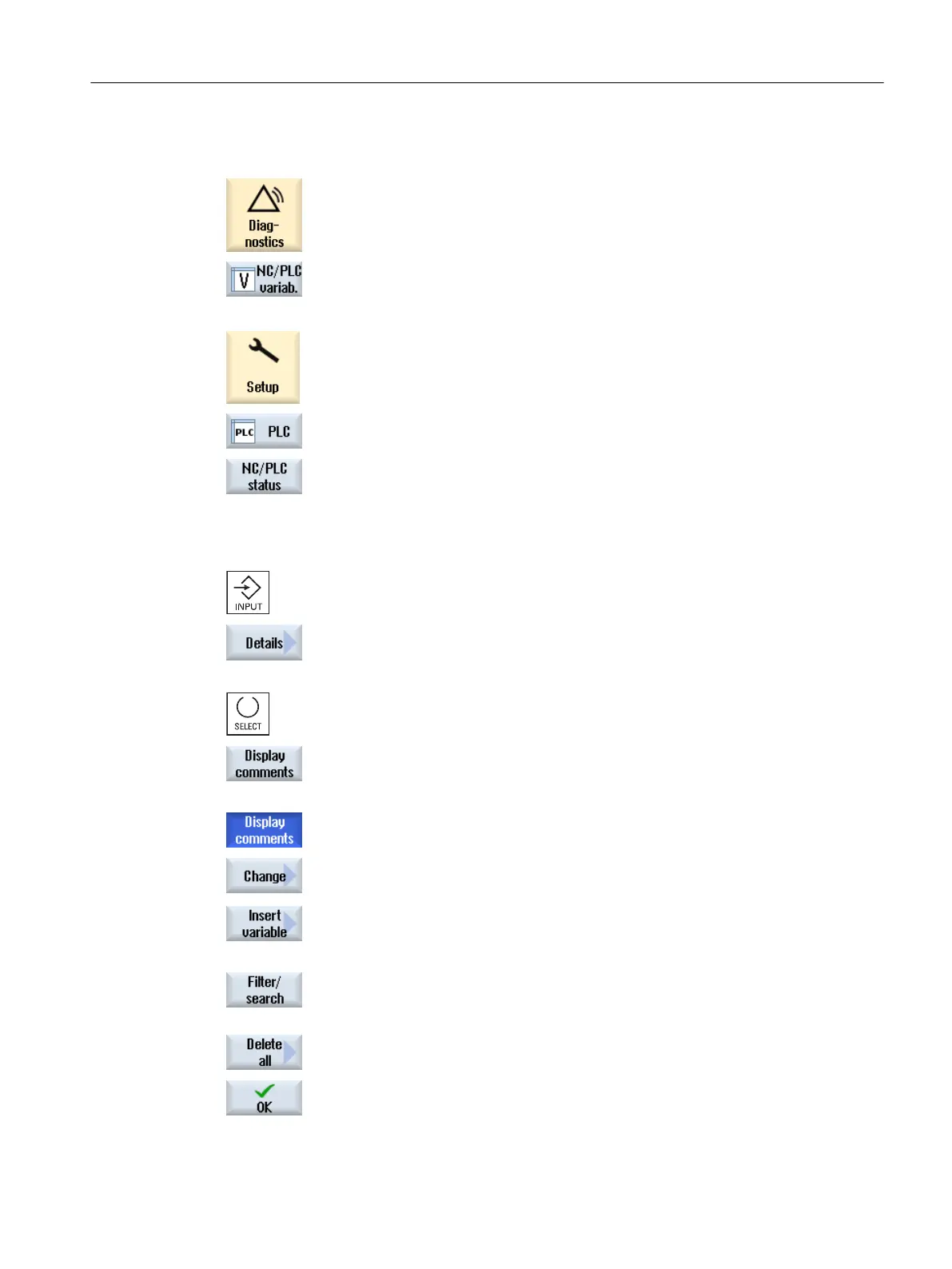

Changing and deleting values
1. Select the "Diagnostics" operating area.
2. Press the "NC/PLC variables" softkey.
- OR -
1. Select the "Startup" operating area.
2. Press the "PLC" and "NC/PLC variab." softkeys.
The "NC/PLC Variables" window opens.
3. Position the cursor in the "Variable" column and enter the required vari‐
able.
4. Press the <INPUT> key.
The operand is displayed with the value.
5. Press the "Details" softkey.
The "NC/PLC Variables: Details"
window opens. The information for "Var‐
iable", "Comment" and "Value" is displayed in full length.
6. Position the cursor in the "Format" field and select the required format
with <SELECT>.
7. Press the "Display comments" softkey.
The "Comments" column is displayed. You have the option of creating
comments or editing existing comments.
Press the "Display comments" softkey once again to hide the column.
8. Press the "Change" softkey if you would like to edit the value.
The "Value" column can be edited.
9. Press the "Insert variable" softkey if you wish to select a variable from a
list of all existing variables and insert this.
The "Select Variable" window opens.
10. Press the "Filter/search" softkey to restrict the display of variables (e.g.
to mode group variables)
using the "Filter" selection box and/or select the
desired variable using the "Search" input box.
Press the "Delete all" softkey if you would like to delete the entries for the
operands.
11. Press the "OK" softkey to confirm the changes or the deletion.
Service and diagnostics
10.1 NC/PLC variables
SINUMERIK Operate
Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3 323
