Navigation
The first dialog is called using the "START" softkey in the diagnostics operating area. The
horizontal SK7 softkey is used.

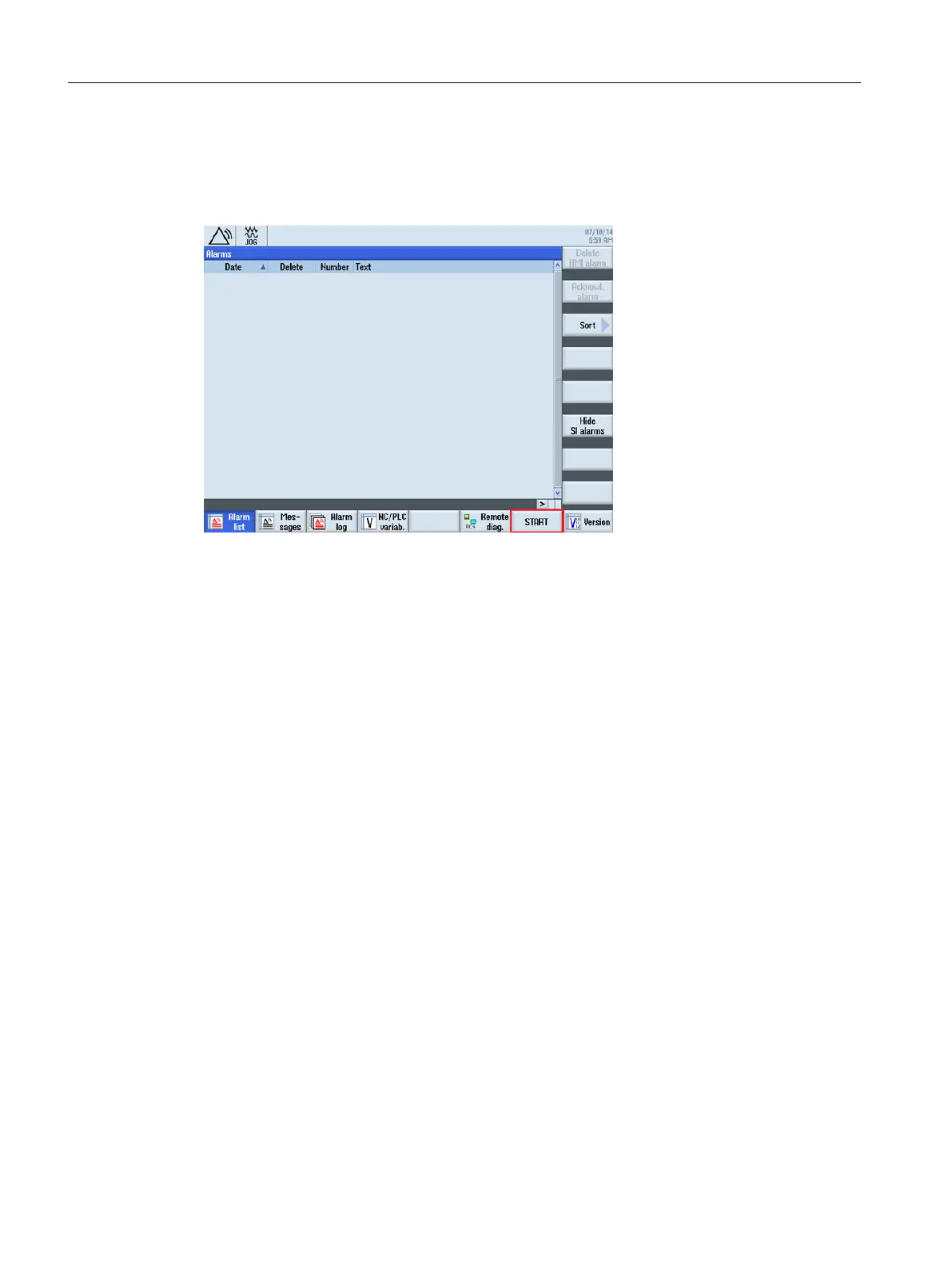

Figure 2-6 Start softkey „START“ in the machine operating area, AUTO mode
You can call the second dialog from the first dialog with the "Next Mask" softkey. You can
return
to the root screen of the operating area by pressing the "EXIT" softkey (see the screen
above).
Using the "EXIT" softkey, you can also return to the root screen of the operating area from the
second dialog (see the screen above). You can return to the first dialog via the "Back to Mask"
softkey.
Procedure
The necessary steps are described in the following chapters:
1. Creating the configuration file (COM file)
2. Saving the configuration file in the OEM directory
3. Creating the online help
4. Saving the online help in the OEM directory
5. Copying easyscreen.ini into the OEM directory
6. Registering the COM file in easyscreen.ini
7. Testing the project
Getting Started
2.2 Example
SINUMERIK Integrate Run MyScreens
16 Programming Manual, 10/2015, 6FC5397-3DP40-5BA3
