Installing a Second Internal Hard Drive in an RM7000class Workstation
007-4486-001 81

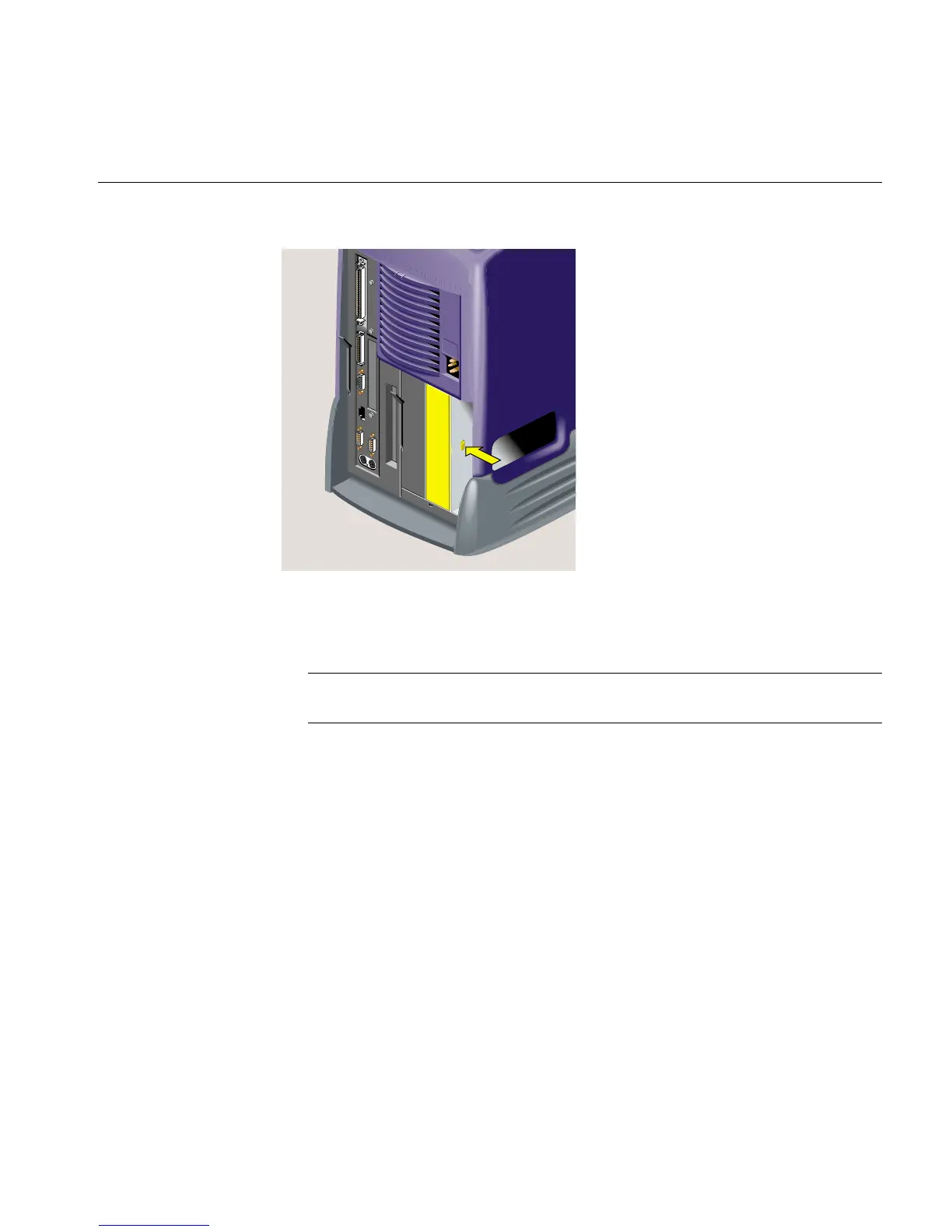

Figure 3-6 Removing the Panel from the Optional Drive bay
7. Slide the second hard drive into the optional drive bay until the lever engages
(Figure 3-7).
Note: You do not need to set the SCSI address on the second drive. The optional
drive bay on the O2+ workstation is preconfigured.
