Replacing the Audio-visual Module
007-4486-001 147
5. Slide the replacement audio-visual module into the chassis (Figure 5-31).

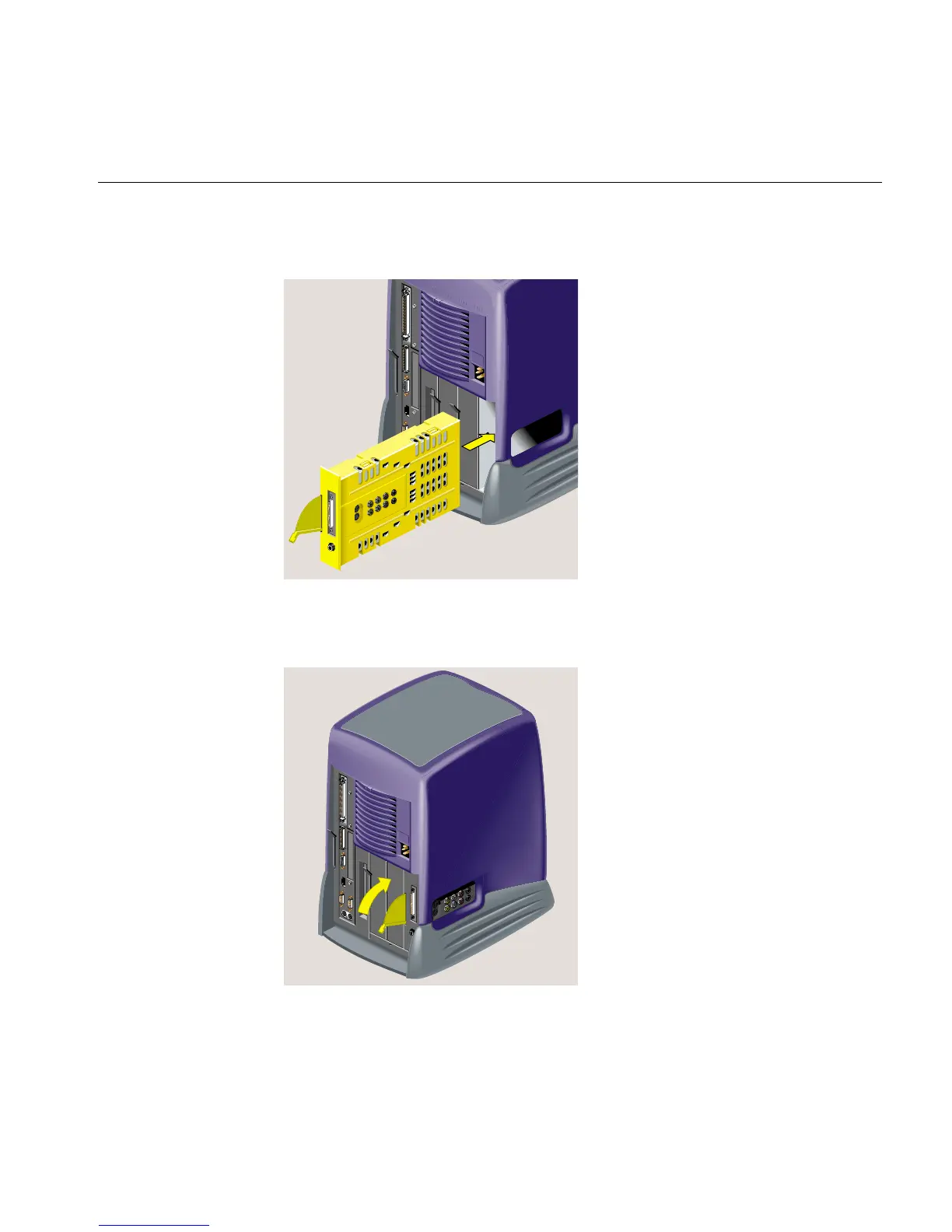

Figure 5-31 Installing the Replacement Audio-visual Module
6. Push the lever up to lock the module in place (Figure 5-32).
Figure 5-32 Securing the Audio-visual Module
