Replacing the RM7000class CPU Module
007-4486-001 121

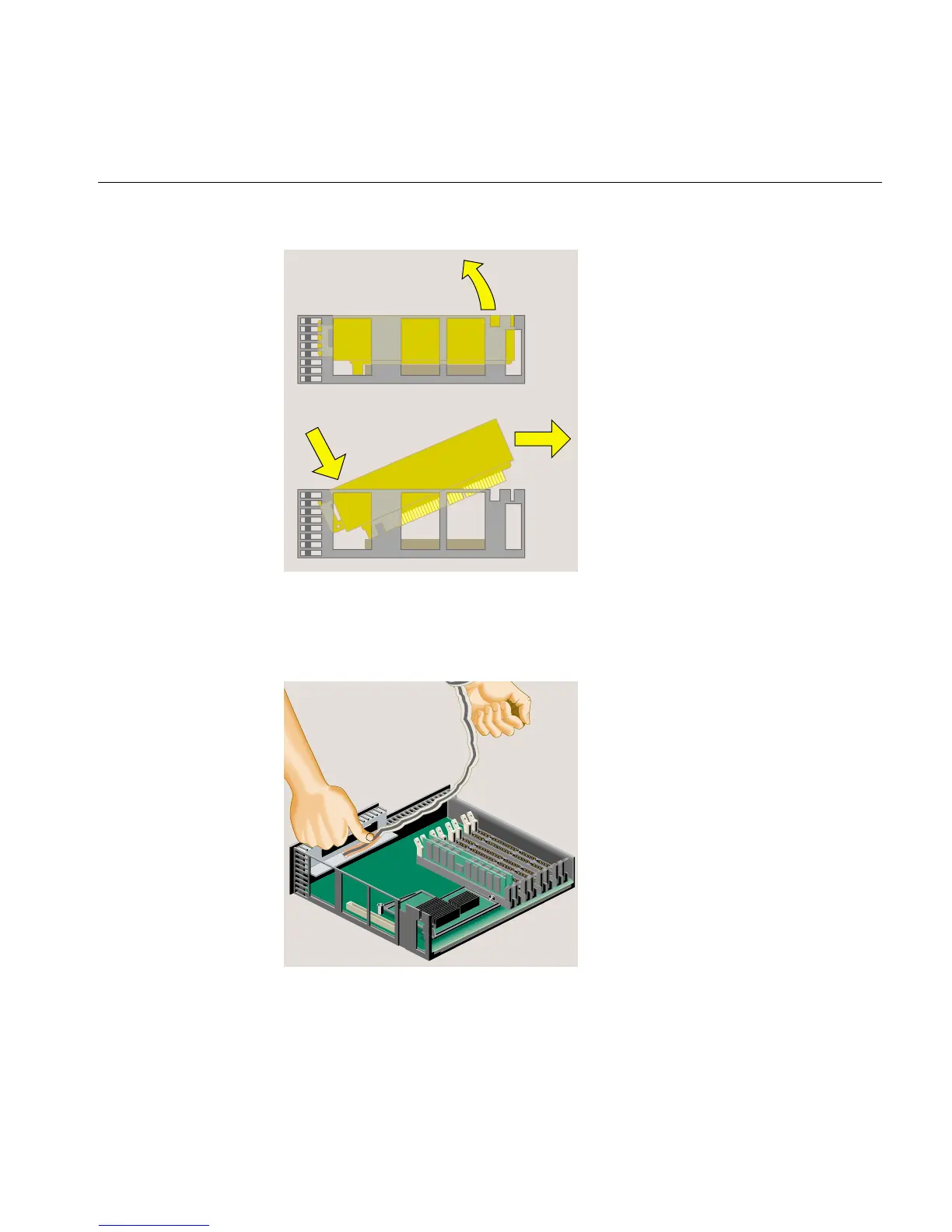

Figure 5-2 Removing the PCI Tray
4. Before touching any of the components, ground yourself to a metal part of the
chassis. Attach the wrist strap to your wrist and to the metal flange (Figure 5-3).
Figure 5-3 Attaching the Wrist Strap
