Silicon Graphics O2+ - Figure 5-6 Installing the Replacement CPU Module

124 007-4486-001
Chapter 5: Ordering, Removing, Upgrading, Installing Replacement Parts
7. Install the replacement RM7000class CPU module (Figure 5-6), as follows:
• Align the connector beneath the module with the connector on the system
board. Make sure it is positioned correctly before pressing down.
• Press down gently on the CPU module until it is securely seated. You hear a
click as it connects.
• Insert and tighten the two Phillips screws in the locations shown (Figure 5-6).

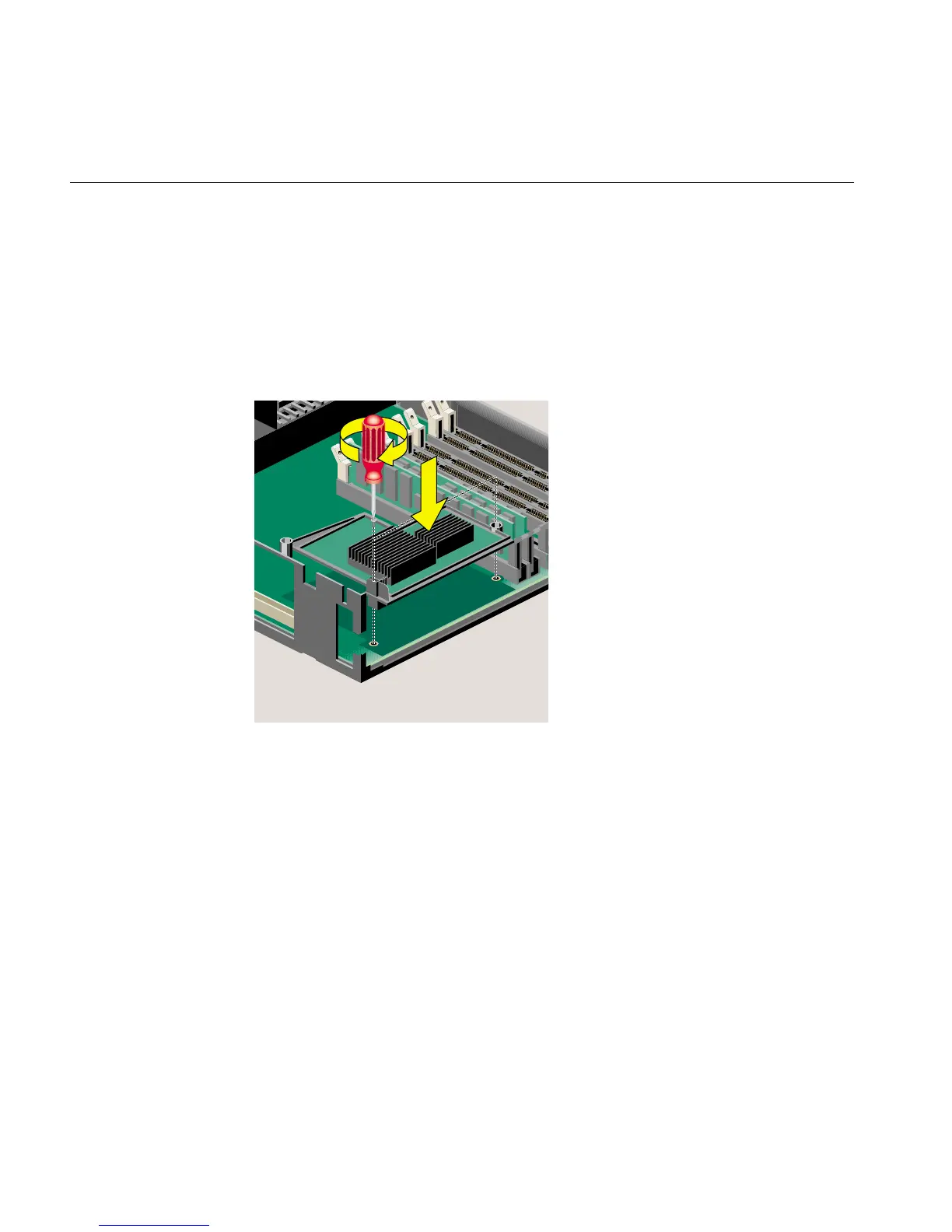

Figure 5-6 Installing the Replacement CPU Module
8. Remove the wrist strap.
