Silicon Graphics O2+ - Figure 4-10 Removing the Jumper

114 007-4486-001
Chapter 4: Troubleshooting
.

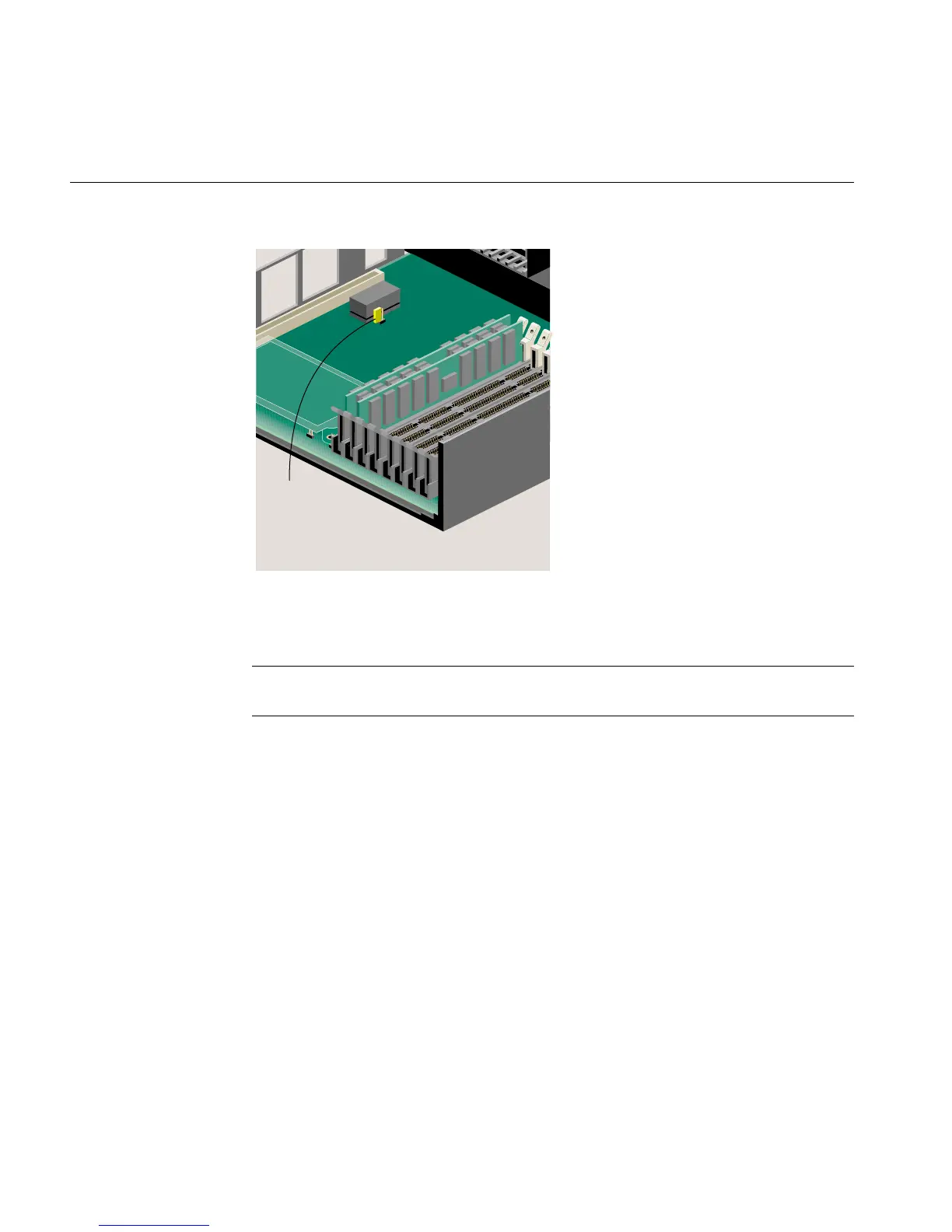

Figure 4-10 Removing the Jumper
6. Reinstall the jumper in the location shown in Figure 4-11.
Note: The illustration shows an RM7000class CPU. In an R12000class CPU, the pin
location on the system board is the same.
Jumper
