Silicon Graphics O2+ - S-Video (Analog) in and out; Figure A-2 S-Video (Analog) Port Pinout Assignments

196 007-4486-001
A: Technical Specifications
S-Video (Analog) In and Out
Figure A-2 shows the cable pinout assignments for the analog S-video in and out port.
(The video option is not available on all models.)

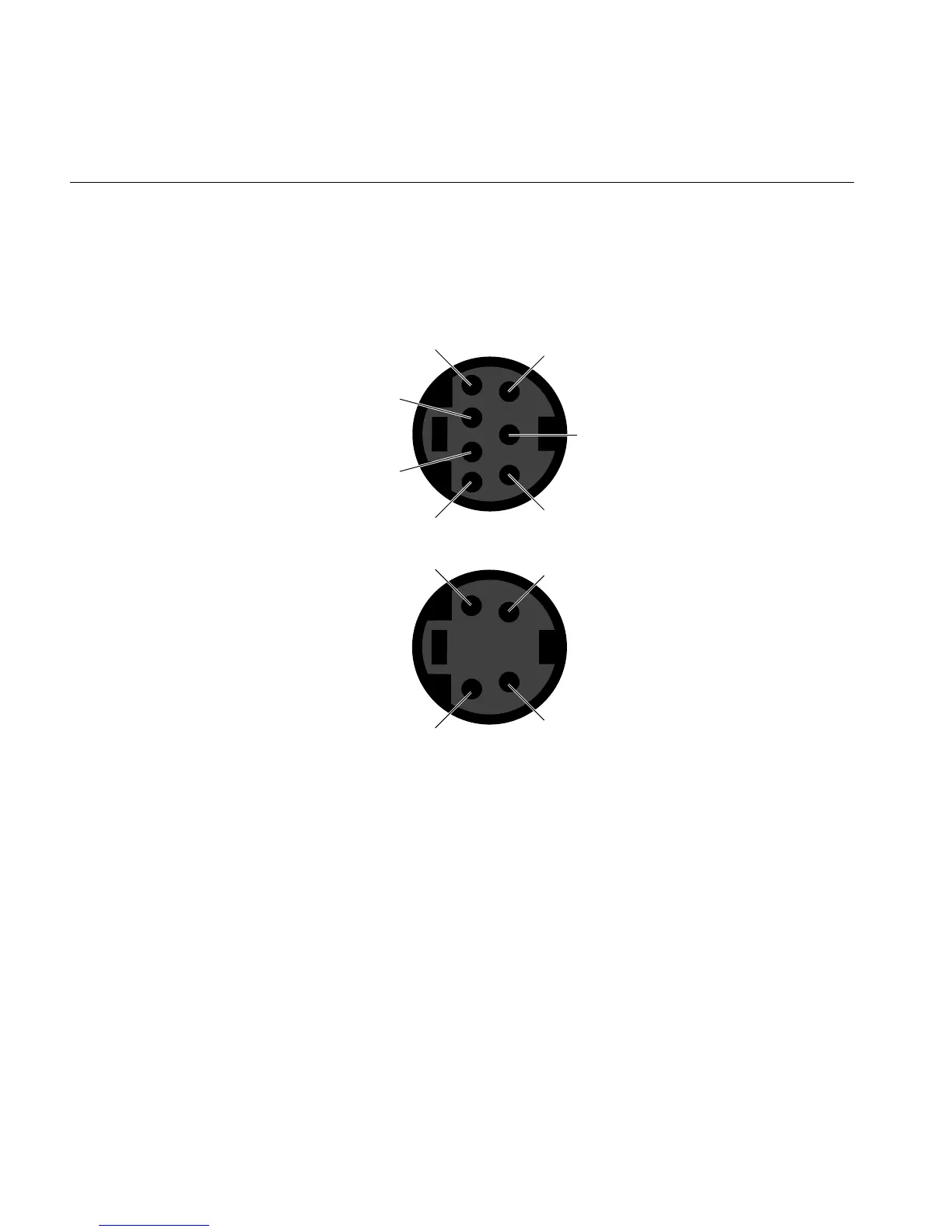

Figure A-2 S-Video (Analog) Port Pinout Assignments
Chromain
Lumain
Chromaingnd
Lumaingnd
Chromaout
Lumaout
Chromaoutgnd
Lumaoutgnd
SDA
V12V
SCL
S-video in
S-video out
