Silicon Graphics O2+ - Figure 2-38 Removing the Screws from the Faceplate; Figure 2-39 Removing the Faceplate from the System Module

Installing an Option Board
007-4486-001 59

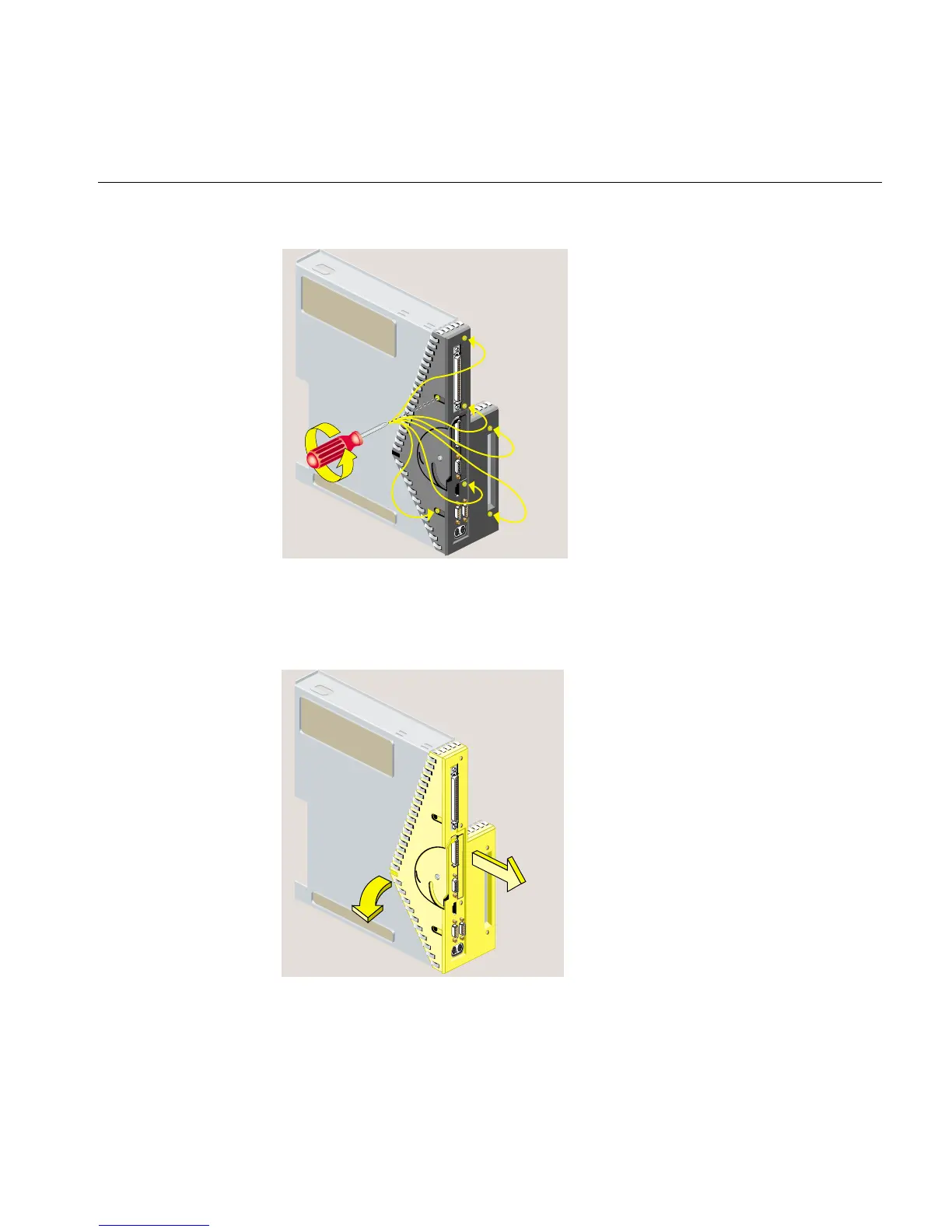

Figure 2-38 Removing the Screws from the Faceplate
• Remove the faceplate by grasping it where the plastic comes to a “V” and
pulling it outward. (See Figure 2-39.) The filler panel covering the I/O port falls
away as you remove the faceplate.
Figure 2-39 Removing the Faceplate from the System Module
