Replacing the CD-ROM Drive
007-4486-001 159
2. Remove the CD-ROM drive faceplate, as follows (Figure 5-45).
• Hold the faceplate between the thumb and forefinger of one hand, while
bracing the tray with the other hand.
• Push the faceplate (but not the tray) upward with your thumb until it snaps
away from the tray.
• Push the tray gently back into the drive until it is just inside the bezel. Do not
push it all the way. Later it will be easier for you later to extract the tray to
reinstall the face plate.

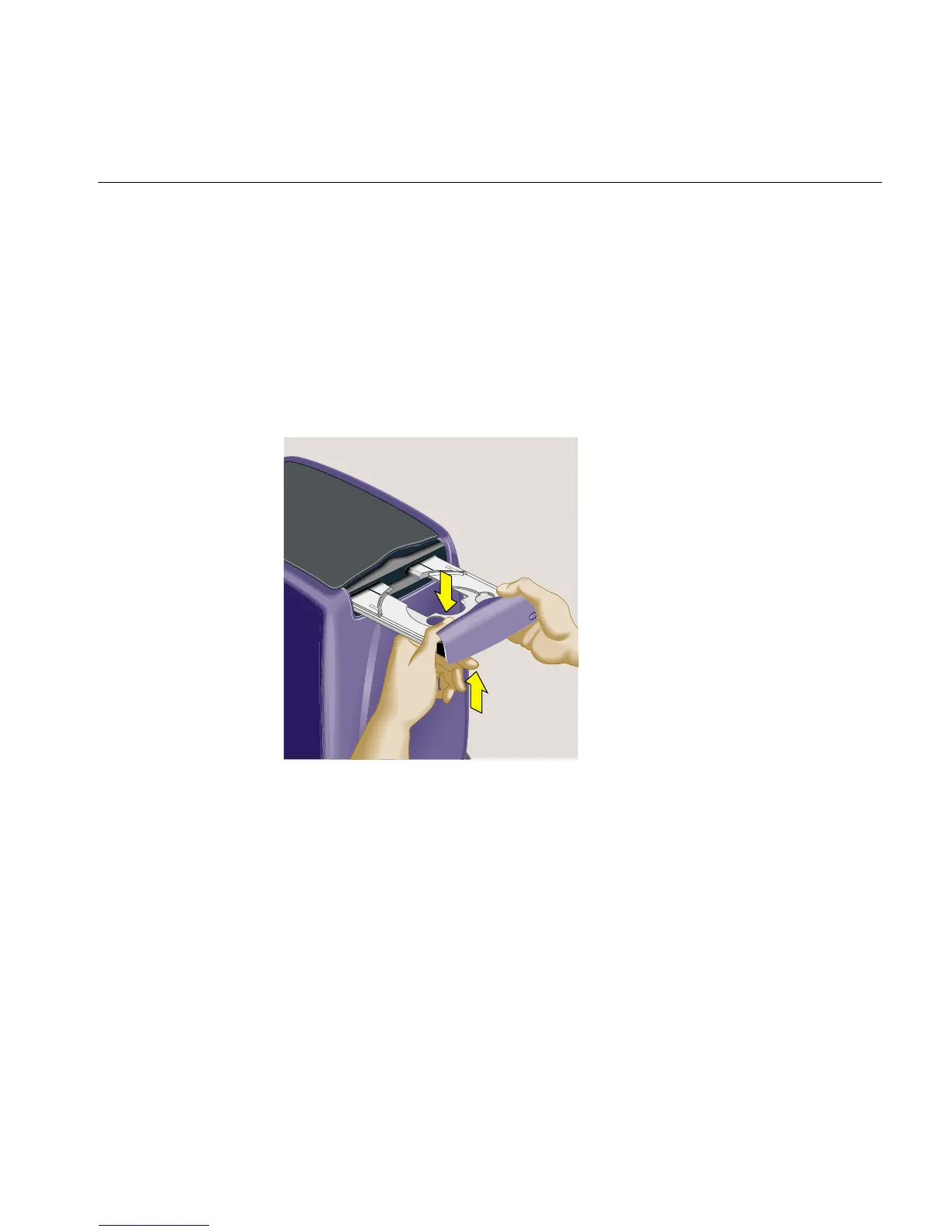

Figure 5-45 Removing the CD-ROM Drive Faceplate
3. Turn off the workstation and remove the power cable from the rear.
