Silicon Graphics O2+ - Figure 2-25 Installing the PCI Board on the R12000 Class Workstation; Figure 2-26 Securing the PCI Board

Installing a PCI Board in an R12000class Workstation
007-4486-001 49

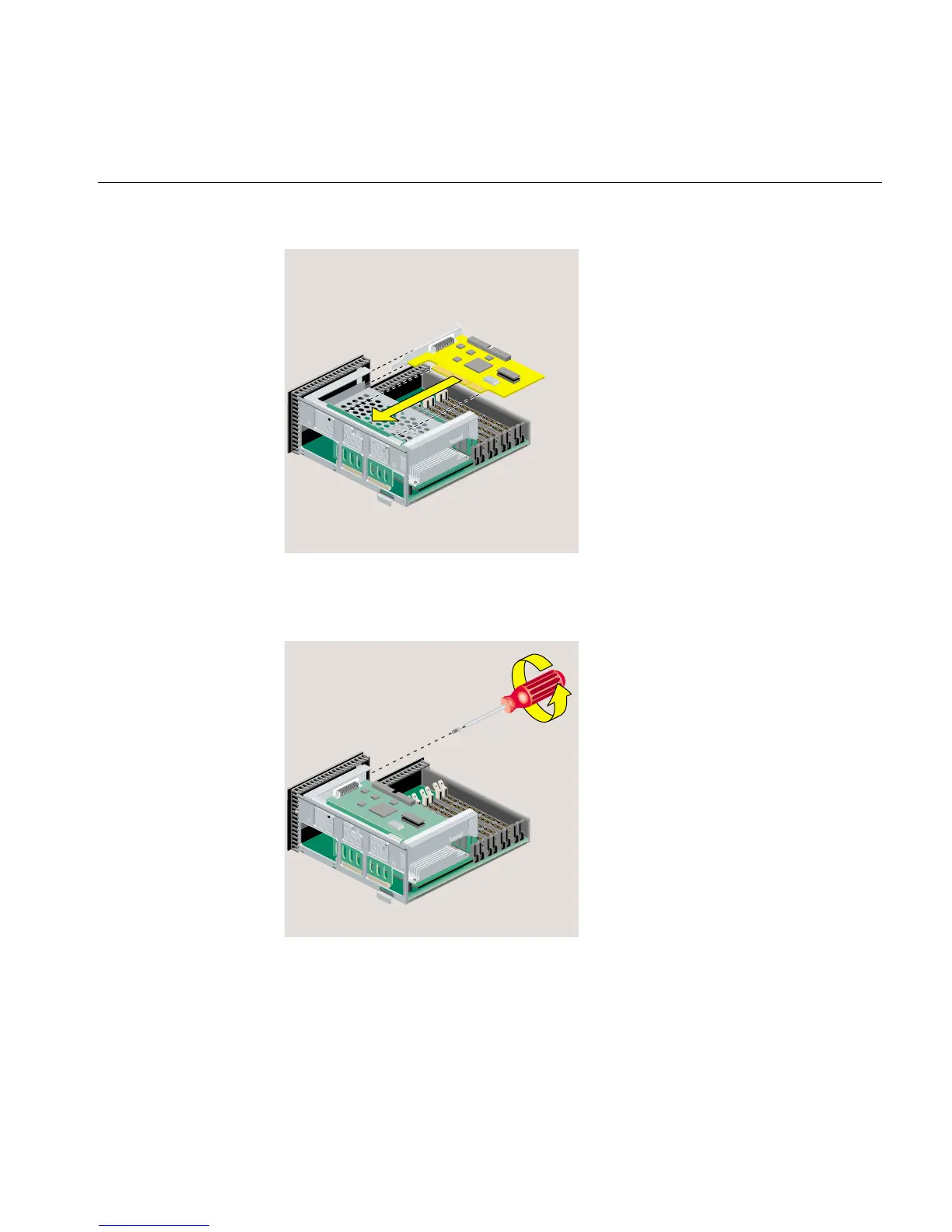

Figure 2-25 Installing the PCI Board on the R12000class Workstation
4. Insert and tighten the screw that secures the PCI board (Figure 2-26).
Figure 2-26 Securing the PCI Board
5. Follow the steps in “Reinstalling the System Module.”
