Silicon Graphics O2+ - Figure 5-47 Removing the Top Cover of the CD-ROM Drive

Replacing the CD-ROM Drive
007-4486-001 161

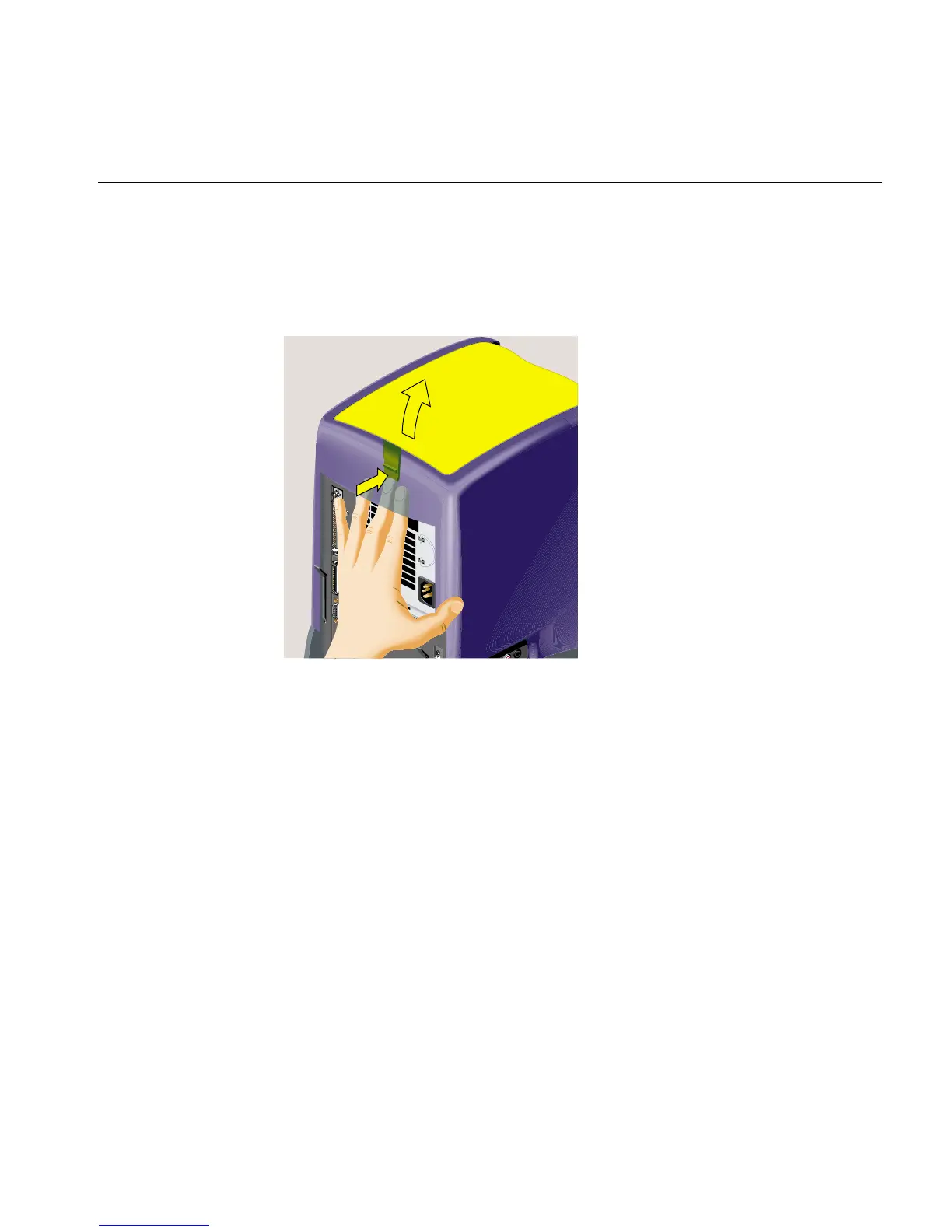

5. Remove the top cover of the CD-ROM drive (Figure 5-47) as follows:
• Look beneath the plastic cover for a release tab.
• Press the tab toward the chassis and push the cover upward.
Figure 5-47 Removing the Top Cover of the CD-ROM Drive
