Reinstalling the System Module
007-4486-001 71

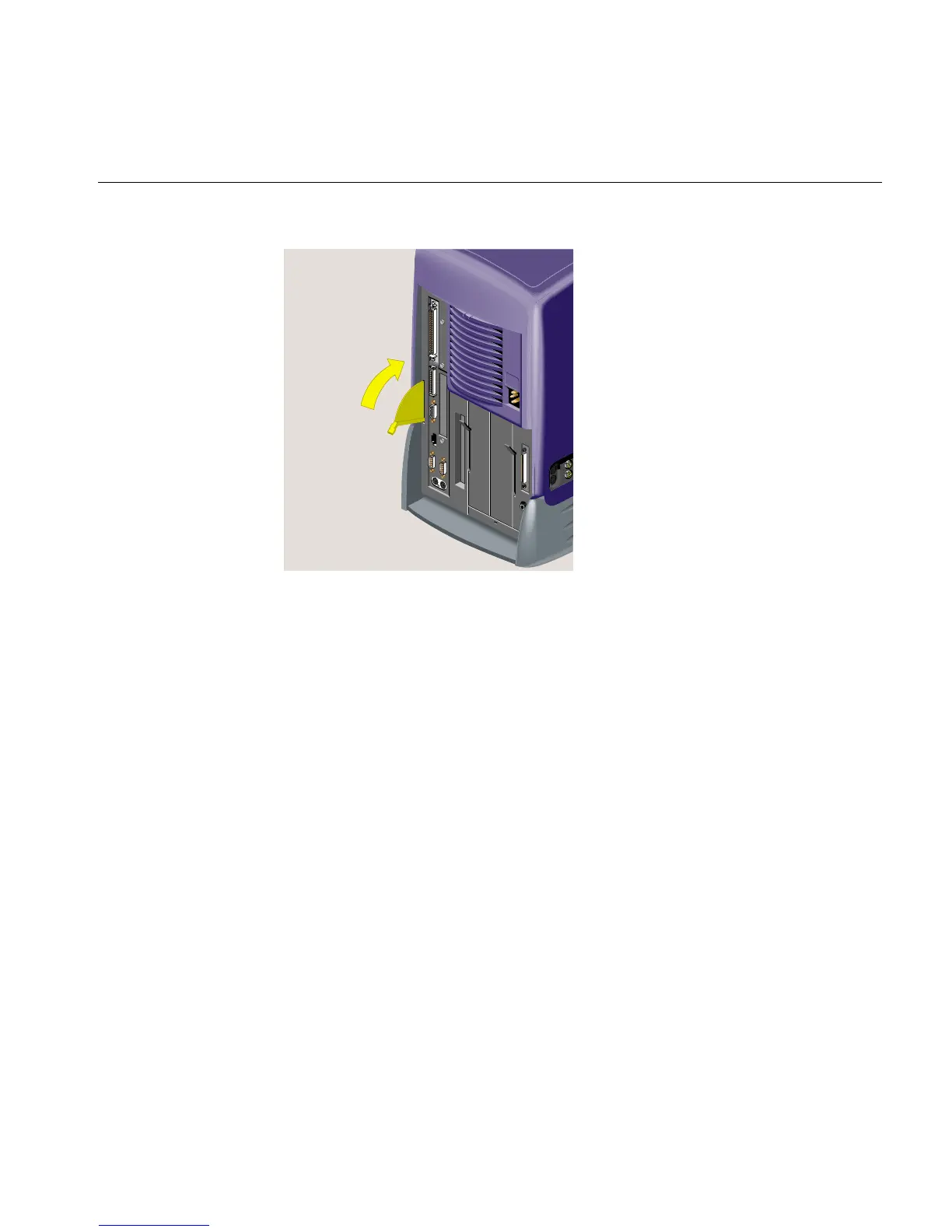

Figure 2-52 Securing the System Module in Place
4. Remove the wrist strap from the chassis.
5. Reconnect the power cable and any other cables you removed (Figure 2-53).
6. If you installed an option board that has a cable, connect the cable to the I/O port on
the board you installed.
