Silicon Graphics O2+ - Composite Video (Analog) in and out; Figure A-1 Audio Ports Pinout Assignments; Table A-6 Analog Composite Video Port Pinout Assignments

Cable Pinout Assignments
007-4486-001 195

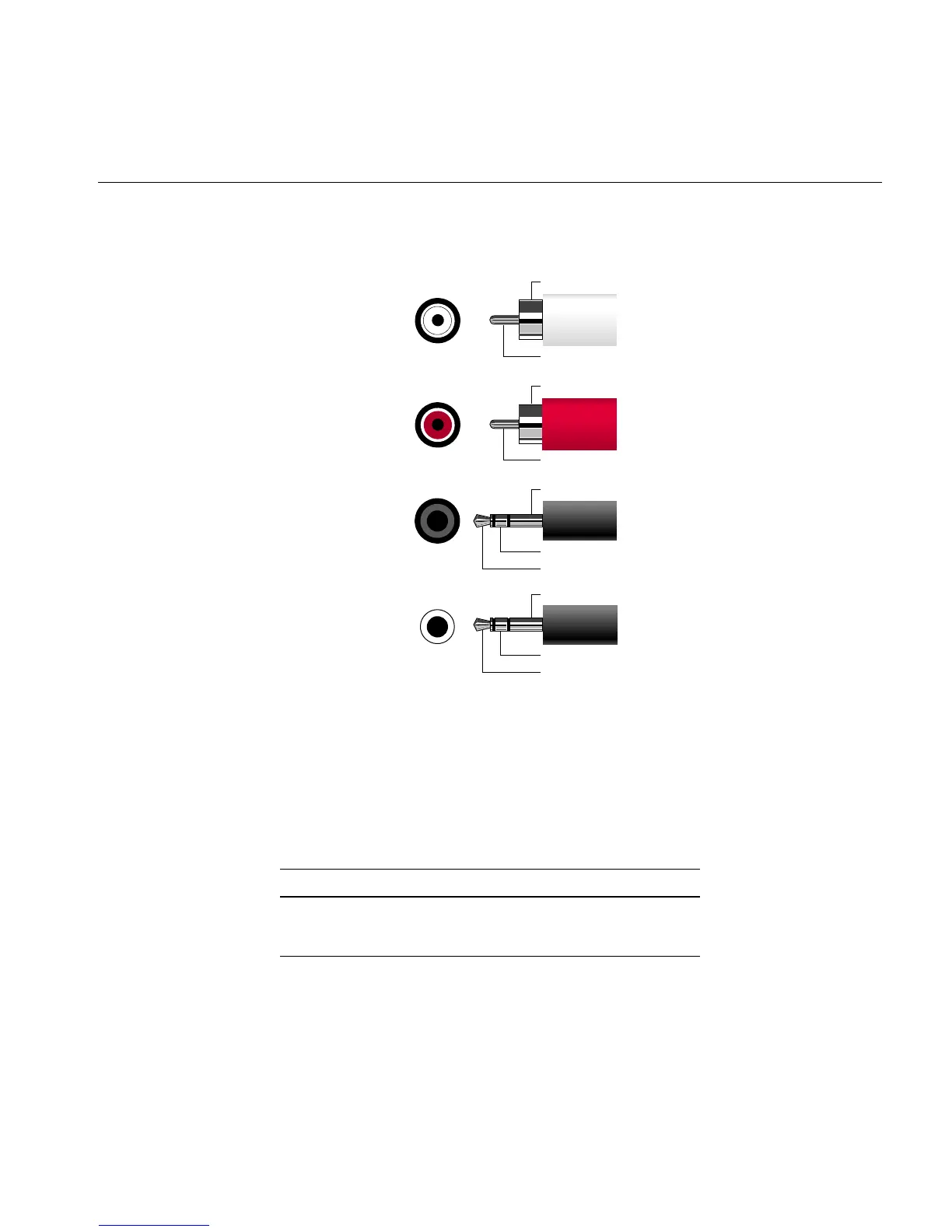

Figure A-1 Audio Ports Pinout Assignments
Composite Video (Analog) In and Out
Table A-6 shows the cable pinout assignments for the analog composite video in and out
ports (RCA jack, NTSC, or PAL formats).
Table A-6 Analog Composite Video Port Pinout Assignments
Pin Assignment
2 (sleeve) GROUND
3 (tip) DATA
Ground/return
Signal
Ground/return
Signal
Ground/return
Ground/return
Left signal
Right signal
Left signal
Right signal
Stereo line-level
audio LEFT IN/OUT
Stereo line-level
audio RIGHT IN/OUT
Stereo headphone
auxiliary
stereo line out 3.5mm
Mono microphone
in 3mm
PORT PLUG
