VM15 User Manual Description of Display and Symbols
35
Left Panel Components – STD2

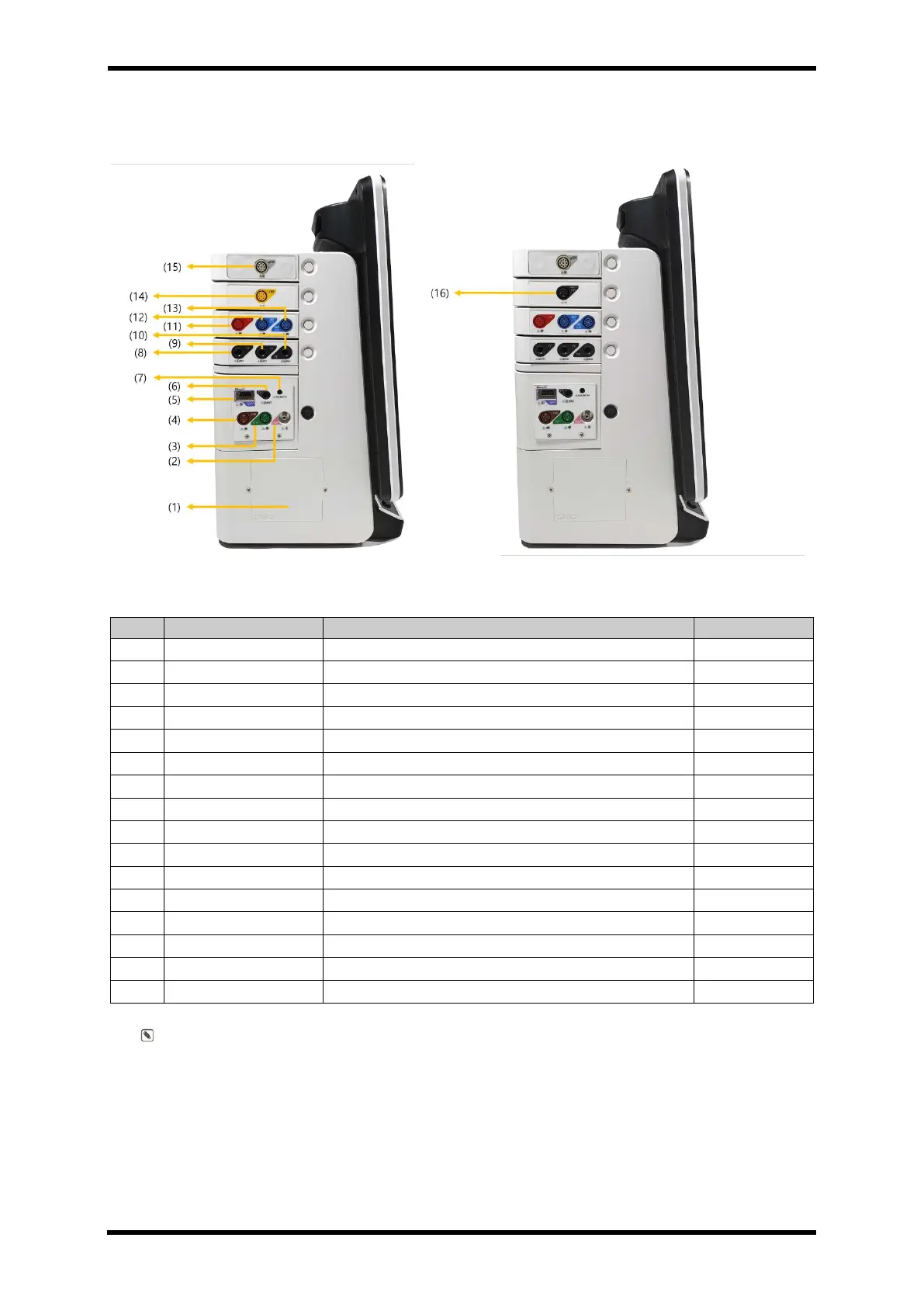

Figure 6-6 Left Panel (Microstream EtCO2) – STD2 Figure 6-7 Left Panel (Multi-Gas) -STD2
Table 6-6 Left Panel Description – STD2
No
Name
Function
Note
1
Battery Cover
Battery Cover (Standard: 3S2Px1ea, Option: 3S2Px2ea)
3S2P
2
NIBP Connector
Connector for Non-Invasive Blood Pressure measurement
Suntech-Option
3
ECG Connector
Connector for ECG measurement
4
EKG Connector
Connector for EKG measurement
Option
5
SpO2 Connector
Connector for SpO2 measurement
Masimo-Option
6
TEMP 1 Connector
Connector for TEMP1 measurement
7
ECG OUT Connector
Connector for ECG OUT measurement
Option
8
TEMP 2 Connection
Connector for TEMP2 measurement
Option
9
TEMP 3 Connection
Connector for TEMP3 measurement
Option
10
TEMP 4 Connection
Connector for TEMP4 measurement
Option
11
ICO Connection
Connector for Cardiac Output measurement
Option
12
IBP1/2 Connection
Connector for Invasive Blood Pressure measurement
Option
13
IBP3/4 Connection
Connector for Invasive Blood Pressure measurement
Option
14
EtCO2 Connection
Connector EtCO2 measurement
Option
15
qCON Connection
Connector qCON measurement
Option
16
Multi-Gas Connection
Connector Multi-Gas measurement
Option
Note: The option box operates normally no matter which floor it is mounted on.
