Xerox Phaser 6000 Service Manual

2-54 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Theory of Operation
completes feeding, the pickup assembly returns to its original position,
hooking the document stopper follower onto the ADF Top Cover to lock the
document stopper again.
• Pinch Roller Assembly
The pinch roller assembly is normally pressed against the direction of the
takeaway roller by spring pressure.
Documents are fed between the pinch rollers and the takeaway roller to the
CVT window by rotation of the takeaway roller.

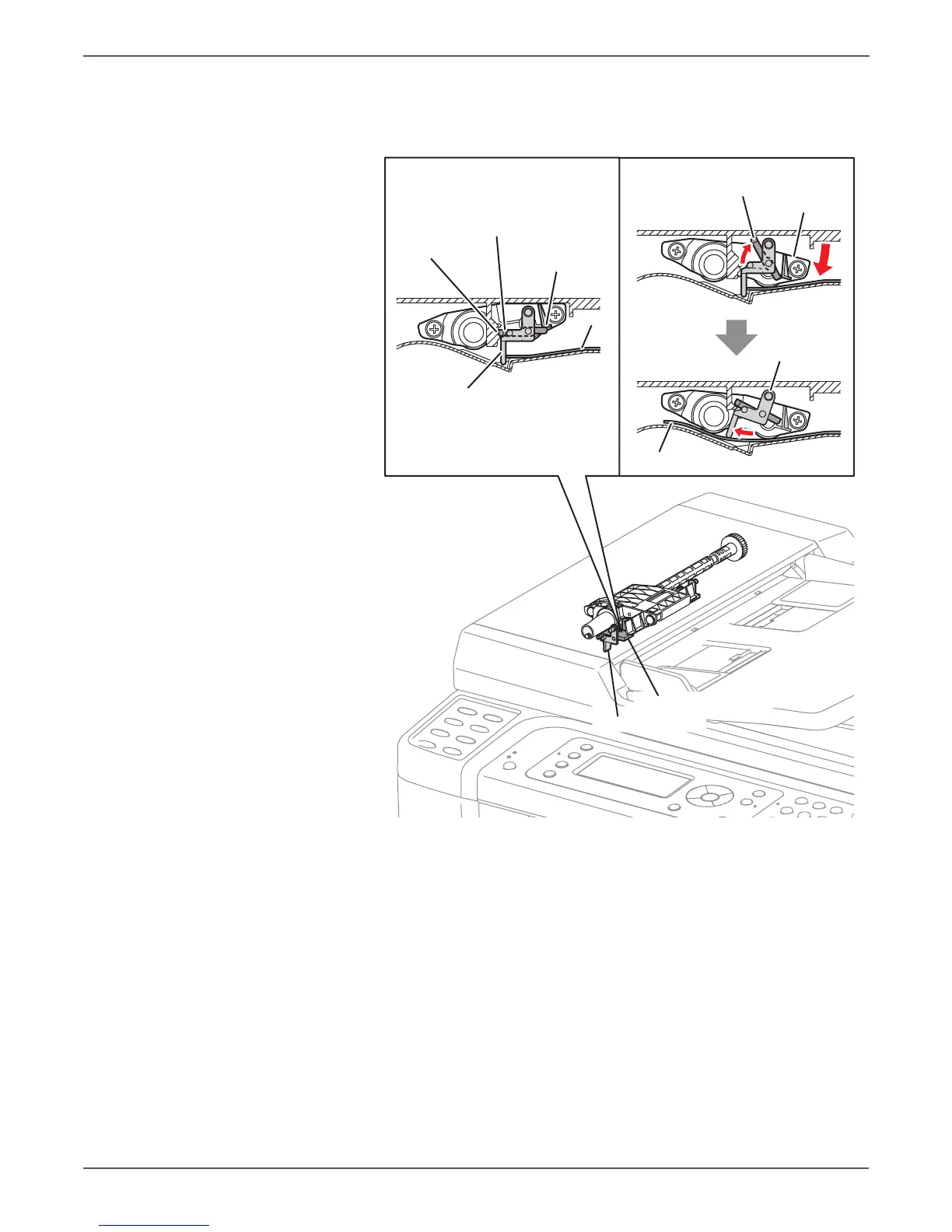

s6015-036
Document Stopper
Document Stopper Follower
Document Stopper Follower
Stopper
(Pickup Assembly)
ADF Top Cover
Pickup Assy
Paper
Paper
Document Stopper
When the document is loaded When the document is fed
Document Stopper
Document Stopper Follower
