Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 2-55
Theory of Operation

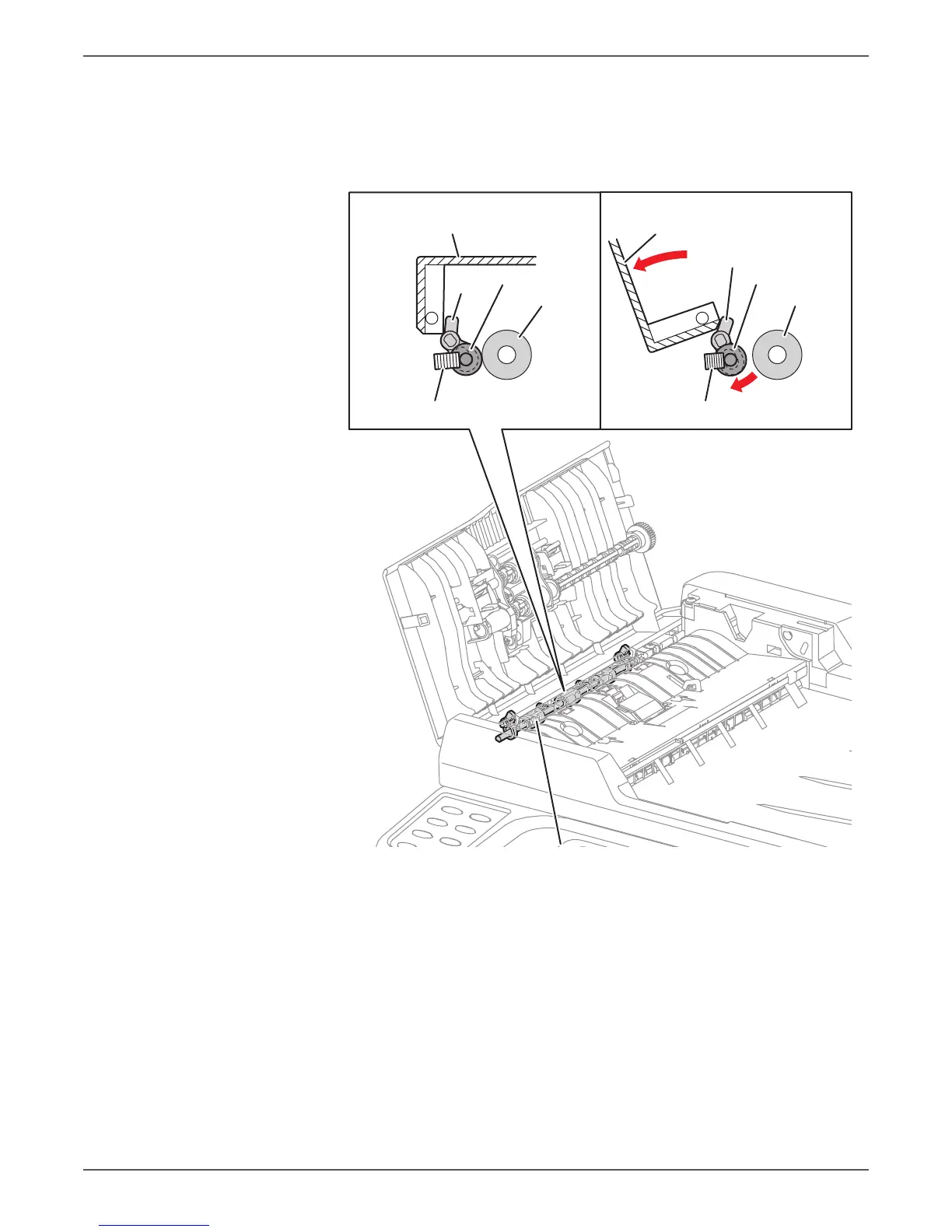

If a jam occurs between the pinch roller assembly and the takeaway roller, it is
hard to retrieve documents due to the high spring pressure of the pinch roller
assembly. In order to retrieve jammed documents, open the ADF Cover to
release the spring pressure. This results in enough clearance between the
pinch rollers and the takeaway roller to release the paper.
Takeaway Roller
Link
Spring
Pinch Roller
ADF Top Cover Closed ADF Top Cover Open
Takeaway Roller
Link
Spring
ADF Top Cover ADF Top Cover
Pinch Roller
Pinch Roller Assembly
s6015-038
