Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 4-45
Troubleshooting
Color Mode Sensor
1. Remove the Left Side Cover and main paper tray harness guide.
2. Enter Service Diagnostics (page 4-11).
3. Use the Up and Down Arrow buttons to select Printer > IOT Diag > DI-3.
4. Operate the actuator to check sensor function.
5. Confirm the number shown on the display increases every time the actuator is
operated.
6. Press the Stop button to stop the test.
7. Replace the main paper tray harness guide and Left Side Cover.

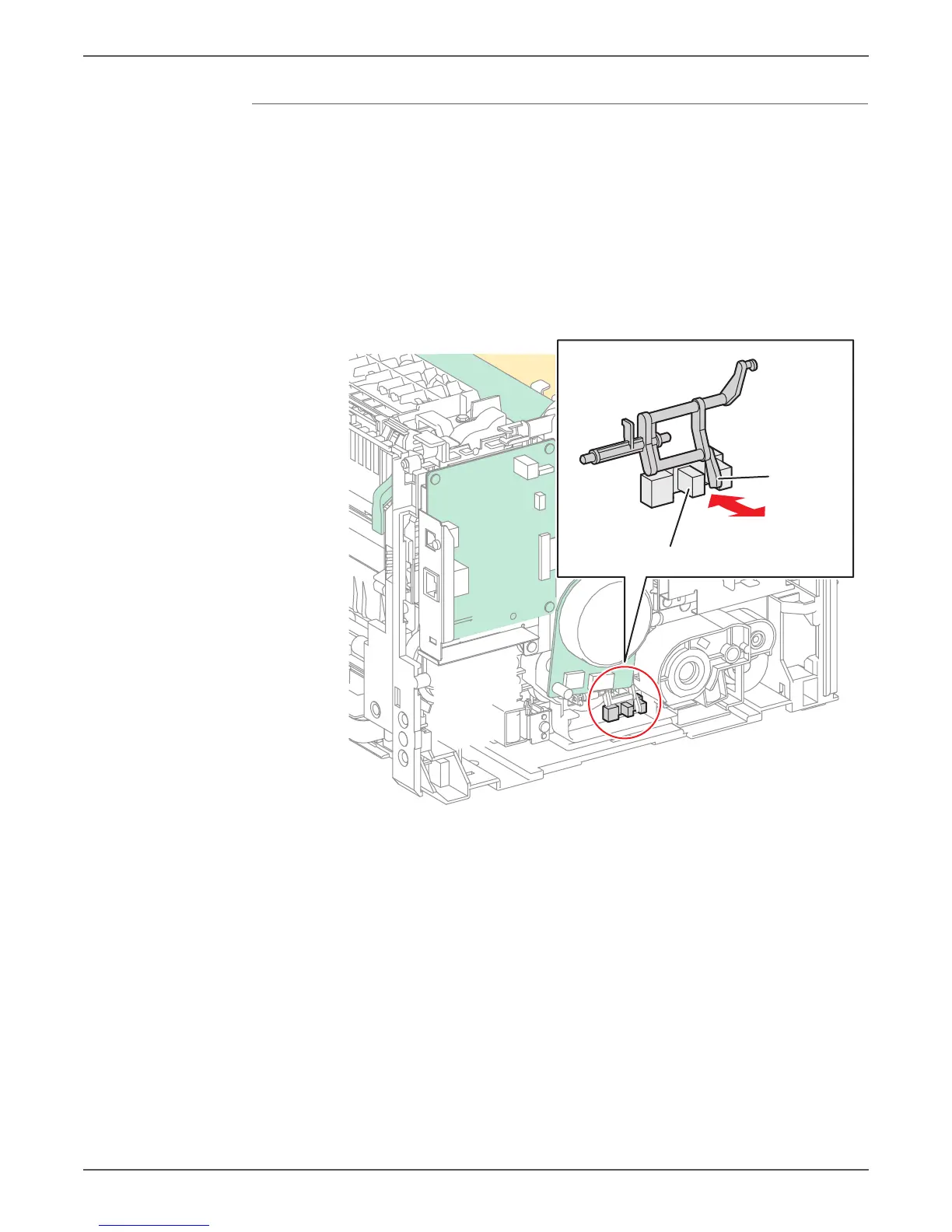

s6000-142
K Mode Switching Sensor
Actuator
