Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 4-53
Troubleshooting
Registration Clutch
The Registration Roller rotates when the Main Motor (FULL) and the Regi Clutch
tests are executed simultaneously.
1. Enter Service Diagnostics (page 4-11).
2. Open the Rear Door.
3. Close the Rear Door Interlock Switch.
4. Run the Main Motor Full and Registration Clutch tests: start the Main Motor
Full test, Printer > IOT Diag > Digital Output > DO-0, and then scroll down to
DO-7 and press OK.
5. Check that the Registration Roller rotates.
6. Press the Cancel button to stop the Registration Clutch test.
7. Use the Down Arrow to scroll to the motor test and press Cancel to stop the
motor test.
8. Open the Rear Door Interlock Switch.
9. Close the Rear Door.
s6015-079

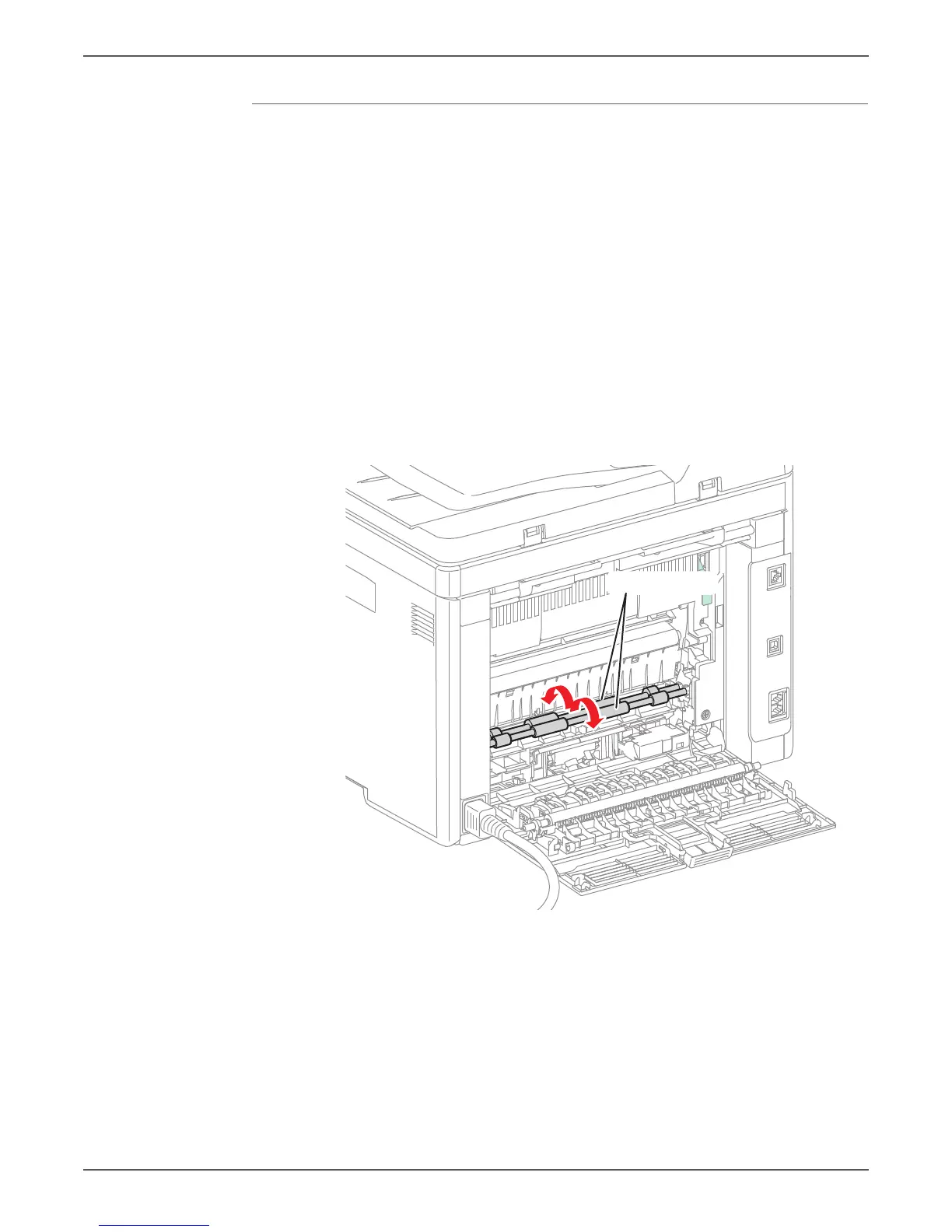

Registration Rollers
