8-62 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Service Parts Disassembly

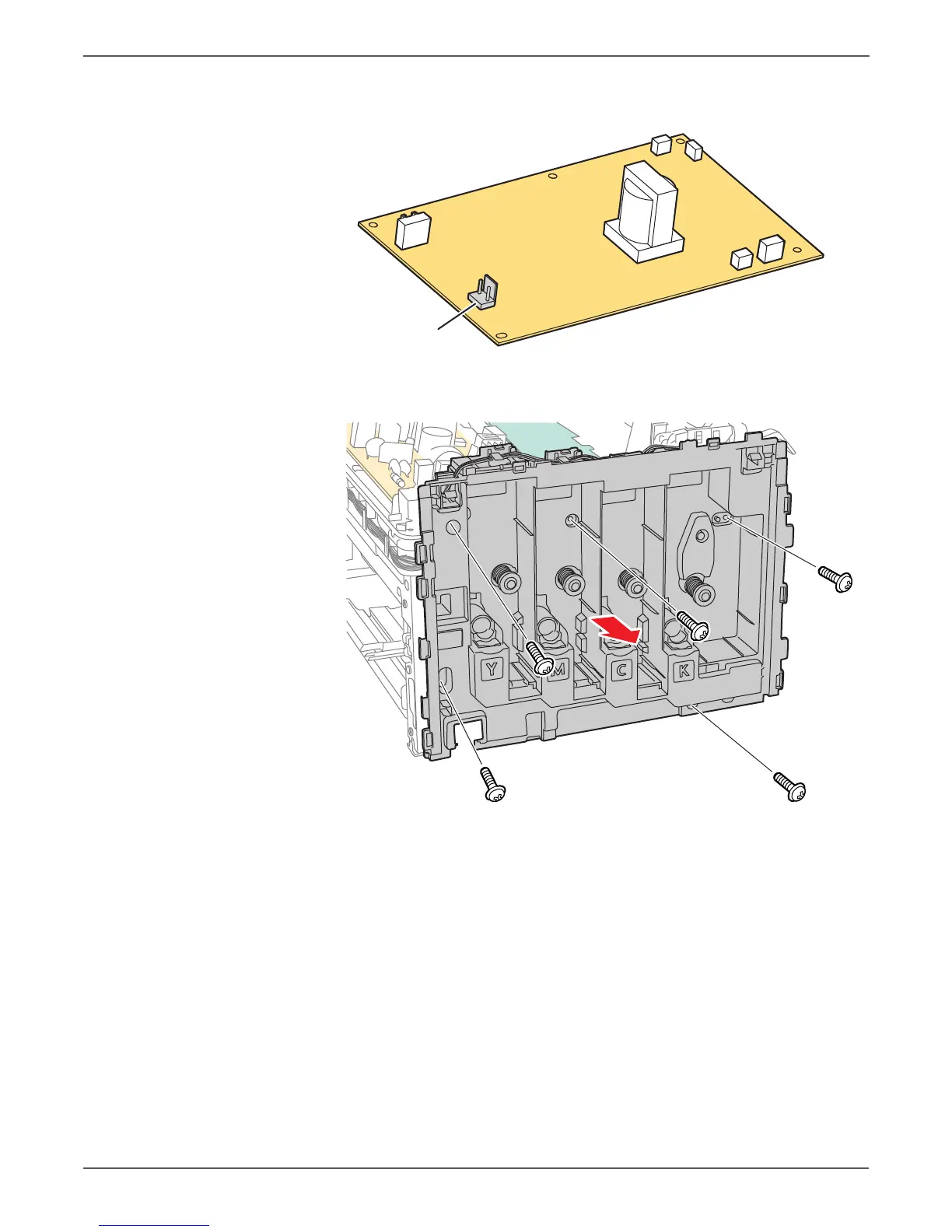

11. Disconnect P/J201 on the LVPS and release the harness from the harness
guide.
12. Remove the 5 screws (silver, tap, 8 mm), and remove the toner dispense frame
from the printer.
13. If present, remove the Wi-Fi Assembly (page 8-103).
14. Remove the Image Processor Board (page 8-114).
15. Remove the Feed Drive Assembly (page 8-91).
16. Remove the Registration Clutch (page 8-66).
17. Remove the Registration Pinch Roller (page 8-57).
P/J201
s6000-117
