REGI SNR 1. Power on the printer, and start the CE Diag Tool.
2. Click the CE Diag tab, and then select Digital Input.
3. Open the Rear Door.
4. Select the REGI SNR test, and click the OK button.
5. Manually operate the actuator to check whether the sensor
functions properly.
6. Click the Stop button to stop the test.
7. Close the Rear Door.
Test example:
[12:08]
Digital Input Mode = ENTRY
[12:08]
REGI SNR = LOW
STARTED = REGI SNR
[12:08]
REGI SNR = HIGH
STARTED = REGI SNR
[12:08]
REGI SNR = LOW
STARTED = REGI SNR
[12:08]
Digital Input Mode = EXIT
Test Procedure
s6000-144

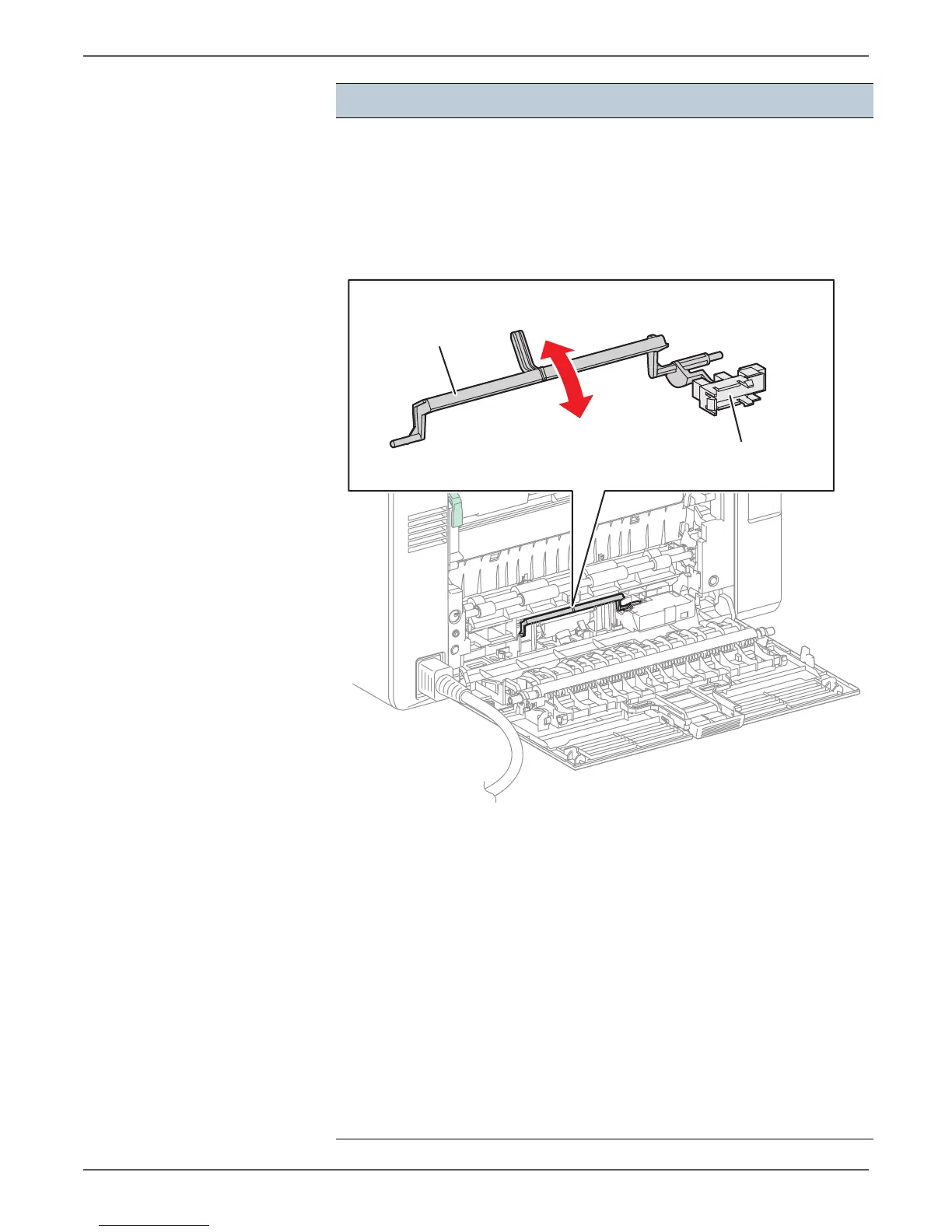

Registration Sensor
Actuator
