EXIT SNR 1. Remove the Top Cover (Phaser 6000/6010 page 8-11;
WorkCentre 6015 MFP page 8-22).
2. Power on the printer, and start the CE Diag Tool.
3. Select the EXIT SNR test, and click the OK button.
4. Manually operate the actuator to check whether the sensor
functions properly.
5. Click the Stop button to stop the test.
Test example:
[23:58]
Digital Input Mode = ENTRY
[23:58]
EXIT SNR = LOW
STARTED = EXIT SNR
[23:58
EXIT SNR = HIGH
STARTED = EXIT SNR
[23:58]
EXIT SNR = LOW
STARTED = EXIT SNR
[23:58]
Digital Input Mode = EXIT
Test Procedure
Paper

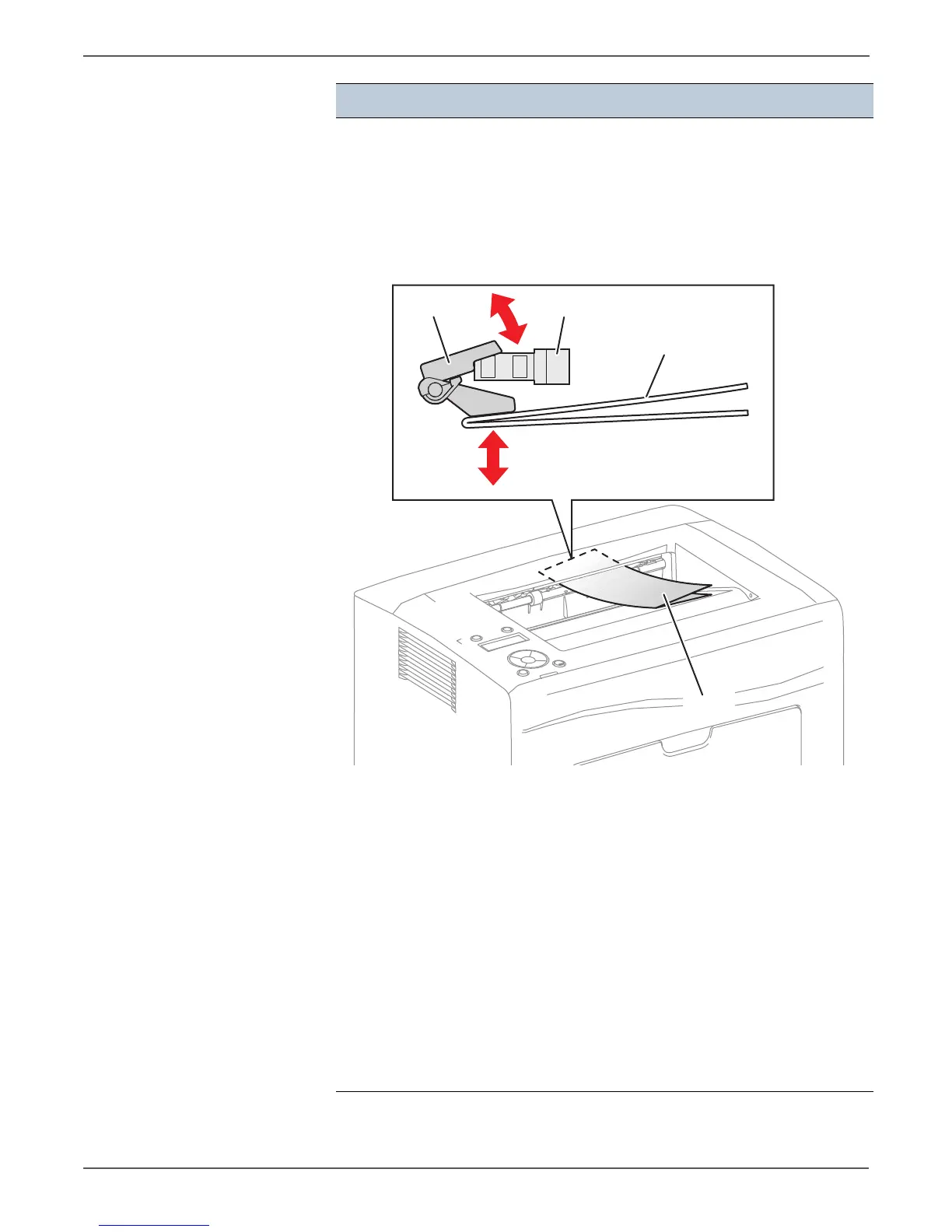

s6000-143
Exit Sensor Actuator
Paper
