K MODE SNR 1. Remove the Left Side Cover and MAIN PAPER TRAY HARNESS
GUIDE.
2. Power on the printer, and start the CE Diag Tool.
3. Click the CE Diag tab, and then select Digital Input.
4. Select the K MODE SNR test, and click the OK button.
5. Manually operate the actuator to check whether the sensor
functions properly.
5. Click the Stop button to stop the test.
Test example:
[14:08]
Digital Input Mode = ENTRY
[14:08]
K MODE SNR = LOW
STARTED = K MODE SNR
[14:08]
K MODE SNR = HIGH
STARTED = K MODE SNR
[14:08]
K MODE SNR = LOW
STARTED = K MODE SNR
[14:08]
Digital Input Mode = EXIT

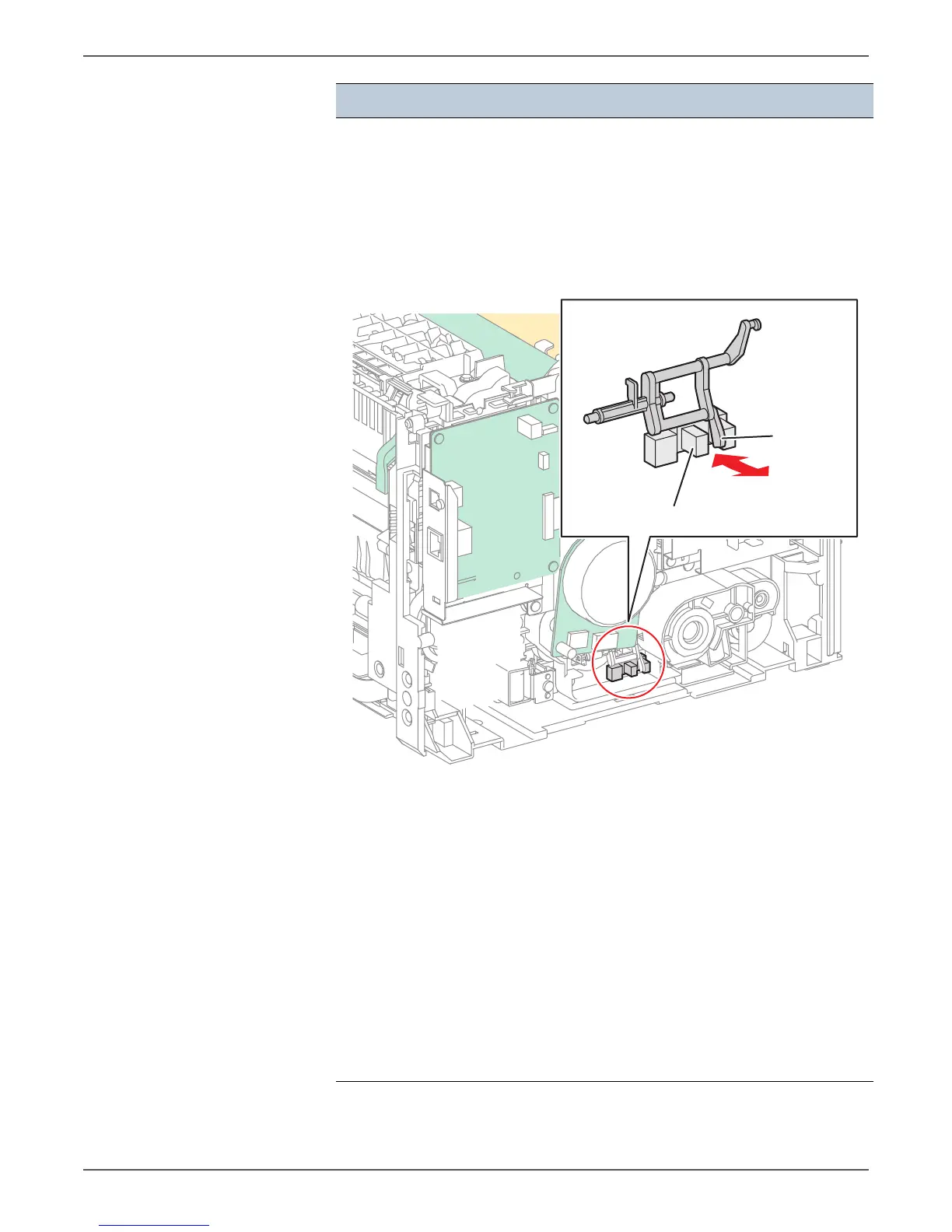

Test Procedure
s6000-142
K Mode Switching Sensor
Actuator
