Startup Procedure and
Test Run
3
3.6 Keypad Operation
YASKAWA ELECTRIC SIEP C710617 05F YASKAWA AC Drive GA700 Technical Manual 155
3.6 Keypad Operation
◆ Use the HOME Screen
The functions that can be controlled from the HOME screen and the content that is displayed are explained in the
following.
■ View Monitors Shown in Home Screen

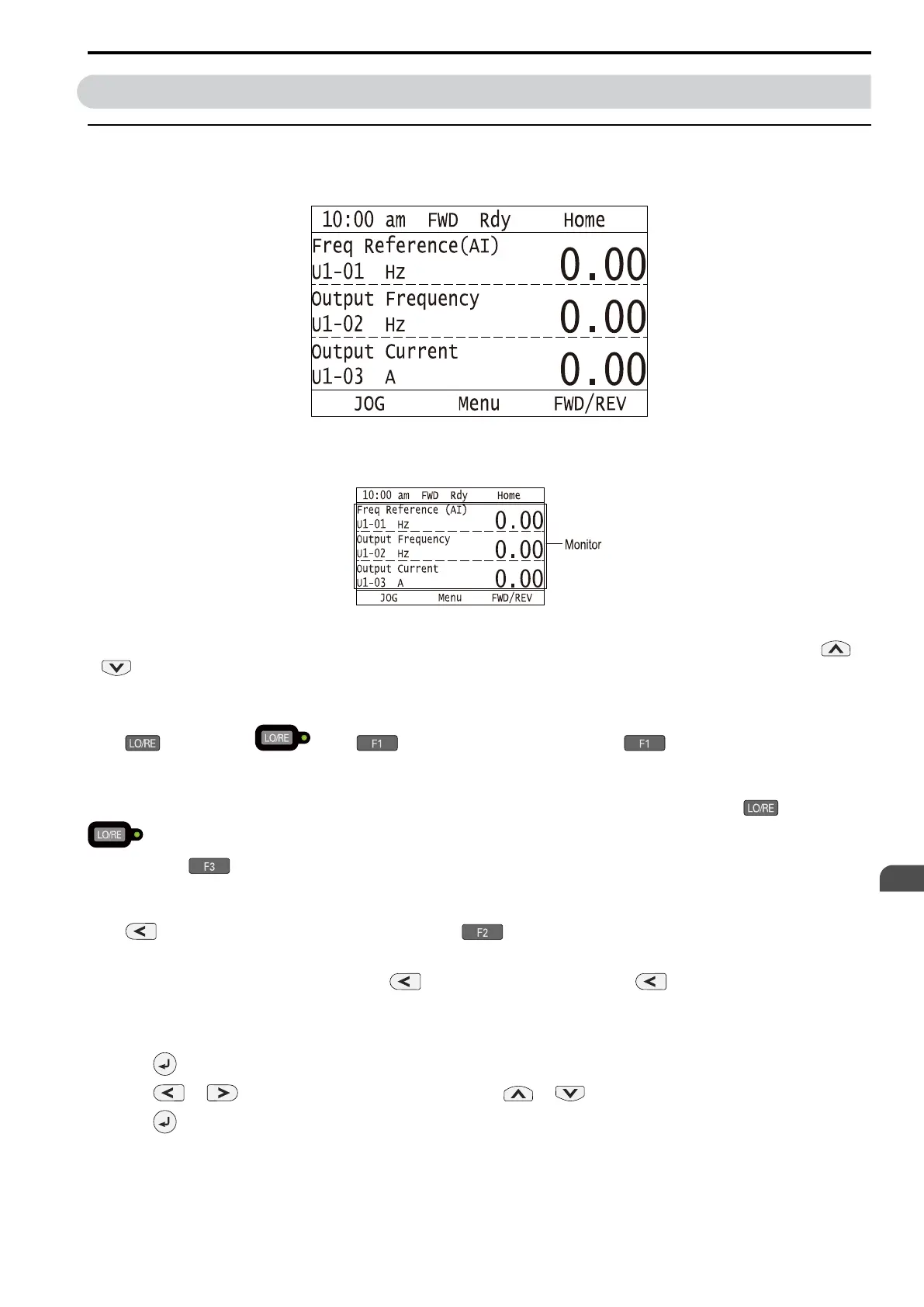

This figure shows monitor data in the data display area of the HOME screen.
• To change what the screen shows, change the setting for o1-40 [Home display selection].
• When o1-40 [Home display selection] is set to “Custom Monitor”, and there is more than one screen, use or
to switch between screens.
■ JOG Operation
Push to illuminate . Push (JOG) to run the motor. Release to stop the motor.
■ Change Motor between Forward/Reverse Run
You can change the direction of motor rotation when operating the drive from the keypad. Push to illuminate
.
Push and hold (FWD/REV) to toggle the direction of motor rotation between forward and reverse.
■ Show the Standard Monitor
Push to show the standard monitor (Ux-xx). Push (HOME) to go back to the HOME screen.
Note:
When a fault, minor fault, or an error occurs, push to show the content of the fault. Push again to show the standard monitor
(Ux-xx).
■ Change the Frequency Reference Value
1. Push to access the screen to change the frequency.
2. Push or to select the specified digit, then push or to change the value.
3. Push to confirm the change.
Note:
The HOME screen must show U1-01 [Frequency Reference] or you must set the keypad as the Run command source (REMOTE) to use
this function.
