2.12 Main Circuit Wiring
YASKAWA ELECTRIC SIEP C710617 05F YASKAWA AC Drive GA700 Technical Manual 81

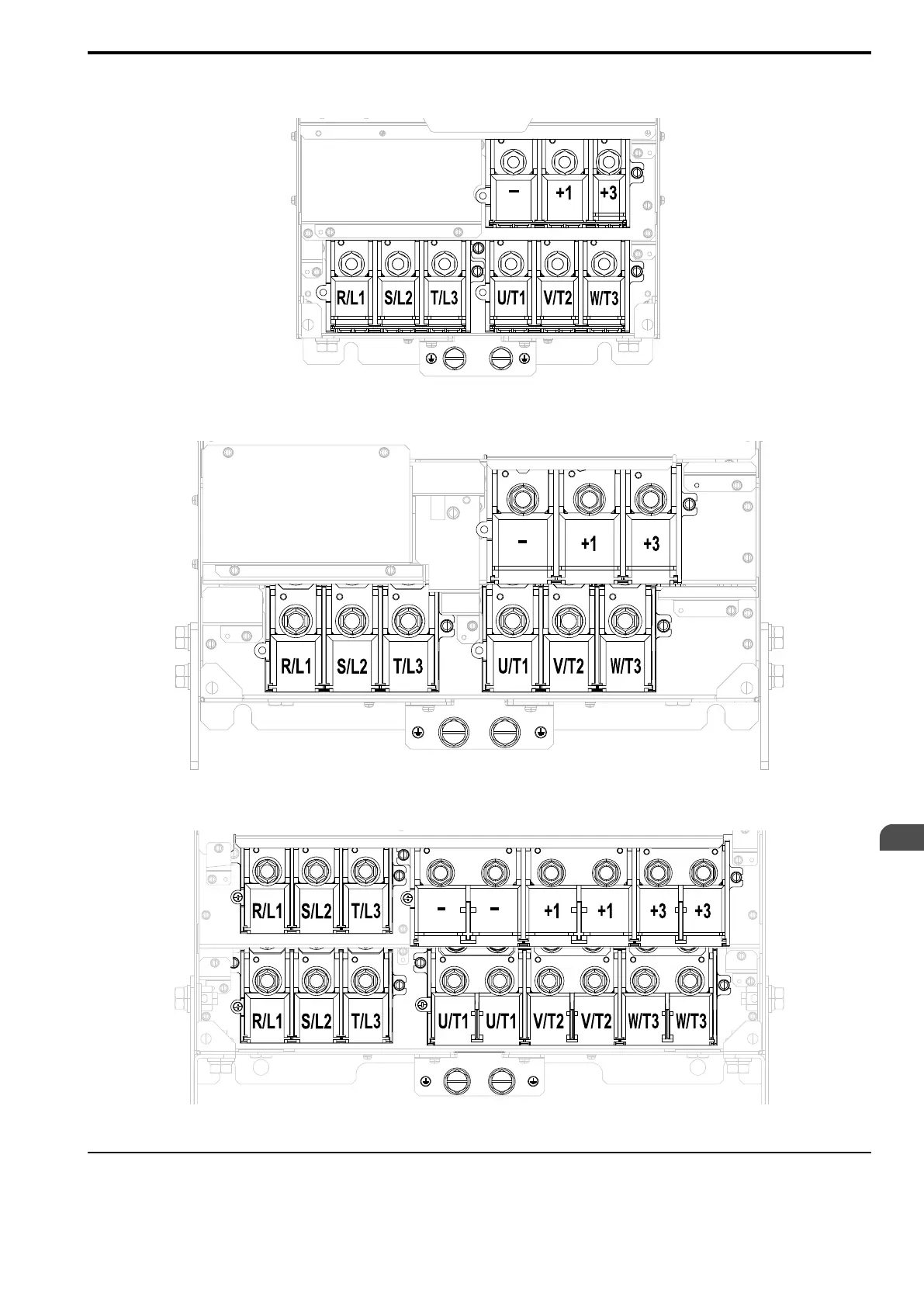

Figure 2.80 Configuration of Main Circuit Terminal Block
Figure 2.81 Configuration of Main Circuit Terminal Block
Figure 2.82 Configuration of Main Circuit Terminal Block
◆ Main Circuit Terminal Functions
Refer to Table 2.16 for the functions of drive main circuit terminals.
R/L1 T/L3
R/L1 T/L3
R/L1
T/L3
