3.2 Component Names and Functions
YASKAWA ELECTRIC SIEP C710617 05F YASKAWA AC Drive GA700 Technical Manual 141
3.2 Component Names and Functions

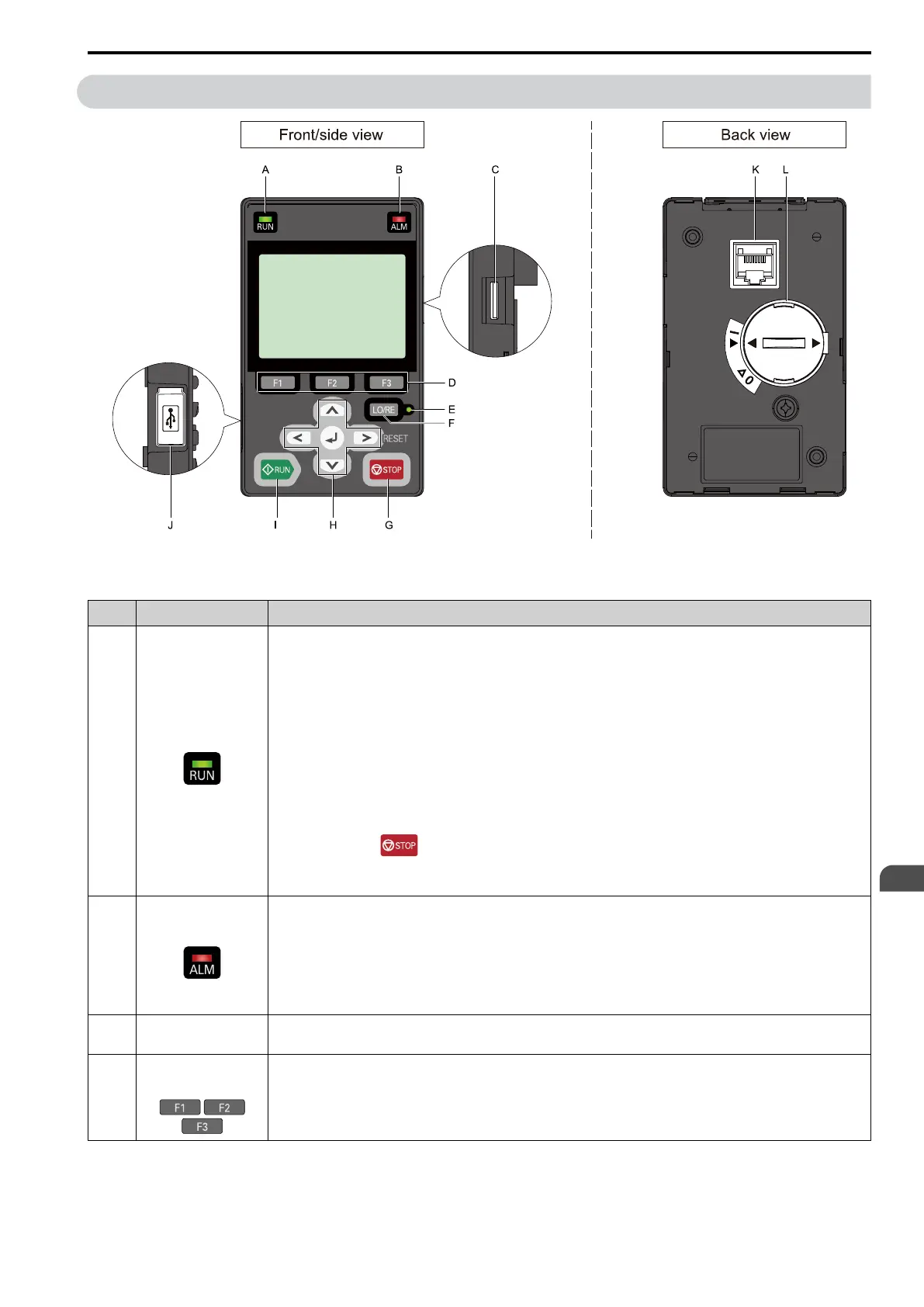

Figure 3.1 Keypad
Table 3.1 Keypad: Names and Functions
No. Name Function
A
RUN LED
Illuminates to show that the drive is operating the motor.
The LED turns OFF when the drive stops.
Flashes to show that:
• The drive is decelerating to stop.
• The drive received a Run command but the frequency reference is 0 Hz.
Flashes quickly to show that:
• The drive received a Run command from the Multi-Function Digital Input (MFDI) terminals and is
switching to REMOTE Mode while the drive is in LOCAL Mode.
• The drive received a Run command from the MFDI terminals when the drive is not in Drive Mode.
• The drive received a Fast Stop command.
• The safety function shuts off the drive output.
• The user pushed on the keypad while the drive is operating in REMOTE Mode.
• The drive is energized with an active Run command and b1-17 = 0 [Run Command at Power Up =
Disregard Existing RUN Command].
B
ALM LED
Illuminates when the drive detects a fault.
Flashes when the drive detects:
• Alarm
• An oPE parameter setting error
• A fault or alarm during Auto-Tuning
The light switches off when the drive is in normal operation. There is no fault or alarm.
C
microSD Card
Insertion Slot
The insertion point for a microSD card.
D
Function Keys
(F1, F2, F3)
The menu shown on the keypad sets the functions for function keys.
The name of each function is in the lower half of the display window.
