9.8 Knock-Out Hole Dimensions (UL Type 1)
YASKAWA ELECTRIC SIEP C710617 05F YASKAWA AC Drive GA700 Technical Manual 485
9.8 Knock-Out Hole Dimensions (UL Type 1)
◆ Models and Dimensions of Knock-Out Hole
Model Reference
2004 to 2042
4002 to 4023
485
2056
4031, 4038
486
2070, 2082
4044, 4060
486
2110
4075
487
2138
4089, 4103
487
2169
4140, 4168
488
2211 488
2257, 2313
4208 - 4296
489
2360
4371
489
■ 2004 to 2042, 4002 to 4023

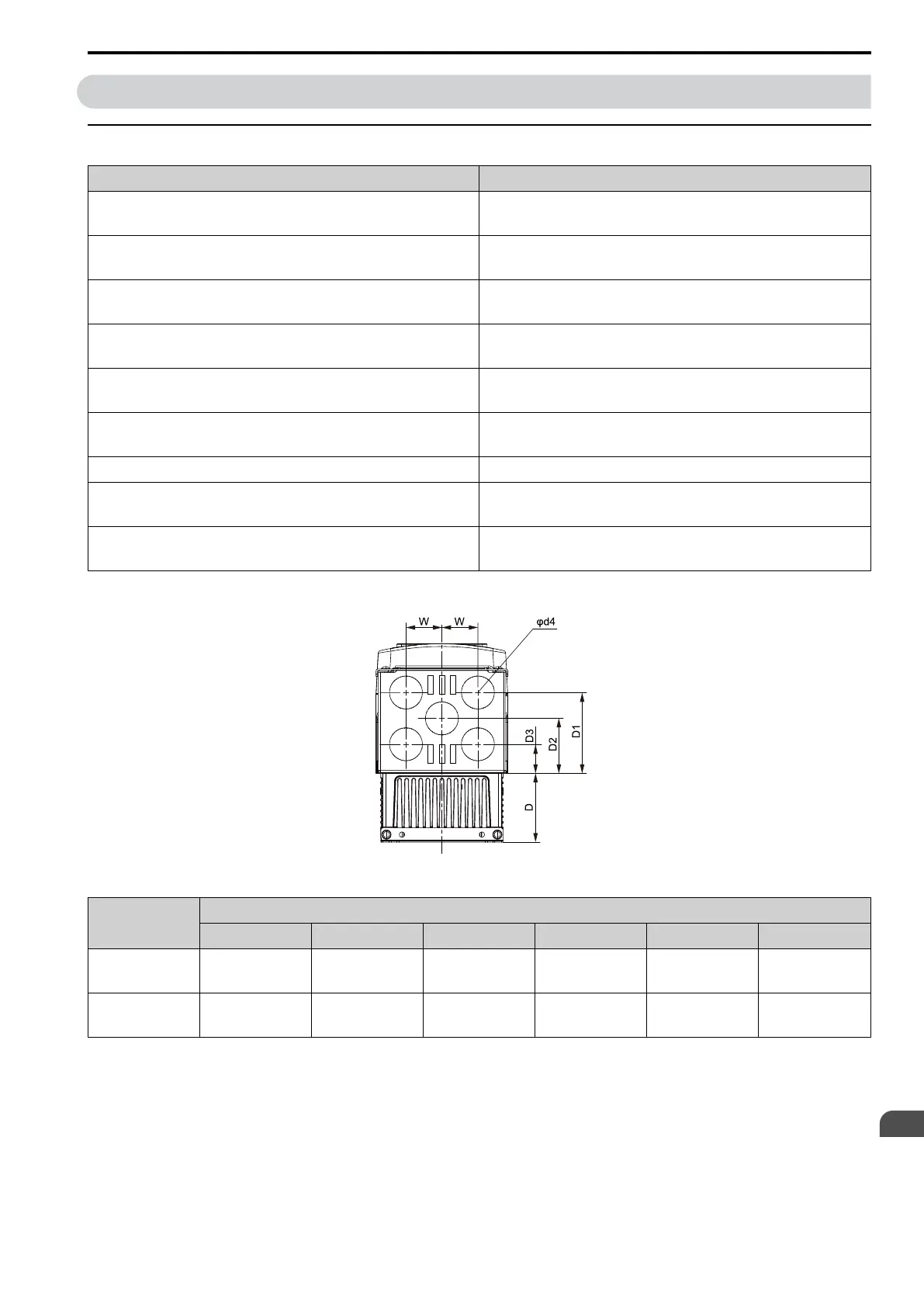

Figure 9.18 Knock-Out Dimensions Diagram 1 (Models: 2004 to 2042 and 4002 to 4023)
Model
Dimensions mm (in.)
D D1 D2 D3 W φd4
2004 to 2012
4002 to 4005
39
(1.54)
85
(3.35)
57.5
(2.26)
30
(1.18)
38.2
(1.50)
35
(1.38)
2018 to 2042
4007 to 4023
74
(2.91)
85
(3.35)
57.5
(2.26)
30
(1.18)
38.2
(1.50)
35
(1.38)
