9.8 Knock-Out Hole Dimensions (UL Type 1)
486 YASKAWA ELECTRIC SIEP C710617 05F YASKAWA AC Drive GA700 Technical Manual
■ 2056, 4031, 4038

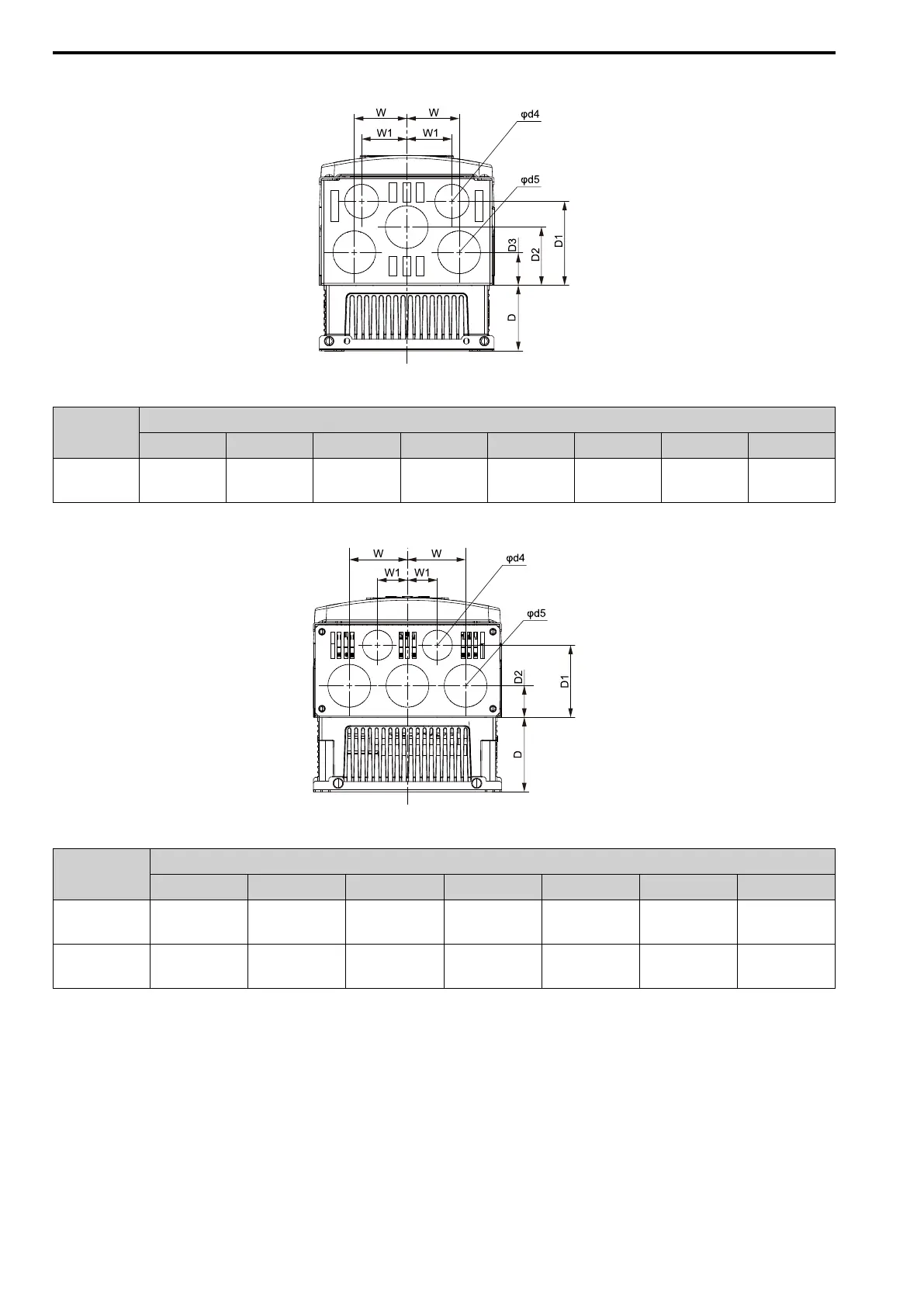

Figure 9.19 Knock-Out Dimensions Diagram 2 (Models: 2056, 4031, and 4038)
Model
Dimensions mm (in.)
D D1 D2 D3 W W1 φd4 φd5
2056
4031, 4038
67.5
(2.66)
86.5
(3.41)
60
(2.36)
34
(1.34)
54
(2.13)
46.5
(1.83)
35
(1.38)
44
(1.73)
■ 2070, 2082, 4044, 4060
Figure 9.20 Knock-Out Dimensions Diagram 3 (Models: 2070, 2082, 4044, and 4060)
Model
Dimensions mm (in.)
D D1 D2 W W1 φd4 φd5
2070, 2082
4044
87.2
(3.43)
84.3
(3.32)
36.8
(1.45)
68
(2.68)
35
(1.38)
35
(1.38)
50
(1.97)
4060
106.2
(4.18)
84.3
(3.32)
36.8
(1.45)
68
(2.68)
35
(1.38)
35
(1.38)
50
(1.97)
