2.9 Change the Drive Enclosure Type
The enclosure type of the drive is open chassis type (IP20). This section gives information about how to install
UL Type 1 protective covers to change the enclosure type to an enclosed wall-mounted type (UL Type 1).
Install the protective covers before you wire the drive.
Different drive models have different procedures to install the protective covers. Refer to Table 2.12 for more
information.
Table 2.12 Procedures to Install UL Type 1 Covers by Drive Model
Model Procedure Reference
2004 - 2082
4002 - 4060
Procedure A 55
2110
4075
Procedure B 56
2138
4089 - 4103
Procedure C 58
2169 - 2211
4140 - 4168
Procedure D 61
2257 - 2313
4208 - 4296
Procedure E 63
2360
4371
Procedure F 65
◆ Attach the Protective Cover (Procedure A)
■ Attach the Top Protective Cover
Align the hooks on the rear of top protective cover with the holes on the top of the drive to attach the top
protective cover.
Note:
• Attach the top protective cover and point the ( ) mark on the upper surface of the top protective cover away from the front of the
drive.
• Put the two small hooks on the rear of the top protective cover into the mounting holes near the back of the drive. Then push down on
the front side of the top protective cover to attach the cover.
A - Mark
B - Rear of top protective cover
C - Hooks
D - Front of drive

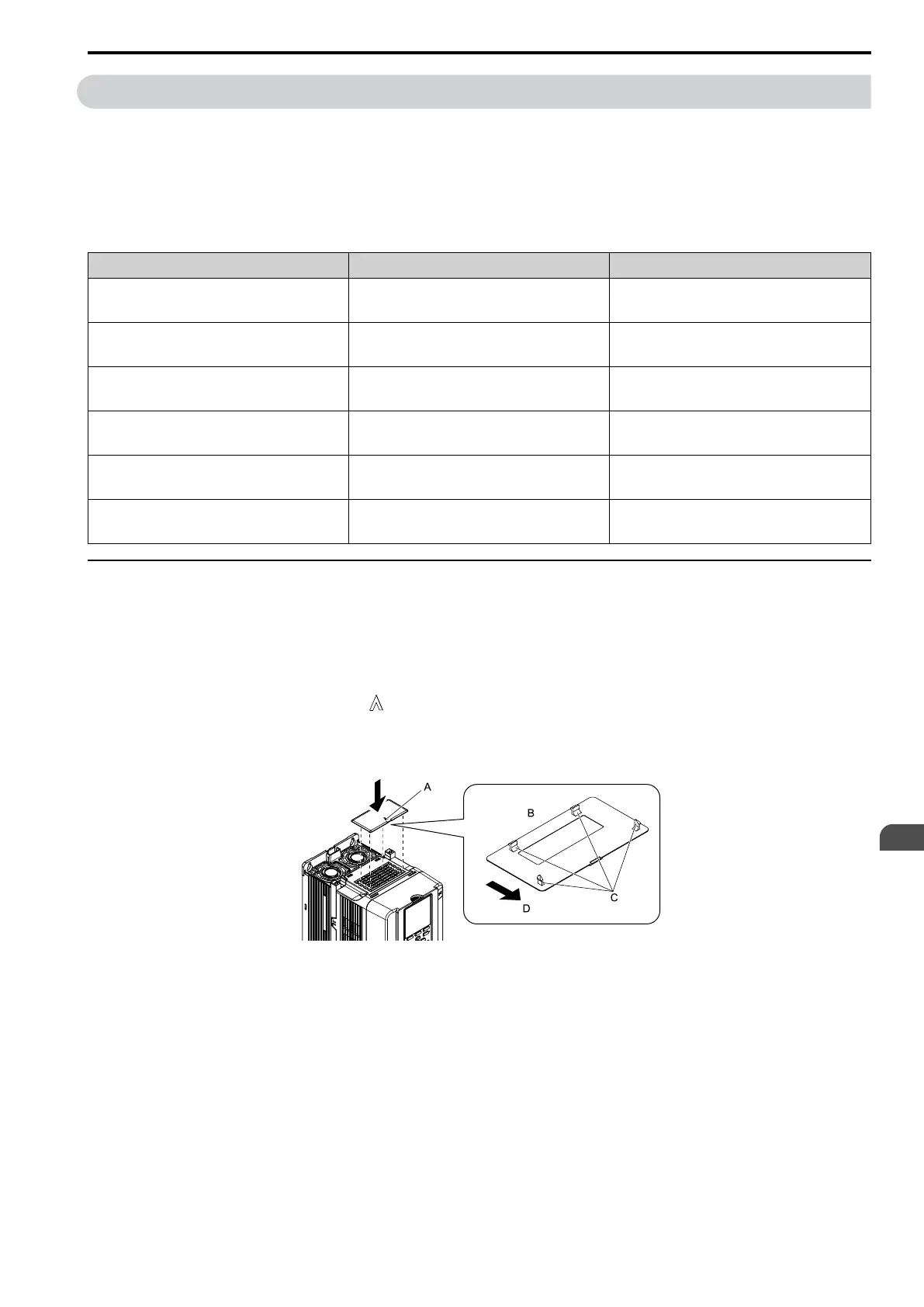

Figure 2.33 Attach the Top Protective Cover
■ Attach the Conduit Bracket
Remove the front cover.
