2.3 Installation Position and Distance
36 YASKAWA ELECTRIC SIEP C710617 05F YASKAWA AC Drive GA700 Technical Manual
2.3 Installation Position and Distance
Install the drive vertically for sufficient cooling airflow.
Note:
Contact Yaskawa or a Yaskawa representative for more information about installing drive models on their side.

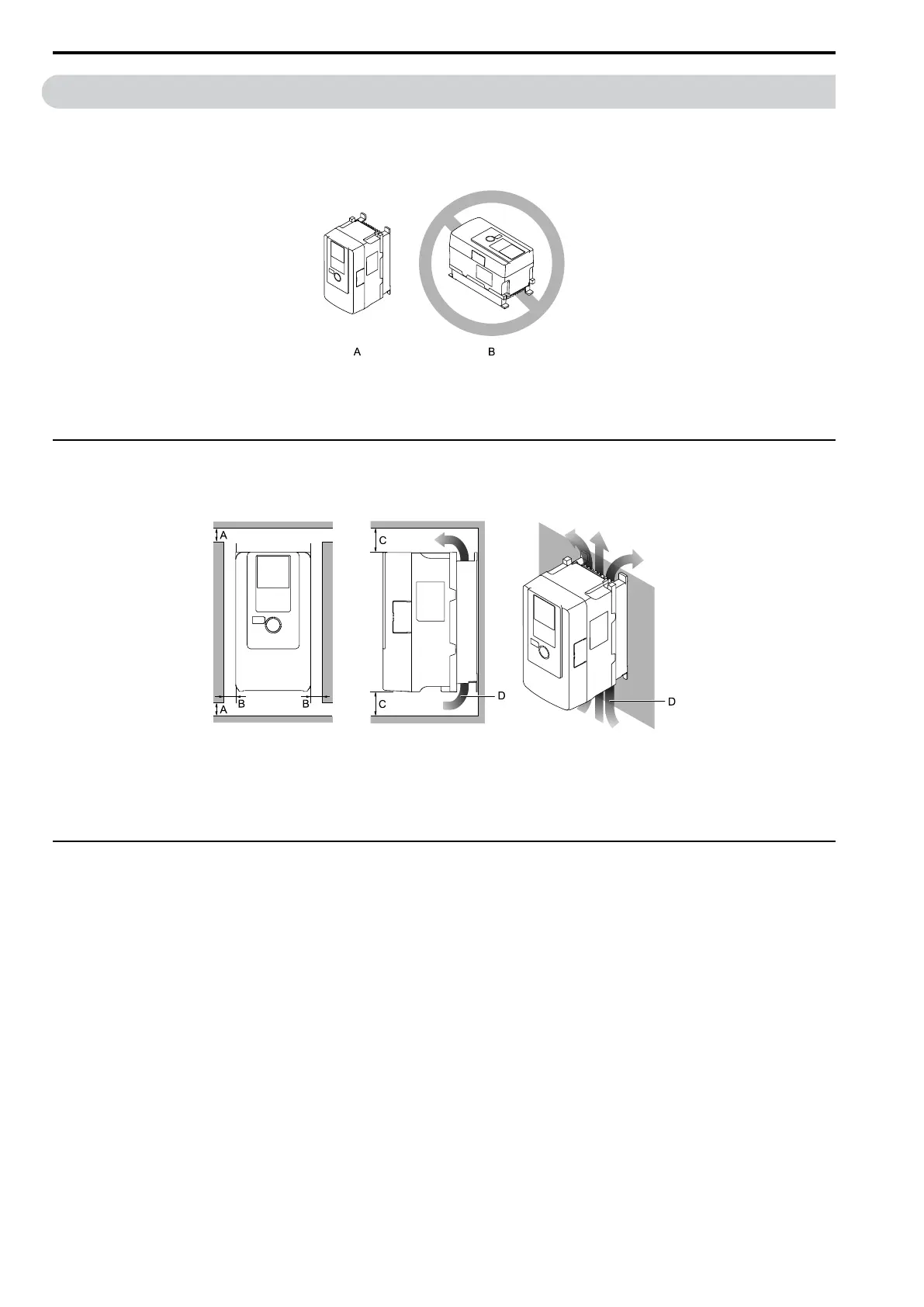

A - Vertical installation B - Horizontal installation
Figure 2.1 Installation Position
◆ Single Drive Installation
Use the clearances specified in Figure 2.2 to install the drive. Make sure that there is sufficient space for wiring
and airflow.
A - 50 mm (2 in.) minimum
B - 30 mm (1.2 in.) minimum on both
sides
C - 120 mm (4.7 in.) minimum above
and below
D - Airflow direction
Figure 2.2 Installation Distances for One Drive
◆ Install Drives Side-by-Side
Users can install drive models 2004xB to 2082xB and 4002xB to 4044xB side-by-side.
Install the drives as specified by Figure 2.3. Set L8-35 = 1 [Installation Method Selection = Side-by-Side
Mounting].
Derate the output current to align with the ambient temperature.
Install other drive models as specified by Figure 2.2
