2.9 Change the Drive Enclosure Type
58 YASKAWA ELECTRIC SIEP C710617 05F YASKAWA AC Drive GA700 Technical Manual
A - Conduit bracket 2

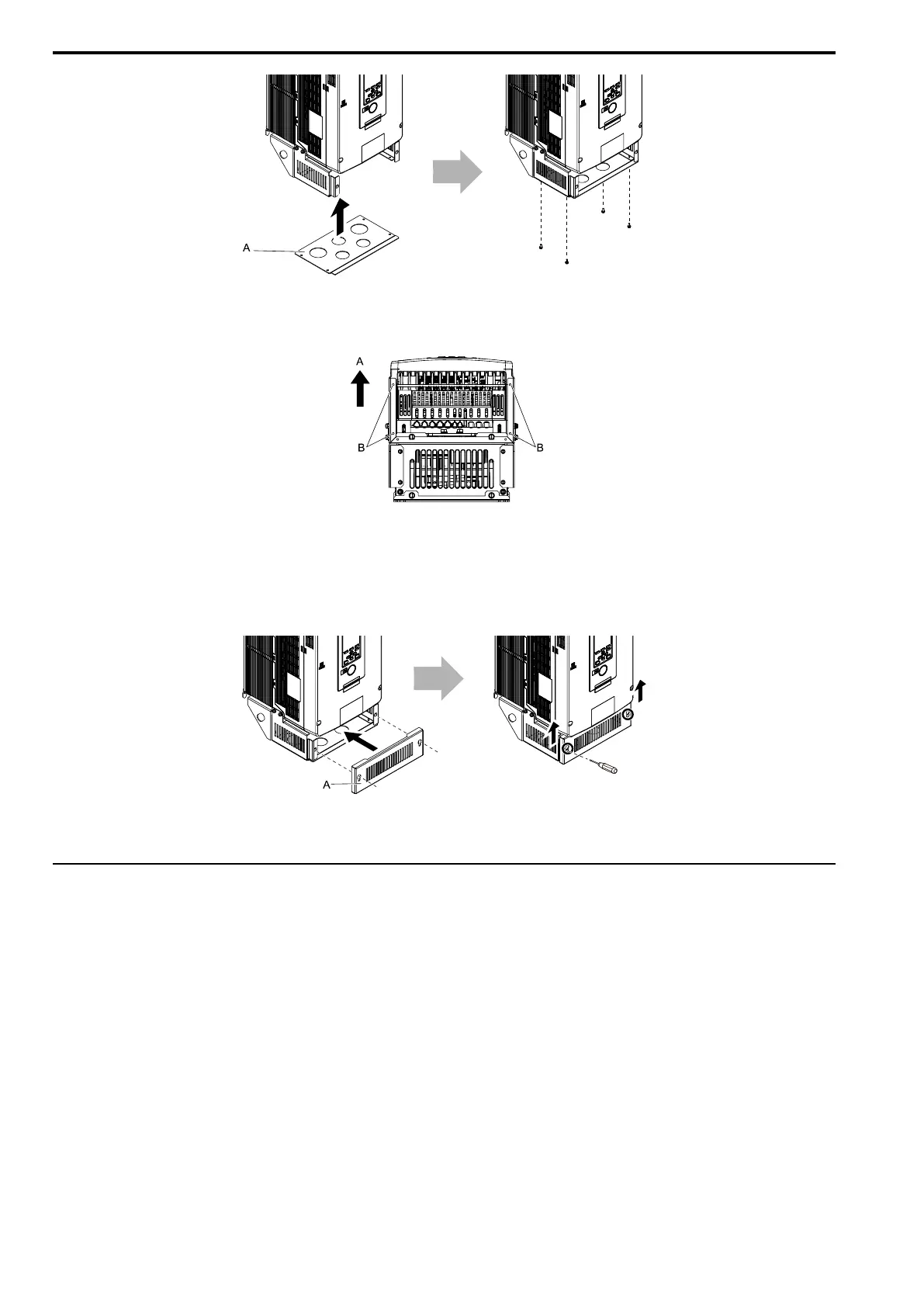

Figure 2.40 Attach Conduit Bracket 2
Figure 2.41 shows the locations of the screw holes on the bottom of conduit bracket 1.
A - Front of drive B - Screw holes on bottom
Figure 2.41 Locations of Screw Holes on Bottom of Conduit Bracket 1
3. Align the screw holes on conduit bracket 3 with the screw holes on conduit bracket 2.
Tighten the screws to a tightening torque of 0.98 N∙m to 1.33 N∙m (8.67 lb.∙in. to 11.77 lb.∙in.) and lift
bracket 3 a short distance.
A - Conduit bracket 3
Figure 2.42 Attach Conduit Bracket 3
◆ Attach the Protective Cover (Procedure C)
■ Attach the Top Protective Cover
Put the hooks on the back of the top protective cover into the hook holes on the top of the drive.
Move the cover forward a short distance and tighten the screws to a tightening torque of 0.98 N∙m to 1.33 N∙m
(8.67 lb.∙in. to 11.77 lb.∙in.) to attach the cover.
