9.8 Knock-Out Hole Dimensions (UL Type 1)
488 YASKAWA ELECTRIC SIEP C710617 05F YASKAWA AC Drive GA700 Technical Manual
■ 2169, 4140, 4168

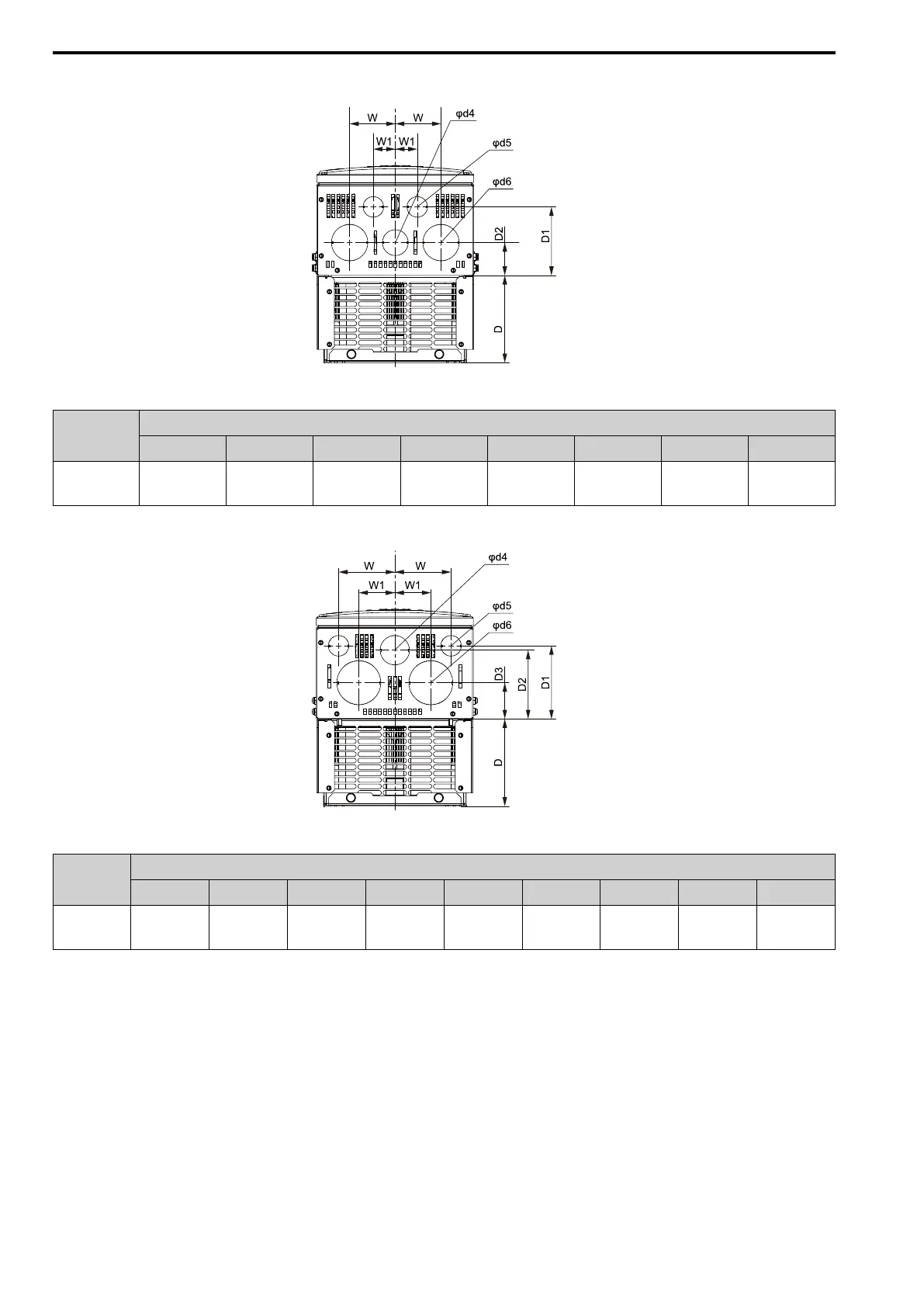

Figure 9.23 Knock-Out Dimensions Diagram 6 (Models: 2169, 4140, and 4168)
Model
Dimensions mm (in.)
D D1 D2 W W1 φd4 φd5 φd6
2169
4140, 4168
149
(5.87)
117
(4.61)
56
(2.20)
78
(3.07)
37.5
(1.48)
44
(1.73)
35
(1.38)
62
(2.44)
■ 2211
Figure 9.24 Knock-Out Dimensions Diagram 7 (Models: 2211)
Model
Dimensions mm (in.)
D D1 D2 D3 W W1 φd4 φd5 φd6
2211
149
(5.87)
124.8
(4.91)
117.3
(4.62)
61.8
(2.43)
96
(3.78)
61.5
(2.42)
50
(1.97)
35
(1.38)
75
(2.95)
