2.4 Moving the Drive
YASKAWA ELECTRIC SIEP C710617 05F YASKAWA AC Drive GA700 Technical Manual 39
3. Prepare the control panel for installation, then lower the drive.
Note:
When lowering the drive, stop before the drive touches the floor, then slowly lower it the remaining distance.
■ Horizontal Suspension
Put the drive on the ground horizontally. Connect wires to the 4 hanging brackets and use a crane to lift the drive.
NOTICE: If you attach a horizontal wire to the drive, the wire can scratch and damage the drive if touches the drive. Use a jig or
pad to prevent damage to the drive.
A - Hanging bracket (4)

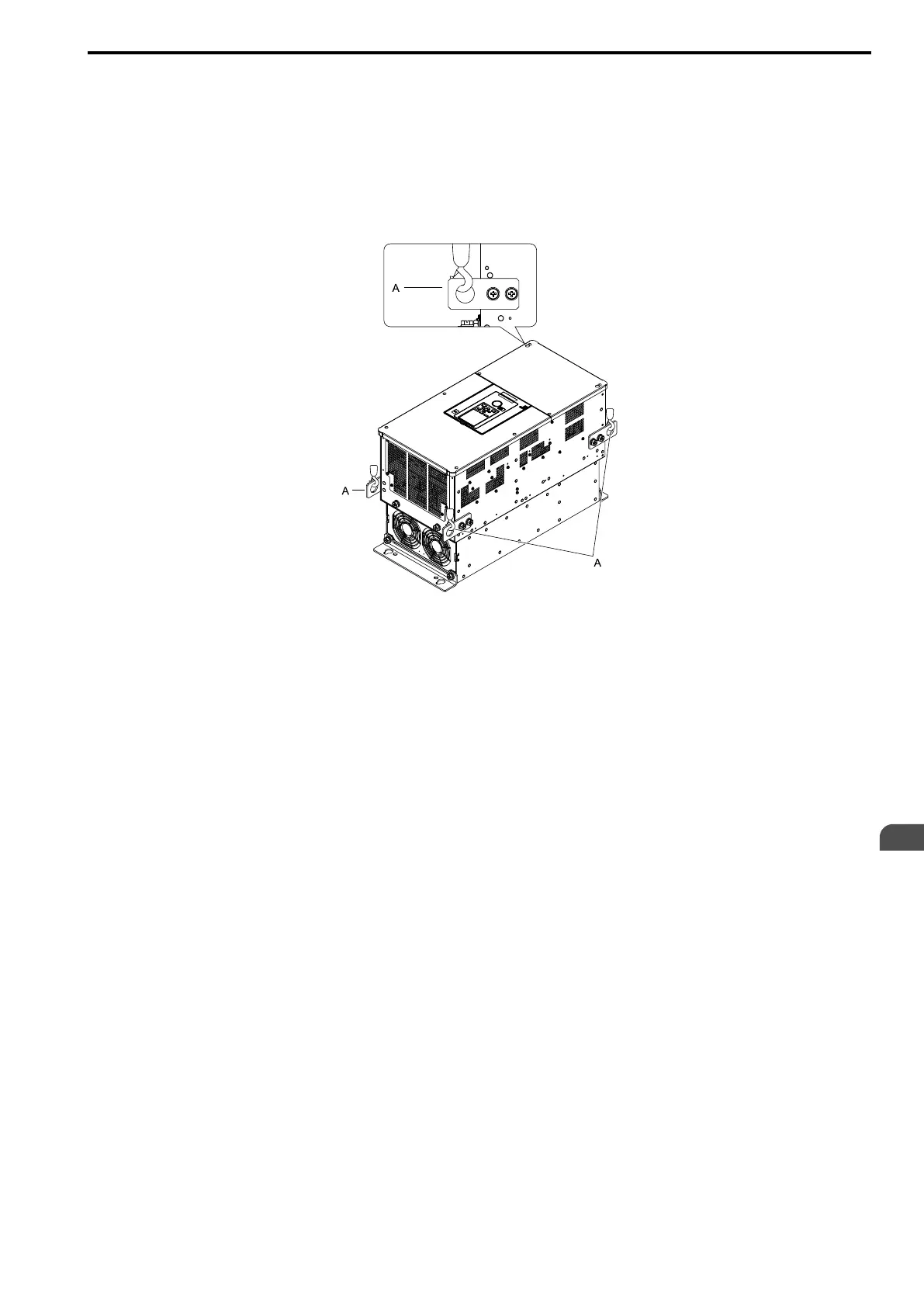

Figure 2.6 Horizontal Suspension
