7.4 Replace a Cooling Fan and Circulation Fan
424 YASKAWA ELECTRIC SIEP C710617 05F YASKAWA AC Drive GA700 Technical Manual
3. Loosen the fan unit screws and slide the slide panel to the left.
Note:
To remove the fan unit, it is only necessary to loosen the Screws B.
A - Screws A
B - Screws B
C - Slide panel

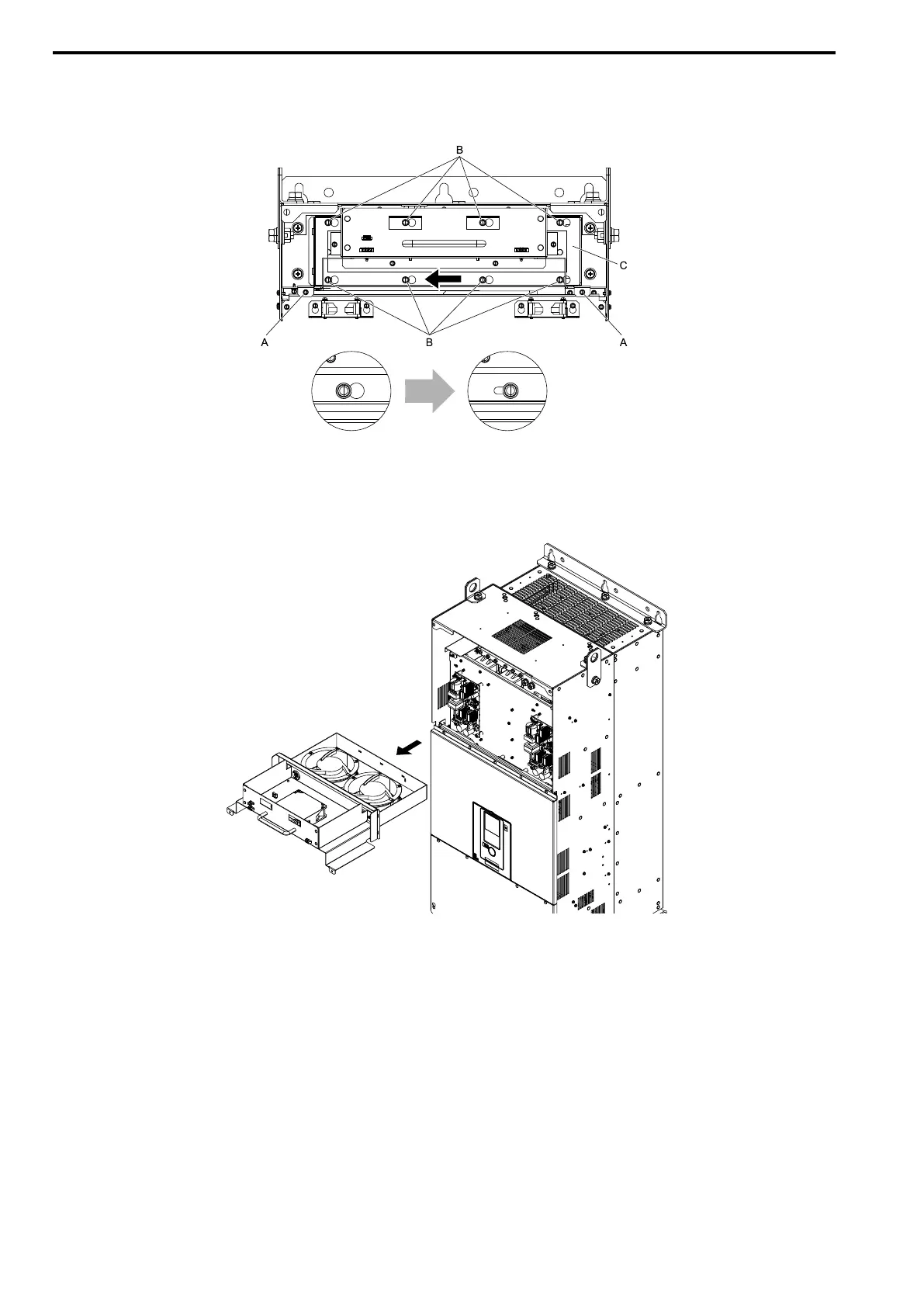

Figure 7.49 Slide the Slide Panel
4. Remove the fan unit and the slide panel at the same time.
Figure 7.50 Remove the Fan Unit
