6-27
IM 701450-01E
6
Triggers

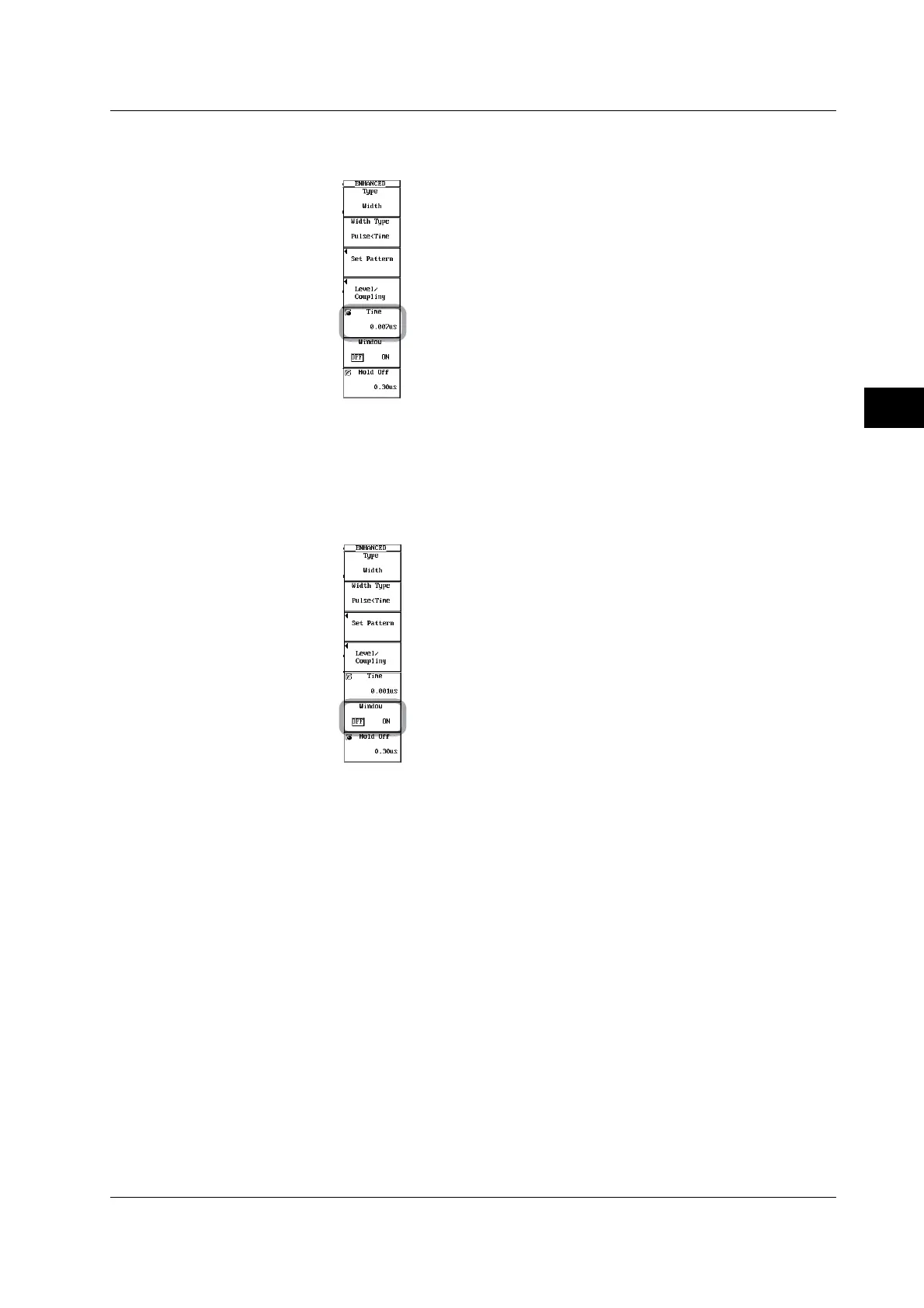

14. Turn the jog shuttle to set the determination time.
Pressing RESET resets the determination time to 0.001 us (0.002 us for Time2).
Setting the Window
15. Press the Window soft key to select ON or OFF.
• If set to OFF, a trigger is activated on the time over which the parallel pattern of the
status (H, L, or X) of each channel is met or not met.
• If set to ON, a trigger is activated on the time over which the parallel pattern of the
window condition (IN, OUT, or X) of each channel is met or not met.
Setting the Hold Off
16. Set the hold off time according to the procedures given in section 6.4.
6.11 Setting the Width (Pulse<Time, Pulse>Time, T1<Pulse<T2, and Time Out) Trigger (ENHANCED)
