10-8 IM 701450-01E

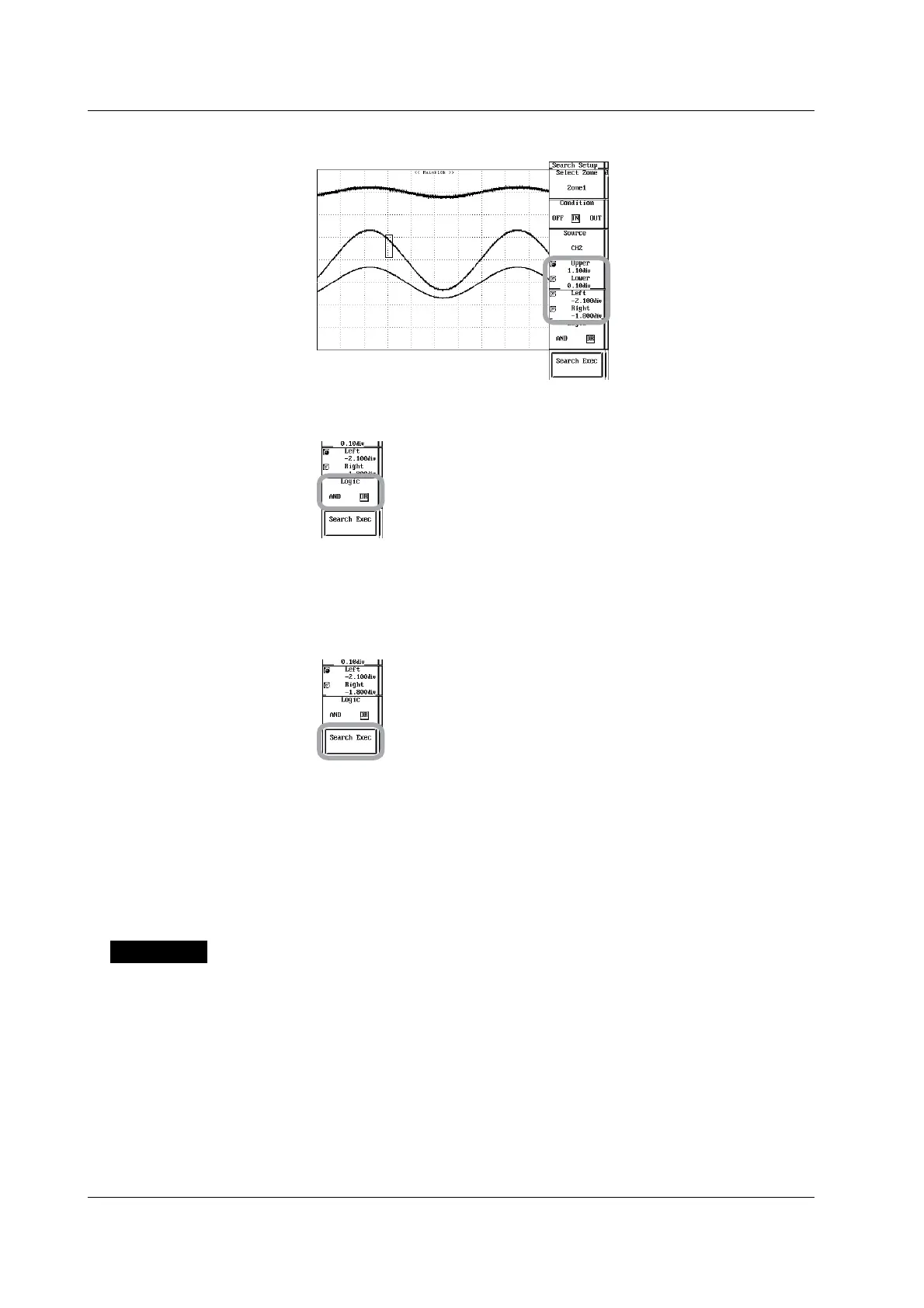

14. Repeat steps 5 to 13 to set Zone1 to Zone4.
Selecting the Search Logic
15. Press the Logic soft key to select AND or OR.
Executing/Aborting the Search
16. Press the Search Exec soft key. The search is executed, and the ,words
Search Exec change to Search Abort.
To abort the search, press the Search abort soft key. The search is aborted,
and the words Search Abort change to Search Exec.
Displaying the Searched Waveforms
17. Press the ESC to return to the HISTORY menu.
18. Display the waveform according to the procedure given in section 10.1.
The history map lists the record numbers and time stamps of the searched waveforms.
Resetting the Search Results
19. Set the Search Mode to OFF in the HISTORY menu, or turn OFF Zone1 to
Zone4 and execute the search. The search result is reset.
Explanation
This section explains the setup procedures for searching history waveforms that pass or
not pass a specified search zone.
Search Zone
You can register up to 4 search zones, zone1 to zone4. For each search zone, you can
set the following search conditions. You can also set whether to use AND or OR logic of
the search conditions of the four search zones to perform the search (see “Search Logic”
described later).
• Condition of the search target waveform in the search zone
• Search target waveform
• Search zone range
10.2 Searching the History Waveforms Using Zones (History Search)
