10-24 IM 701450-01E
Setting the Auto Scroll Conditions

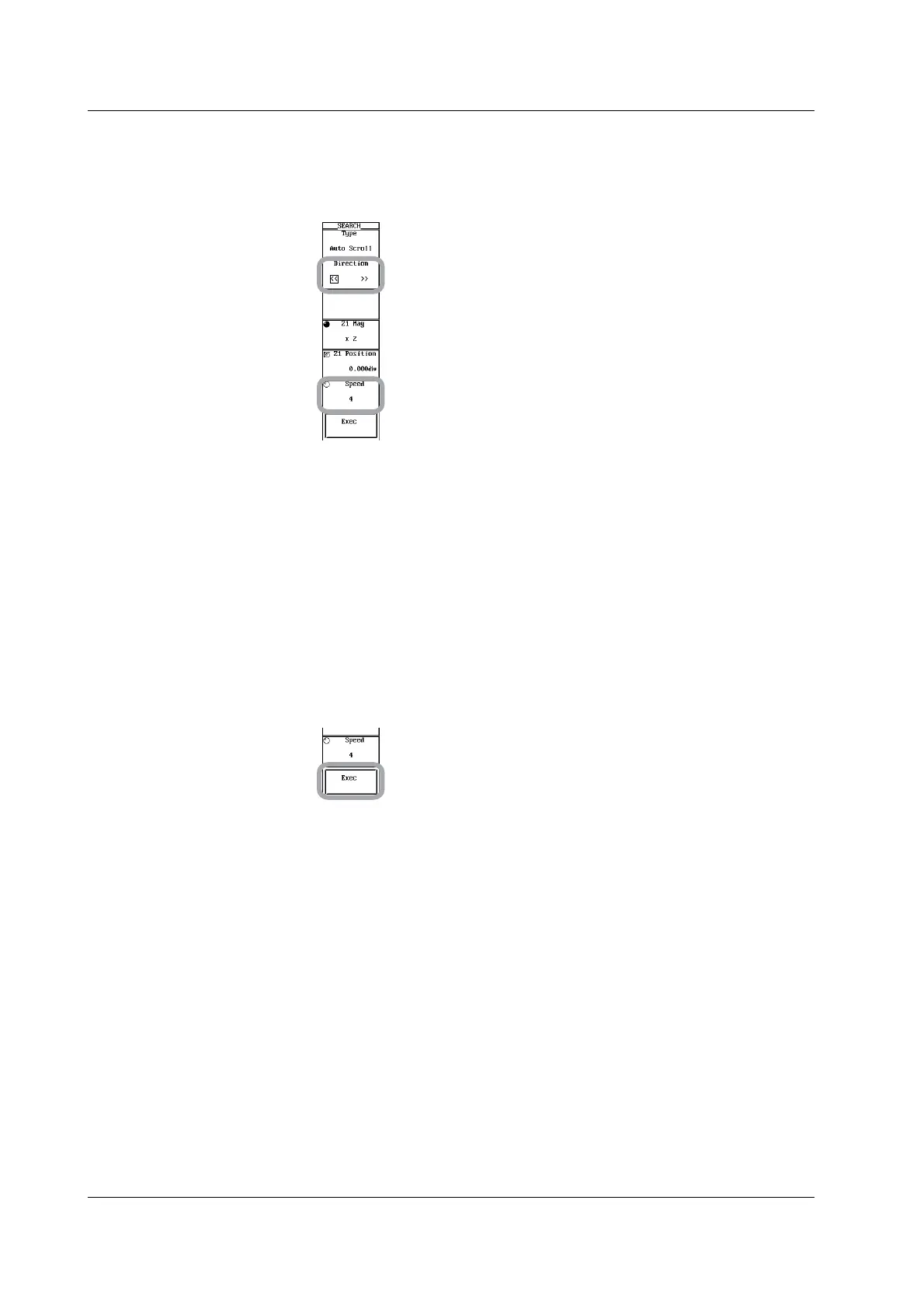

4. Press the Direction soft key to set the auto scroll direction to << or >>.
5. Press the Speed soft key.
6. Turn the jog shuttle to set the auto scroll speed.
Selecting the Window for Displaying the Auto Scrolled Waveform (Zoom
Waveform Display Frame)
7. The procedure is the same as step 12 on page 10-16.
Executing/Aborting Auto Scroll
8. Press the Exec soft key. Auto scroll is executed, and the word Exec changes to
Abort.
To abort auto scroll, press the Abort soft key. Auto scroll is aborted, and the
word Abort changes to Exec.
When auto scroll is executed, the zoom box moves in the direction selected in step 4,
and the zoom waveform display frame (the zoom waveform display frame selected in
step 12 if the zoom waveform display mode is Z1&Z2 or Main&Z1&Z2) shows the
waveform zoomed.
Changing the Zoom Rate and Zoom Position of the Detected Waveform
9. Change the zoom rate and zoom position of the waveform according to the
procedures given in section 8.4.
10.4 Searching Waveforms Using the Search and Zoom Function
