Analyzing and Searching Waveforms
Measuring Waveforms Using Angle Cursors (When X-Y Waveforms Are Not Displayed)
1. Press CURSOR. The CURSOR menu appears.
Selecting the “Degree” Angle Cursor
2. Press the Type soft key. The Type menu appears.
3. Press the Degree soft key.
Selecting the Waveform to Be Measured
4. Press the Trace soft key. The Trace menu appears.
5. Press the All, CH1 to CH8/4, Math1, Math2, Pod A, Pod B, or Pod A & Pod B
soft key to select the waveform to be measured.
• On the DL7440, select All, CH1 to CH4, Math1, Math2, Pod A, Pod B, or Pod A & Pod
B. Math1, Math2, Pod A, Pod B, and Pod A & Pod B appear when you press the Next
(1/2) soft key.
• On the DL7480, Select All, CH1 to CH8, Math1, Math2, Pod A, Pod B, or Pod A & Pod
B. CH5, CH6, CH7, CH8, and Math1 appear when you press the To Page 2 soft key.
Math2, Pod A, Pod B, and Pod A & Pod B appear when you press the To Page 3 soft
key.

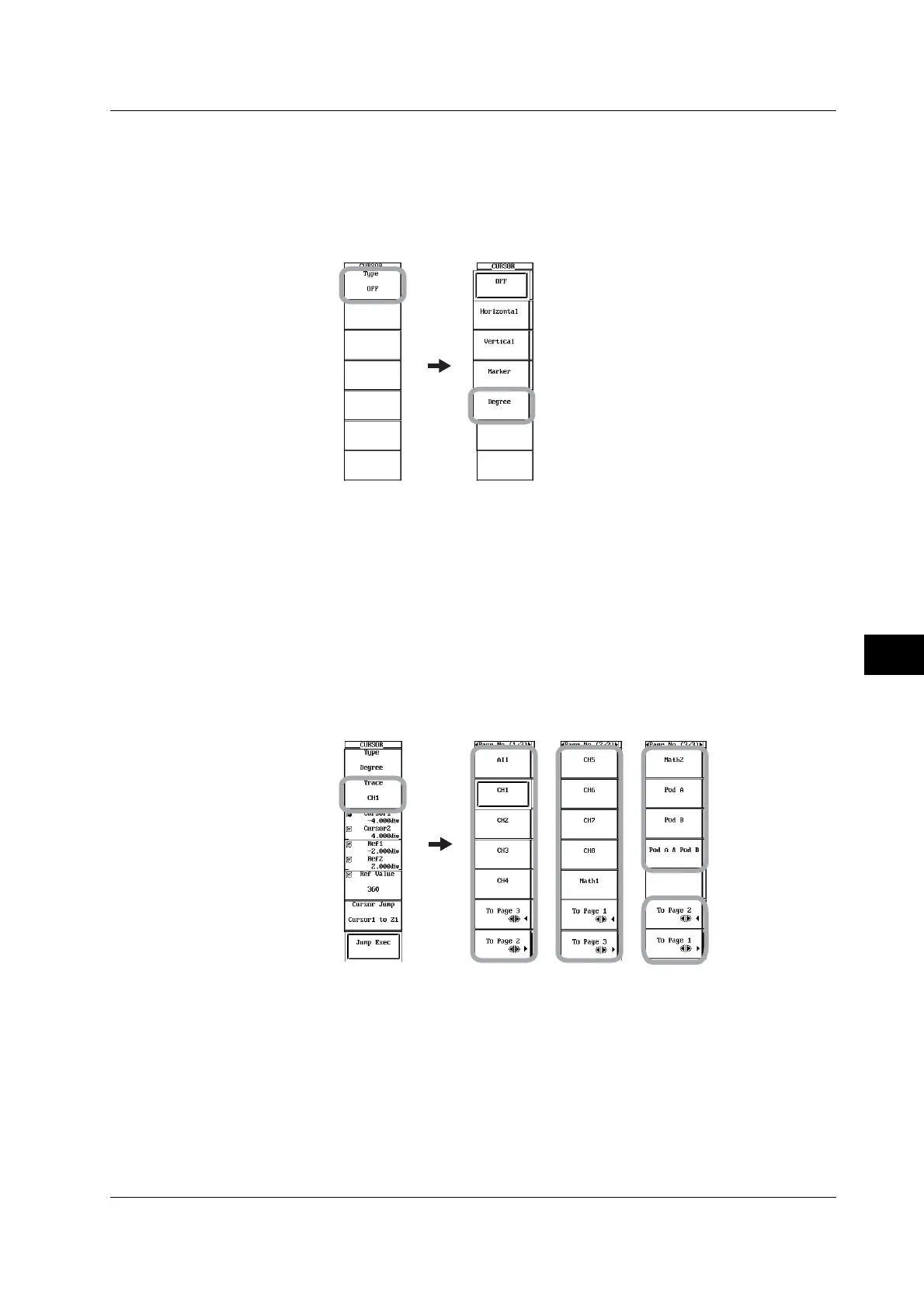

Trace menu on the DL7480
10.5 Making Cursor Measurements
To Next Page
