10-43
IM 701450-01E
10
Analyzing and Searching Waveforms
Combining of the Bit Data
The data of Pod A and Pod B can be combined and handled as 16-bit data.
Handling of the OFF Bit
• In binary notation, a dash is displayed at the bit.
• In hexadecimal notation, the value is displayed as though the bit does not exist.

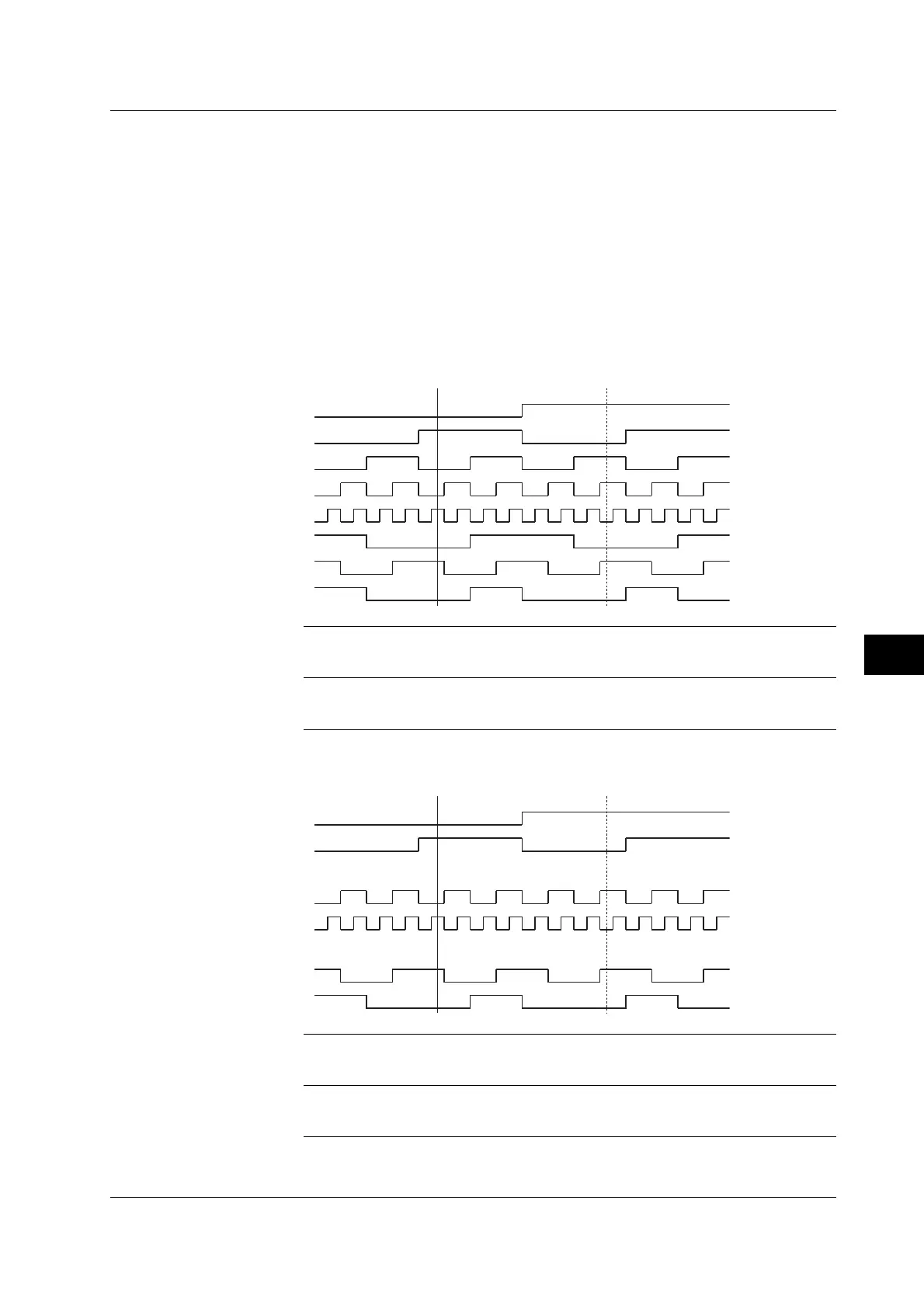

Measurement Example of Logic Input
The values of measurement parameters Y1 and Y2 when the logic input is measured
using vertical cursors are as follows.
• When Pod A or Pod B Is Being Measured by Itself and No OFF Bits Exist
0
Cursor 1 Cursor 2
1
2
3
4
5
6
7
When the read direction of the bit data is A0 -> A7, B0 -> B7
Binary Y1:01001010 Y2:10110010
Hexa Y1:4A Y2:B2
When the read direction of the bit data is B7 -> B0, A7 -> A0
Binary Y1:01010010 Y2:01001101
Hexa Y1:52 Y2:4D
• When Pod A or Pod B Is Being Measured by Itself and OFF Bits Exist
Cursor 1 Cursor 2
0
1
3
4
6
7
When the read direction of the bit data is A0 -> A7, B0 -> B7
Binary Y1:01-01-10 Y2:10-10-10
Hexa Y1:16 Y2:2A
When the read direction of the bit data is B7 -> B0, A7 -> A0
Binary Y1:01-10-10 Y2:01-01-01
Hexa Y1:1A Y2:15
10.5 Making Cursor Measurements
To Next Page
